Cable Coiling & Binding

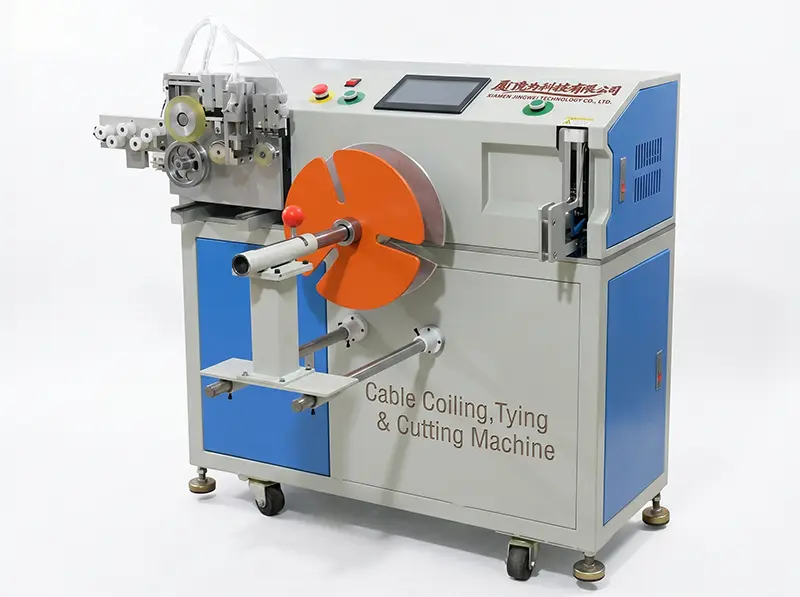

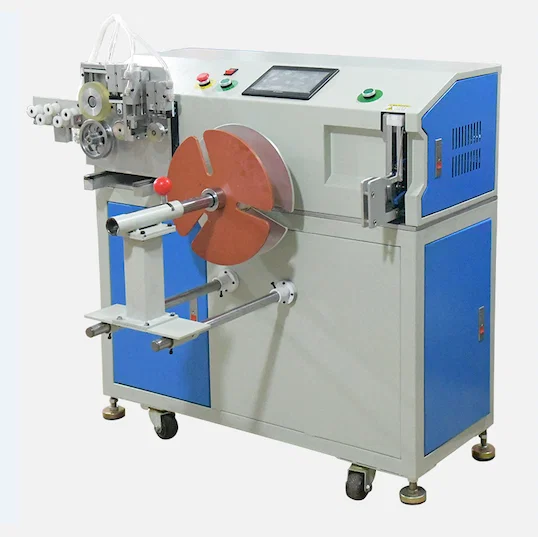

Automatic Cable Coiling, Tying & Cutting Machine WPM-40-80
Model No. WPM-40-80Price on request685 views
Specifications
- Model Number
- WPM-40-80
- Winding Dish Diameter
- 350mm
- Tying Wire Length
- 120-200mm
- Cable Tie Type
- Rubber wrapped iron wire
- Suitable Coil Diameter for Tying
- 18-45mm
- Voltage
- AC220V 50Hz/60Hz
- Cable Coil Diameter Range
- 50-280mm
- Winding Speed
- 1-10 sec/circle
- Weight
- 230KG
- Dimensions
- L1000 x W450 x H800 (mm)
- Winding Tolerance
- 25mm
- Efficiency
- 3x10-meter coils/min (without tying)
Cable coiling, tying and bundling machines with meter counting, wire cutting, coil winding and binding capabilities, cable rewinding machines, fully automatic wire tying and binding machines, as well as wire winding coil machines.
The outer diameter of the winding dish 350mm
Cutting diameter <8mm
Tying wire length 120-200mm
Cable tie Rubber wrapped iron wire
Suitable coil diameter for tying 18-45mm
Voltage AC220V 50Hz/60Hz
Cable coil diameter 50-280mm
Rated Power <2500W
Winding speed 1-10 sec/circle
Weight 230KG
Dimensions L1000*W450*H800(mm)
Winding tolerance 25mm
Loading weight of winding wire <2.5KG
Efficiency 3*10-meter coils of cable/min without tying
Automatic Cable Coiling, Tying & Cutting Machine WPM-40-80
