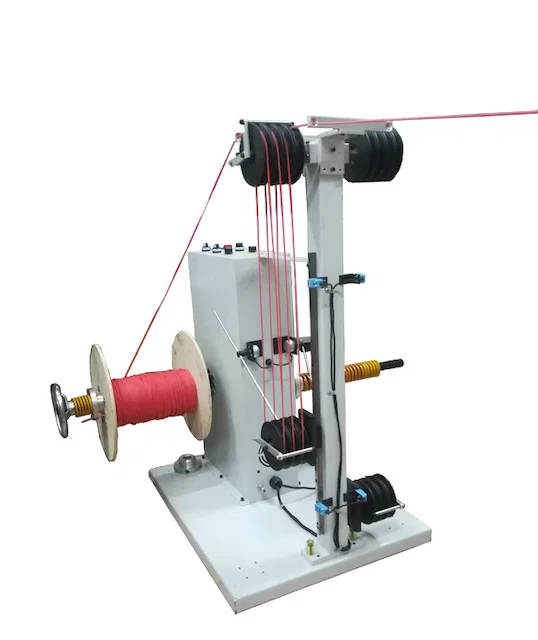

Automatic 3D Printing Filament Coiling & Binding Machine WPM-CRT-02SL

Fully automatic cutting, winding and binding machine for 3D printing consumables WPM-CRT-02SL, wire coiling machine, automatic wire coiling and tying machine.
Appearance circle double tie tape
The inner diameter of the circle is 70-80mm
Applicable wire diameter 1.5-1.8mm
The length of the cutting wire is 3-10m
The cutting precision is measured by the winding number
Leave the head length 60-70mm
The tail length is 50-60mm
Production efficiency ≥600PCS/H (based on 3m)
Production efficiency ≥540PCS/H (5m)
Tie diameter ≤40mm
Suitable for binding iron core with a rubber band
The power of the machine is 1700W
Machine size: about 650W*800D*1450Hmm
Machine weight: about 200KG
Fully automatic cutting winding binding machine for 3D printing consumables WPM-CRT-02SL
Cylinder: Yadeke cylinder in the parts such as binding wire and twisting wire,
Motor: Winding main servo motor 1000W Dongling
Motor: Auxiliary motor thunder race
PLC: Taiwan Fengwei
Screen: Taiwan Maintenance control
Rack: The appearance of an iron rack baking lacquer computer ash
Power supply: Taiwan Mingwei brand
The driving system is a high-reliability servo system
The control system is a high-speed stable industrial-grade controller and system software.
Automatic alarm in case of wireless fault such as material shortage.
