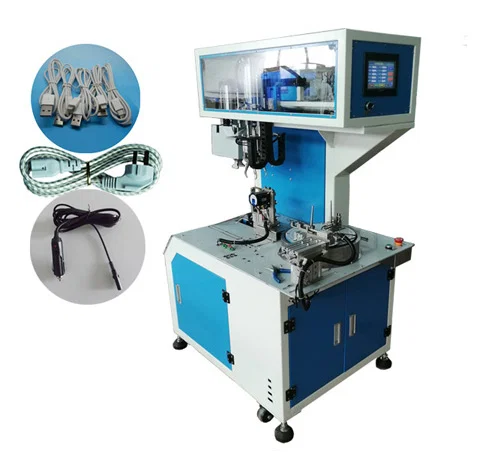

Automatic Wire Coiling & Tying Machine for Cable Harness WPM-81M

Automated wire coiling machine for cable ties and cable winding.
Model WPM-81M
Finished product 8 shapes, single tying
Wire/cable type AC / DC / USB etc.
Wire outer diameter ≤ 4 mm
Winding part distance 45 - 80 mm
Winding length ≤ 3 m (depending on wire size)
Winding speed Adjustable
Tying outer diameter ≤ 20 mm
Wirehead length 0 - 130 mm
Wire tail length > 0 mm
Productivity 1800 pcs./h (winding length = 1 m, number of turns = 3)
Compressed air connection 0.55 - 0.65 MPa
Power supply 110, 220 V (50 - 60 Hz)
Power ≤ 2000 W
Dimension 1040 * 720 * 1540 mm
Weight 160 kg
