02SL
Cable Coiling & Binding
Automatic Wire Cutting Stripping Coiling Tying Machine WPM-02SL
Model No. WPM-02SLPrice on request588 views
Specifications
- Model Number
- WPM-02SL
- Wire Outer Diameter
- ≤ 5 mm
- Winding Part Distance
- 70 - 150 mm
- Winding Length
- ≤ 10 m
- Winding Speed
- Adjustable
- Tying Outer Diameter
- ≤ 20 mm
- Wirehead Length
- 40 - 100 mm
- Wire Tail Length
- 40 - 200 mm
- Productivity
- 420 pcs./h (winding length = 5 m)
- Compressed Air Connection
- 0.55 - 0.7 MPa
- Power Supply
- 110, 220 V (50 - 60 Hz)
- Power
- 1.5 kW
- Dimension
- 750 * 1550 * 1850 mm
- Weight
- 600 kg
Full automatic wire cutting, stripping, winding, twisting and tying machines WPM-02SL, as well as an automatic wire coiling machine are available.

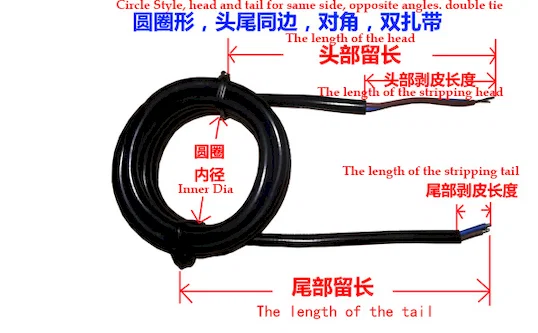

Finished productCircle shape, double tyingWire/cable typeAC / DC / USB etc.
Wire outer diameter≤ 5 mm
Winding part distance70 - 150 mm
Winding length≤ 10 m
Winding speedAdjustable
Tying outer diameter≤ 20 mm
Wirehead length40 - 100 mm
Wire tail length40 - 200 mm
Productivity420 pcs./h (winding length = 5 m)
Compressed air connection0.55 - 0.7 MPa.
Power supply110, 220 V (50 - 60 Hz)
Power1.5 kW
Dimension750 * 1550 * 1850 mm
Weight600 kg

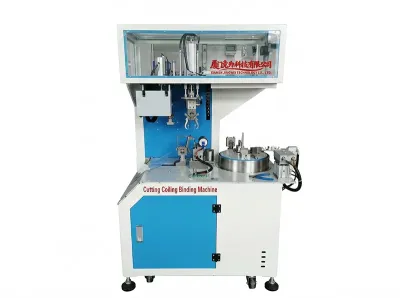

Auto Wire Cut Strip Coil Twist Tie WPM-02SL — Demo Video
