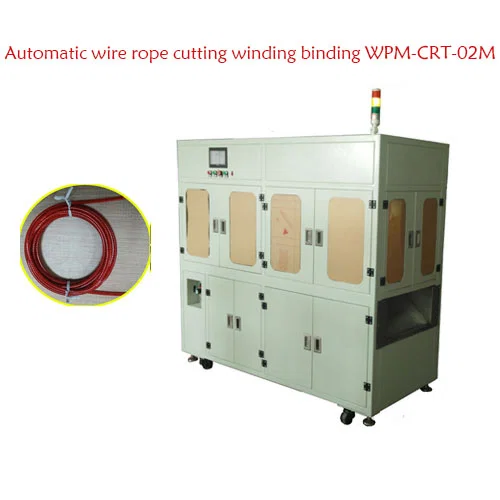

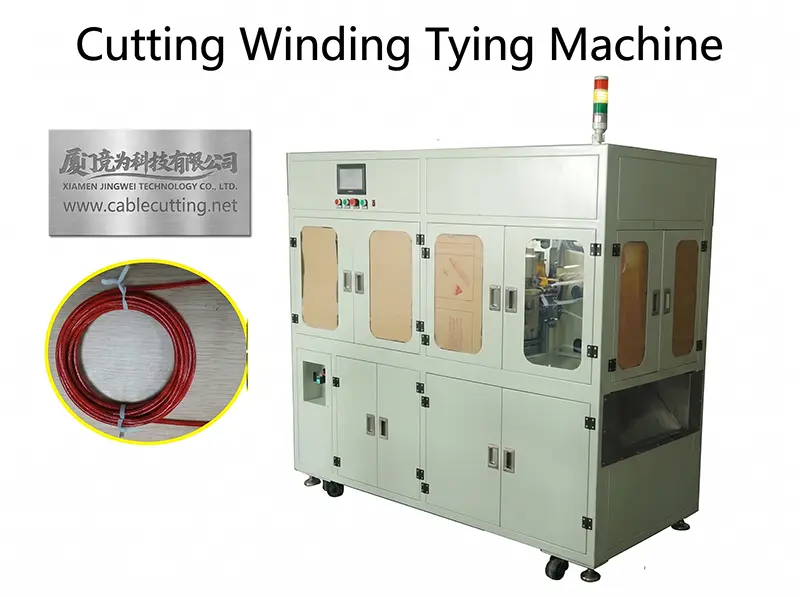

Automatic Wire Rope Cutting Winding Tying Machine WPM-CRT-02M

Automatic wire rope cutting, winding and binding machine WPM-CRT-02M is a versatile cable processing equipment that can perform wire rope cutting, winding and binding operations. It is also known as Cable Bunching Machine, Cable Coiling Tying Machine or Cable Cutting Winding Binding Machine.
Automatic Wire cutting + winding + tying machine, high speed, accurate meter counting, unattended
Applicable material: Applicable wire diameter: 2mm wire diameter, 3.5mm leather
Applicable Wire diameter: 2.5mm Wire diameter with 4.8mm leather cutting Wire length: 3m-12m
The appearance of winding: Precision of circle single/double tied cutting Wire: 1:12m ±50mm
Wire cutting accuracy: 2:8m ±30mm Wire cutting accuracy: 3:6m ±20mm
Cutting Wire accuracy: 4:3m ±15mm binding diameter: ≤ 30mm
Theoretical output: ≤550PCS/H Circle inner diameter: 80-150mm
Head length: 80-130mm Tail length: 80-130mm
Suitable for tying: rubber-coated iron core power consumption: 1700W/H
Fault alarm: automatic alarm air pressure requirement: 0.70 -- 0.8Mp
The machine size is about 1620W*750D*1800Hmm

8 style, automatic Wire cutting, winding and tying function in one, single/double tying around the circle;
Strong versatility, compatible with wire/hose/rope;
Theoretical production can reach 800 bars/hour;
Easy to operate, easy to debug, easy to maintain;
After wrapping and tying, the finished products are beautiful, generous, neat, and easy to package;
Humanized design reduces the fatigue strength of employees;
The original patent, only fast not broken, rock-solid.
Automatic fault alarm shutdown, reduce maintenance costs;
