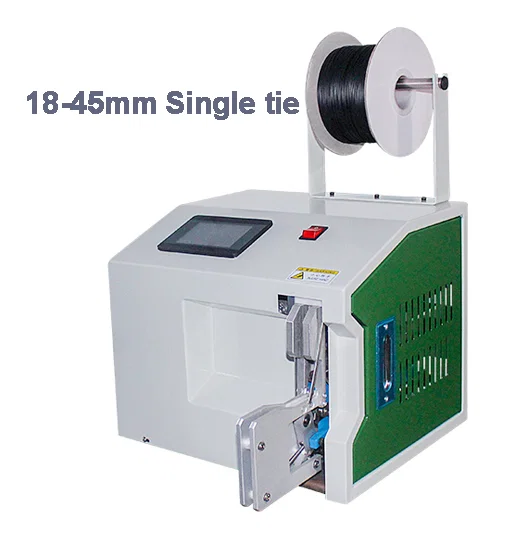

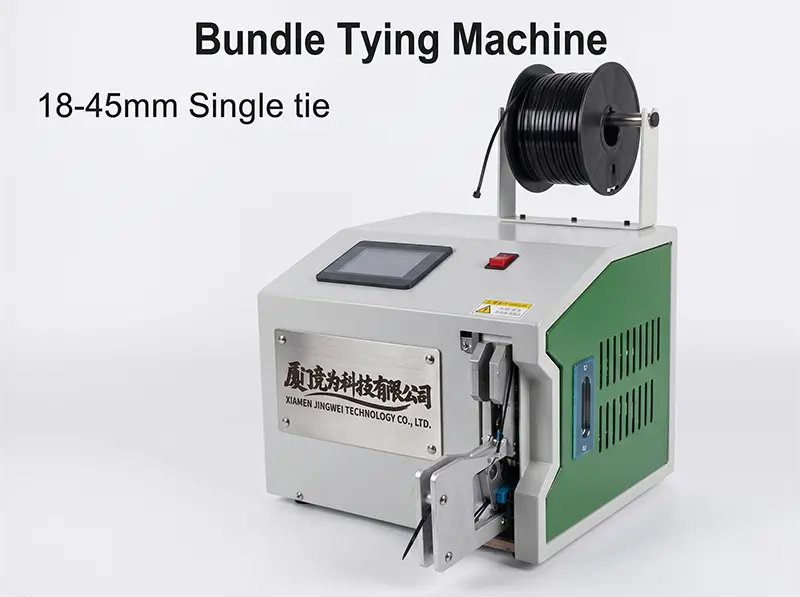

Automatic Touch Screen Bundle Tying Machine for 18-45mm Wires WPM-845C
Model No. WPM-845CPrice on request2,552 views
Specifications
- Model Number
- WPM-845C
- Machine Type
- Medium-sized bundle tying machine
- Binding Diameter Range
- 18MM-45MM
- Control System
- PLC program control
- Motor Configuration
- Four motors (including stepping motors)
- Operation Features
- Automatic feeding, cutting, and twisting
- Control Interface
- Touch screen and pedal control
Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
Automatic Binding machine with touch screen WPM-845c
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twist cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM
1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty
Automatic Binding machine with touch screen WPM-845c
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twist cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM
| Model | WPM-845A | WPM-845B | WPM-845C | WPM-845D |
| Voltage | AC220/50Hz AC110/60Hz | AC220/50Hz AC110/60Hz | AC220/50Hz AC110/60Hz | AC220/50Hz AC110/60Hz |
| Rated power | ≤100W | ≤100W | ≤100W | ≤100W |
| Dimensions | L350×W456×H315mm (Ribbon holder excluded) | L380×W420×H340mm (Ribbon holder excluded) | L380×W435×H340mm (Ribbon holder excluded) | L380×W435×H340mm (Ribbon holder excluded) |
| Weight | 25KG | 32KG | 40KG | 45KG |
| Tie length | 65-130mm | 75-140mm | 120-190mm | 200-300mm |
| Bundling diameter | 5-30mm | 8-30mm | 18-45mm | 40-80mm |
| Bundling speed | 0.6s/time | 0.6s/time | 0.6s/time | 0.6s/time |
| Ribbon | iron core plastic coating | iron core plastic coating | iron core plastic coating | iron core plastic coating |
| Input method | HMI touch screen | HMI touch screen | HMI touch screen | HMI touch screen |
1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty
