Cable Coiling & Binding

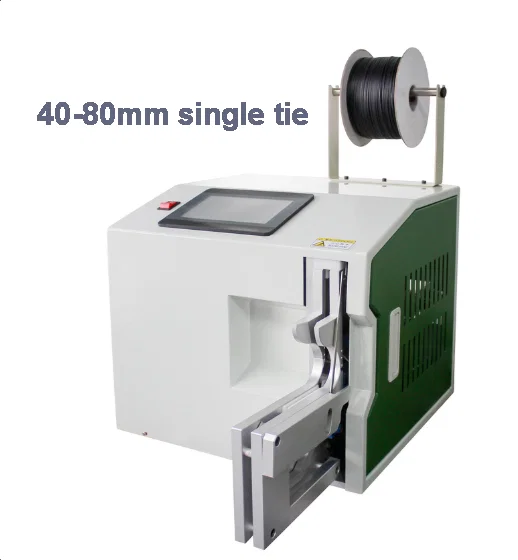

Automatic Touch Screen Cable Bundling Machine WPM-845D
Model No. WPM-845DPrice on request706 views
Specifications
- Model Number
- WPM-845D
- Control System
- PLC program control
- Motors
- 4 motors (stepping motors)
- Operation
- Automatic feeding, cutting, and twisting
- Control Interface
- Touch screen and pedal control
- Applicable Wire Diameter
- 40MM-80MM
- Machine Type
- Large cable bundling machine
Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
Automatic Binding machine with touch screen WPM-845D
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twisting cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM
1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty 2.No violent shaking, Vibration, No corrosive air, No dusty
Automatic Binding machine with touch screen WPM-845D
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twisting cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM
| Model | WPM-845A | WPM-845B | WPM-845C | WPM-845D |
| Voltage | AC220/50Hz AC110/60Hz | AC220/50Hz AC110/60Hz | AC220/50Hz AC110/60Hz | AC220/50Hz AC110/60Hz |
| Rated power | ≤100W | ≤100W | ≤100W | ≤100W |
| Dimensions | L350×W456×H315mm (Ribbon holder excluded) | L380×W420×H340mm (Ribbon holder excluded) | L380×W435×H340mm (Ribbon holder excluded) | L380×W435×H340mm (Ribbon holder excluded) |
| Weight | 25KG | 32KG | 40KG | 45KG |
| Tie length | 65-130mm | 75-140mm | 120-190mm | 200-300mm |
| Bundling diameter | 5-30mm | 8-30mm | 18-45mm | 40-80mm |
| Bundling speed | 0.6s/time | 0.6s/time | 0.6s/time | 0.6s/time |
| Ribbon | iron core plastic coating | iron core plastic coating | iron core plastic coating | iron core plastic coating |
| Input method | HMI touch screen | HMI touch screen | HMI touch screen | HMI touch screen |
1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty 2.No violent shaking, Vibration, No corrosive air, No dusty
