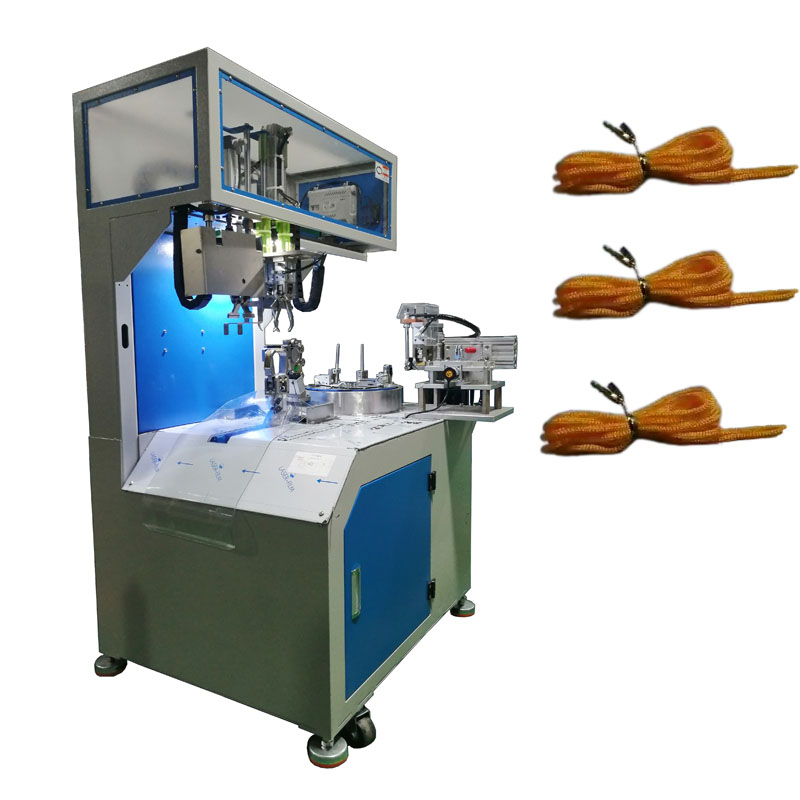

Automatic Cable Tie Wrapping Machine for 4mm Wire WPM-CRT-81ML
Model No. WPM-CRT-81MLPrice on request2,474 views
Specifications
- Model Number
- WPM-CRT-81ML
- Applicable Wire Diameter
- 4 mm
- Cutting Wire Length
- 1.5-5m
- Wrapping Shape
- 8-figure single tie
- Winding Spacing
- 80-120mm
- Binding Diameter
- 40mm or less
- Head and Tail Length
- 130-150mm
- Production Efficiency
- ≤800PCS/H (1.8m)
- Suitable Cable Tie Wrap Rubber Core
- ≤5KG/roll
- Applicable Air Pressure
- 0.5-0.65Mpa
- Power Supply
- 220V/50Hz
- Machine Power
- 2800W
- Machine Weight
- about 230KG
- Machine Size
- 1060L*800W*1600H
Rope heating cut winding tying machine WPM-CRT-81ML
Applicable wire diameter 4 mm
Length of cutting wire: 1.5-5m
Wrapping shape: 8-figure single tie, same edge at end and end
Spacing of winding: 80-120mm
Binding diameter: 40mm or less
Head and tail length: 130-150mm
Production efficiency: ≤800PCS/H(1.8m)
Suitable for cable tie wrap rubber core ≤5KG/ roll
Applicable air pressure 0.5-0.65Mpa
Suitable for power supply 220V/50Hz
Machine power: 2800W
Machine weight: about 230KG
Machine size: 1060L*800W*1600H

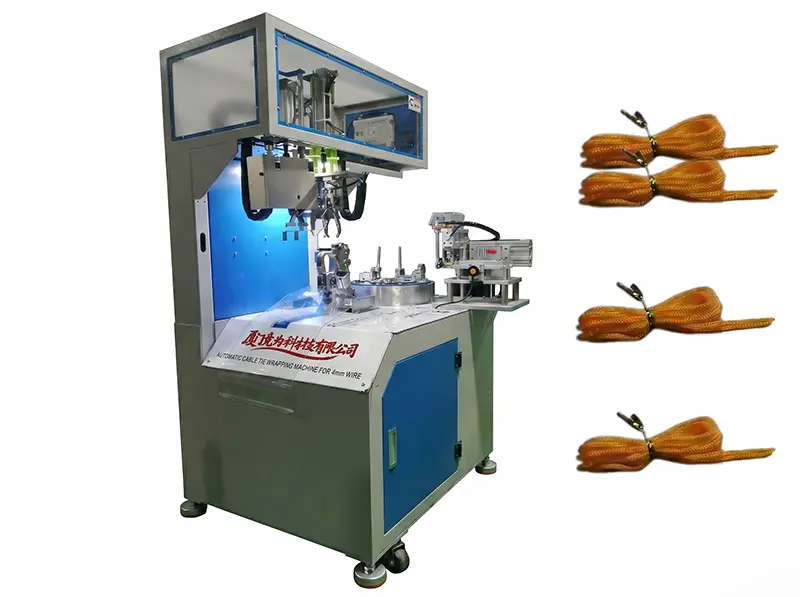

Rope Heat Cut Coil Tie Machine WPM-CRT-81ML
