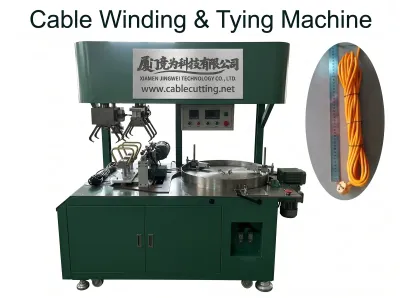

Automatic Figure-8 Cable Tying Machine for AC/DC/USB Wires WPM-81M

Upgraded version of the 8-word single tie type automatic winding tie machine WPM-81M
Technical parameters:
Suitable for AC/DC/USB cable
The winding appearance of a single 8-figure tie tape
Applicable line length ≤6 m
Applicable wire diameter ≤ φ 6.2mm
The spacing of winding is 70-200mm
Binding diameter ≤40 mm
The head length is 0-130 mm
Tail length >0 mm
Production efficiency 1500PCS /h (1-meter line length, 3 turns, outcrop, and tail)
Applicable pressure 0.55-0.65Mpa
Applicable tie tape ≤7.5 KG/ roll
Applicable voltage 220V 50Hz
Machine power ≤2800W
The machine size is about 1040L*720W*1540H mm
The weight of the machine is about 210KG
8-word single tie type automatic winding and tying machine 81M main components:
Cylinder: Yadeke cylinder and solenoid valve,
Motor: Winding servo motor 1500W Turbot
Motor: line translation servo motor 750W Turbot
Motor: Pull belt 57 closed-loop stepper motor thunder race
Motor: Twisted tie belt 57 stepper motor thunder race
Motor: storage tie belt 6W fixed speed
Take line translation: double slider
Pull tape: CCM straight-line module
PLC: vigor
Screen: Dimension control
Power supply: clear weft
Frame: iron frame, painted, blue and white
Wire grab/twisting claw/lower claw Material: stainless steel
Drive system: high-reliability servo system
