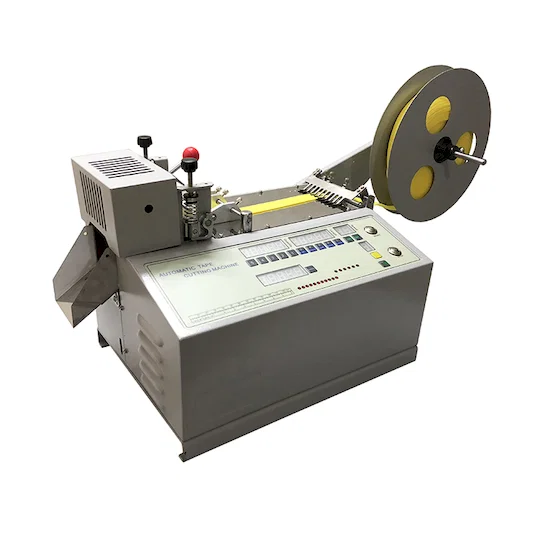

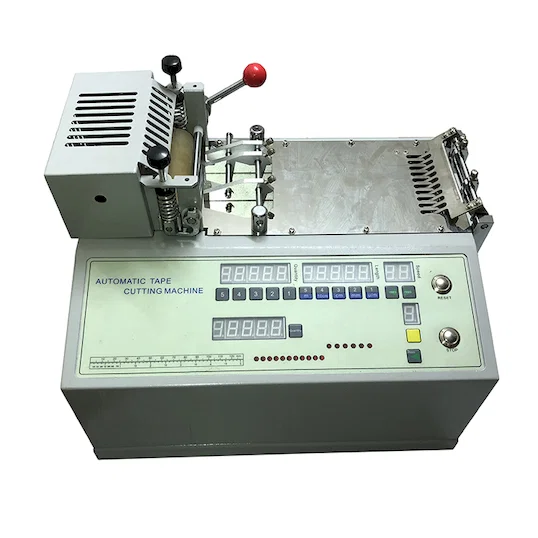

Automatic Hook & Loop Ribbon Cutting Machine WPM-690

Automatic Hook & Loop Ribbon Cutting Machine WPM-690
round shape hoop & loop ribbon cutting machine
1. Easy Operation, It can be cut automatically once set up the cutting length and quantity.
2. Self-protection Function, It will stop automatically if the materials run out during the operation.
3.High speed, it can cut 100-120pcs per minute(50mm length for example)
4. High Accuracy, the cutting length is accurate owing to a stepping motor.
WPM-690 is More advanced than WPM-619, It has stronger control systems and
higher quality.

Apply for:

Widely used to cut kinds of woven belts, nylon buckles, lining, fabric tape without heat seal, plastic zippers,
metal zipper, plastic lace, PVC tube leather, aluminum platinum, PS material, and so on.
We supply kinds of special blades, then you can get different shapes of cutting edge.

Specification:

Available Tape Width:5~80mm(for straight cut)
5~40mm(for shape cut)
Available Cutting Length:5~9999mm
Tape Cutting Speed:100~120Pcs/Min
Cutting Tolerance: ≤0.5mm
Cutting Type: Cold knives, Straight & Shape cut
Power Supply: AC220V 50Hz
Available Materials: Hook & Loop, nylon/fabric tapes, plastic/metal zippers, leather, aluminum platinum, PVC tubes,
PS material etc.

Measurement:380*320*300mm
Weight:25kg
Features: Easy Operation, High Speed, High Accuracy
Self-protection and Memory Function
Repeat cutting
Professional in cutting Hook & Loop tapes
