Pneumatic Large Cable Cutter for 5-150mm² Wires WPM-5-150MM2
Model No. WPM-5-150MM2Price on request1,906 views
Specifications
- Model Number
- WPM-5-150MM2
- Air Pressure
- 0.4-0.7Mpa
- Power
- 220V 50-60HZ
- Weight
- 35kg
- Cutting Length
- 1-99999.99mm
- Size
- 400*450*200
- Stroke
- 50
- Cylinder Bore
- φ100
- Wire Range
- 5-150mm² BVR Wire (Customizable)

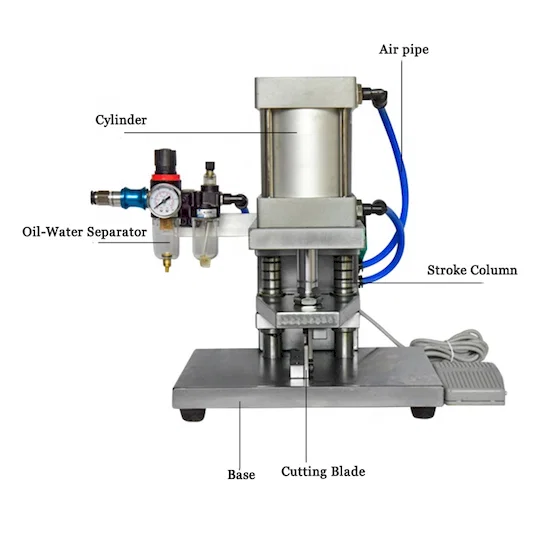

Large square Pneumatic cable cutting machine WPM-5-150MM2, Big Cable Cutting Machine, New Energy Car Cable Cutting Machine, Wire Cut Off Machine
♣ Simple operation and fast speed, minimal gas consumption, low failure rate, easy maintenance
♣ This product is a non-standard machine, specialized in cutting large cables, it adopts power type and pneumatic pedal type to achieve the cutting effect.
♣ The tangent line is made of a powerful cylinder with a bore of 100, a stroke of 50, and a three-dimensional shape.
♣ Cut for large cables.
♣ Minimal gas consumption, low failure rate, and easy maintenance.
♠ Suitable for 5-150 square large electronic wires, cables, power cables, USB cables, coaxial cables, BV wires, etc.
♣ We can customize suitable machines for different wire ranges according to customer needs.
Name Pneumatic large cable cutting machine
Air Pressure 0.4-0.7Mpa
Power 220V 50-60HZ
Weight 35kg
Cutting Length 1-99999.99mm
Size 400*450*200
Stroke 50
Cylinder Bore φ100
Wire Range 5-150mm2 BVR Wire(Can Customize)
♣ Simple operation and fast speed, minimal gas consumption, low failure rate, easy maintenance
♣ This product is a non-standard machine, specialized in cutting large cables, it adopts power type and pneumatic pedal type to achieve the cutting effect.
♣ The tangent line is made of a powerful cylinder with a bore of 100, a stroke of 50, and a three-dimensional shape.
♣ Cut for large cables.
♣ Minimal gas consumption, low failure rate, and easy maintenance.
♠ Suitable for 5-150 square large electronic wires, cables, power cables, USB cables, coaxial cables, BV wires, etc.
♣ We can customize suitable machines for different wire ranges according to customer needs.
Name Pneumatic large cable cutting machine
Air Pressure 0.4-0.7Mpa
Power 220V 50-60HZ
Weight 35kg
Cutting Length 1-99999.99mm
Size 400*450*200
Stroke 50
Cylinder Bore φ100
Wire Range 5-150mm2 BVR Wire(Can Customize)

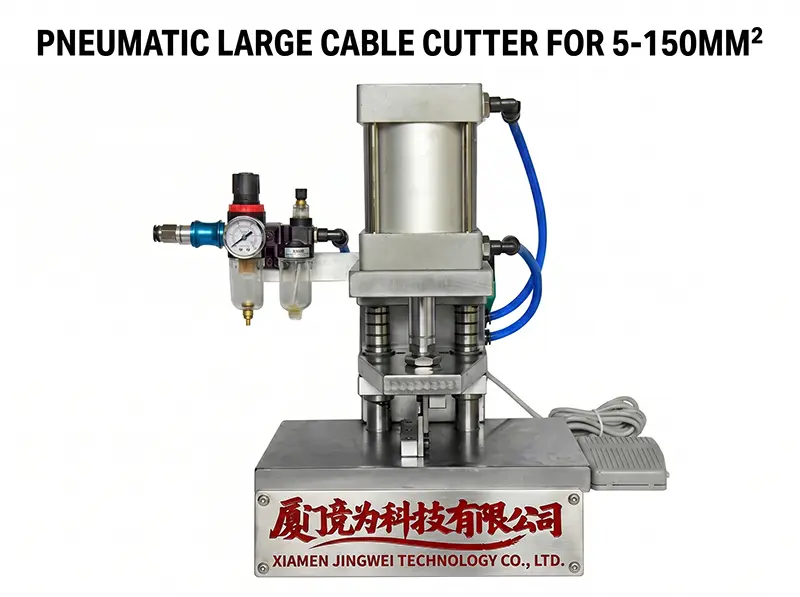

Large Square Pneumatic Cable Cutter WPM-5-150mm²
Large Square Pneumatic Cable Cutter WPM-5-150mm²
