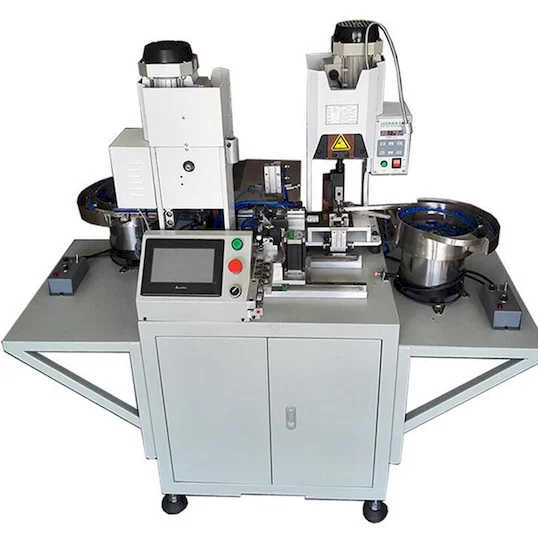

Automatic Insulated Terminal Crimping & Wire Stripping Machine WPM-R8B

insulated terminal crimping machine, Wire Cutting Stripping Machine, Insulated Cord End Terminal Crimping Machine, Automatic Wire Cutting Stripping Insulated Card End Terminal Crimping Machine
1. PLC controller, touch screen display easy to operate and set all technical parameters.
2. Adopt branded stepping motors and drivers' control to ensure cut and strip precisely.
3. Crimping system use frequency conversion mute terminal crimping machine, lower noise and steady.

4. Equipped with vibration plate to feed loose terminal to working position then automatic punching, crimping at one time

Usage: Automatic feeding, cutting to length, Stripping two ends, and crimping two ends.
Applicable terminal: Insulated cord terminal crimping machine
Productivity: 1200pcs/H(Length=100mm)
Cutting length: 100~9999mm(the shortest cutting length depend on the crimping applicator)
Cutting error: 0.5mm+(cutting length*0.002)
Crimping force: 1.5T
Power: AC220V 50/60HZ 10A
Air pressure: 0.5MPa about 140NL/min
Working temperature: 5~25℃
Working humidity: 30~80%RH
Size: 1400*1100*1450(mm)
Machine Weight: 200KG
