Automatic Wire Crimping Machine
Automatic Wire Crimping & Water Seal Insertion Machine WPM-078H
Model No. WPM-078HPrice on request1,345 views
Specifications
- Power
- AC220V/50/60Hz
- Wire Range
- 0.3-2.5sqmm, AWG28#-AWG14#
- Cutting Length
- 45-3000mm (customizable)
- Cutting Accuracy
- 0.5mm + cutting length x 0.2%
- Stripping Length
- 0.5-8mm (customizable)
- Production Capacity
- 2000-3000pcs/hour (L=150mm)
- Crimping Stroke
- 30mm (40mm optional)
- Air Pressure
- 5-6kgf
- Suitable Applicator
- OTP, European, Korea applicator
- Functions
- Wire cut, both ends stripping, one side/both sides crimping and water seal insertion
wire crimping and water seal insertion machine, Water Seal Insertion Machine, Insertion Machine

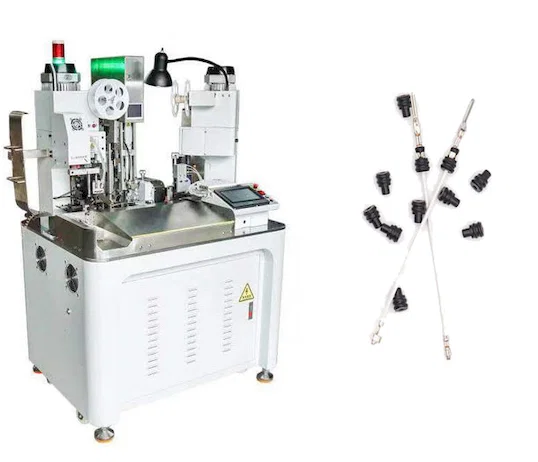

This crimping machine is an automatic wire on both sides crimping and water seal insertion machine.
it can automatically feed the water seal by vibration plate, insert the water seal before crimping terminals.
Power: AC220v/50/60hz
Functions: Wire cut, both ends striping, one side/both sides crimping and inserting cable water seal.
Capacity: 2000pcs~3000pcs/h(L=150MM)
Wire range:0.3~2.5sqmm, AWG28#-AWG14#
Cutting length:45-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Suitable applicator: OTP applicator, European applicator, and Korea applicator
Crimping stroke:30mm(40mm for optional)
Air pressure: 5-6kgf
Processing result display
This crimping machine is an automatic wire on both sides crimping and water seal insertion machine.
it can automatically feed the water seal by vibration plate, insert the water seal before crimping terminals.
Power: AC220v/50/60hz
Functions: Wire cut, both ends striping, one side/both sides crimping and inserting cable water seal.
Capacity: 2000pcs~3000pcs/h(L=150MM)
Wire range:0.3~2.5sqmm, AWG28#-AWG14#
Cutting length:45-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Suitable applicator: OTP applicator, European applicator, and Korea applicator
Crimping stroke:30mm(40mm for optional)
Air pressure: 5-6kgf
Automatic Wire Crimping & Water Seal Insertion Machine WPM-078H
