Automatic Wire Crimping Machine

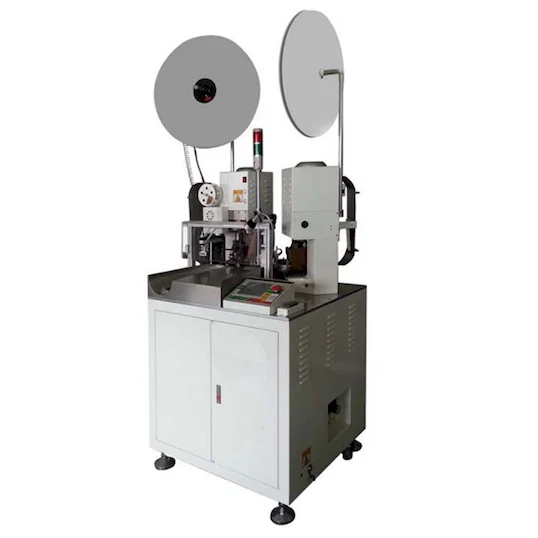

Automatic Waterproof Wire Cutting Stripping Crimping Machine WPM-624
Model No. WPM-624Price on request350 views
Specifications
- Function
- Wire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping
- Productivity
- 3500pcs/h (Within 100mm)
- Wire specification
- AWG#28-AWG#20
- Cutting length
- 50mm-9999mm
- Cutting tolerance range
- 1mm+cutting length*0.2%
- Stripping length
- 0.1mm-100mm
- Crimping force
- 2.0T-3.0T
- Air pressure
- 4-6kgf (clean and dry air required)
- Testing Equipment
- wire exists, terminal exists, waterproof plug exists, crimp detection, wire blocking, air pressure testing
- Dimension
- 700W x 800L x 1500H (mm)
- Weight
- 368kg
Wire Cutting Stripping Crimping Machine, Ferrule Crimping Machine, Stripping, And Crimping, Terminal Crimper Machine
1. Automatically complete all the production processes of Plugging waterproof, cutting, stripping, twisting, and crimping at one time.
2. Delicated and concentrated design. Small land occupancy area.
3. KINCO touching screen display and controlling process, easy to operate.
4. Prompting to change the processes and material.
5.High efficient stepper drive、High precision、high speed.
6. Convenient maintenance
7. High-cost performance
8. Fully digital debugging
FunctionWire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping
Productivity3500pcs/h (Within 100mm)
Wire specificationAWG#28-AWG#20
Cutting length50mm----9999mm
Cutting tolerance range1mm+cutting length*0.2%
Stripping length0.1mm-----100mm
Crimping force2.0T-3.0T
Air pressure 4-6kgf (need clean and dry air)
Testing Equipmentwire exists or not, terminal exists or not, waterproof plug exists or not, crimp or not, wire blocking and air pressure testing.
Dimension700W X 800L X 1500H(mm)
Weight368kg
1. Automatically complete all the production processes of Plugging waterproof, cutting, stripping, twisting, and crimping at one time.
2. Delicated and concentrated design. Small land occupancy area.
3. KINCO touching screen display and controlling process, easy to operate.
4. Prompting to change the processes and material.
5.High efficient stepper drive、High precision、high speed.
6. Convenient maintenance
7. High-cost performance
8. Fully digital debugging
FunctionWire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping
Productivity3500pcs/h (Within 100mm)
Wire specificationAWG#28-AWG#20
Cutting length50mm----9999mm
Cutting tolerance range1mm+cutting length*0.2%
Stripping length0.1mm-----100mm
Crimping force2.0T-3.0T
Air pressure 4-6kgf (need clean and dry air)
Testing Equipmentwire exists or not, terminal exists or not, waterproof plug exists or not, crimp or not, wire blocking and air pressure testing.
Dimension700W X 800L X 1500H(mm)
Weight368kg

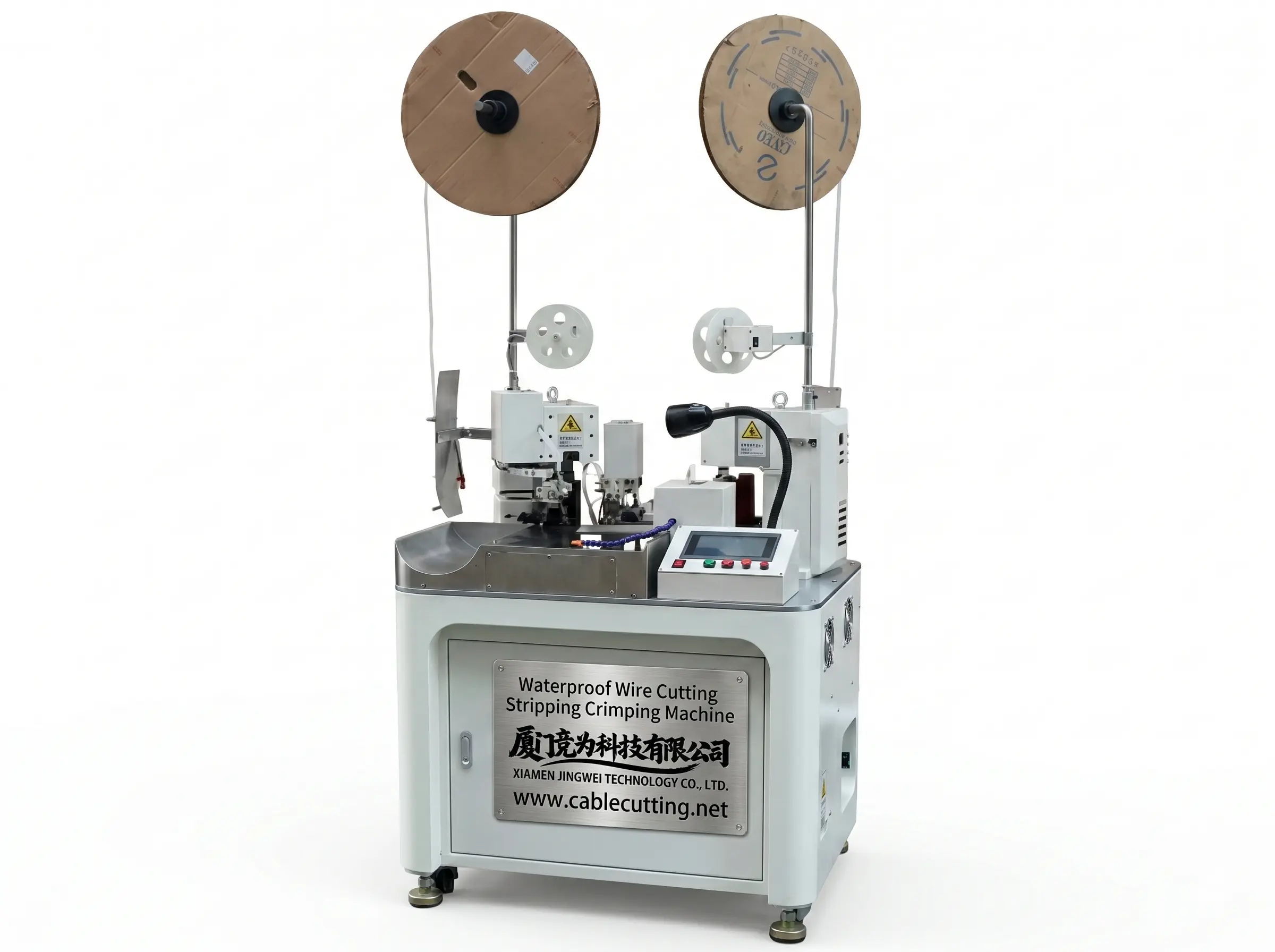

Auto Waterproof Wire Crimp Machine
