501S

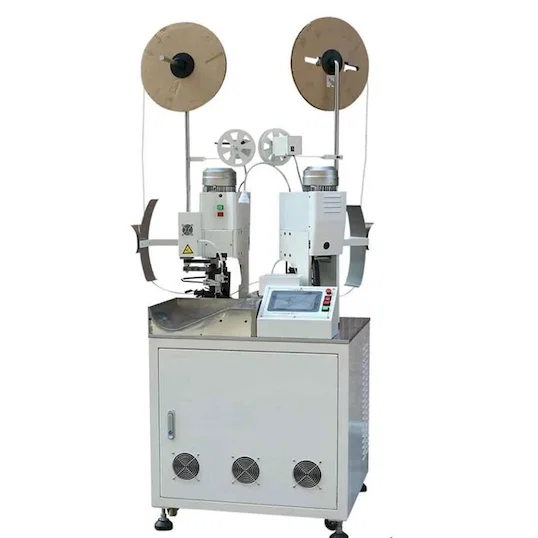

Automatic Wire Crimping Machine
Automatic Double-End Wire Cut Strip Crimp Machine Wire Cut Strip Crimp Machine
Model No. Wire Cut Strip Crimp MachinePrice on request1,182 views
Specifications
- Size
- 1000*800*1450mm
- Weight
- 300kg
- Display
- English LCD Touch screen
- Voltage
- AC220/50Hz, AC110/60Hz Single phase
- Productivity
- Both ends crimping: 4800pc./h
- Cutting Length
- 40 mm—9999 mm
- Cutting Tolerance
- 0.5mm+ (L×0.002)
- Twisting Length
- 2mm-20mm
- Stripping Length (Front-end)
- 1.00～15.00/25.00mm
- Stripping Length (back-end)
- 1.00～8.00mm
- Wire Range
- AWG32#-AWG14#(0.05mm2-2.0mm2)
- Air pressure
- 0.5 MPA
- Crimping force
- 1.0T/1.5T/2.0T
- Available applicator
- Side Applicator, End Applicator
Wire And Cable Strip Crimp Machine, Auto Cut Strip Crimp Machine, Machine Crimp Tubes
automatic wire cut strip crimp machine can deal with both ends of the wire. It adopts the touchscreen control interface, its operating system is in Chinese and English. It works stably, it can send a wire, cut wire, strip wire, and crimp the terminals very precisely. The machine is controlled by a servo motor, it is ultra-mute.
| Size | 1000* 800* 1450mm |
| Weight | 300kg |
| Display | English LCD Touch screen |
| Voltage | AC220/50Hz,AC110/60Hz Single phase |
| Productivity | Both ends crimping:4800pc./h |
| Cutting Length | 40 mm—9999 mm |
| Cutting Tolerance | 0.5mm+ (L×0.002) |
| Twisting Length | 2mm-20mm |
| Stripping Length | (Front-end)：1.00～15.00/25.00mm (back-end):1.00～8.00mm |
| Wire Range | AWG32#-AWG14#(0.05mm2-2.0mm2) |
| Air pressure | 0.5 MPA |
| Crimping force | 1.0T/1.5T/2.0T |
| Available applicator | Side ApplicatorEnd Applicator |
Automatic Double-End Wire Cut Strip Crimp Machine Wire Cut Strip Crimp Machine
Automatic Double-End Wire Cut Strip Crimp Machine Wire Cut Strip Crimp Machine
