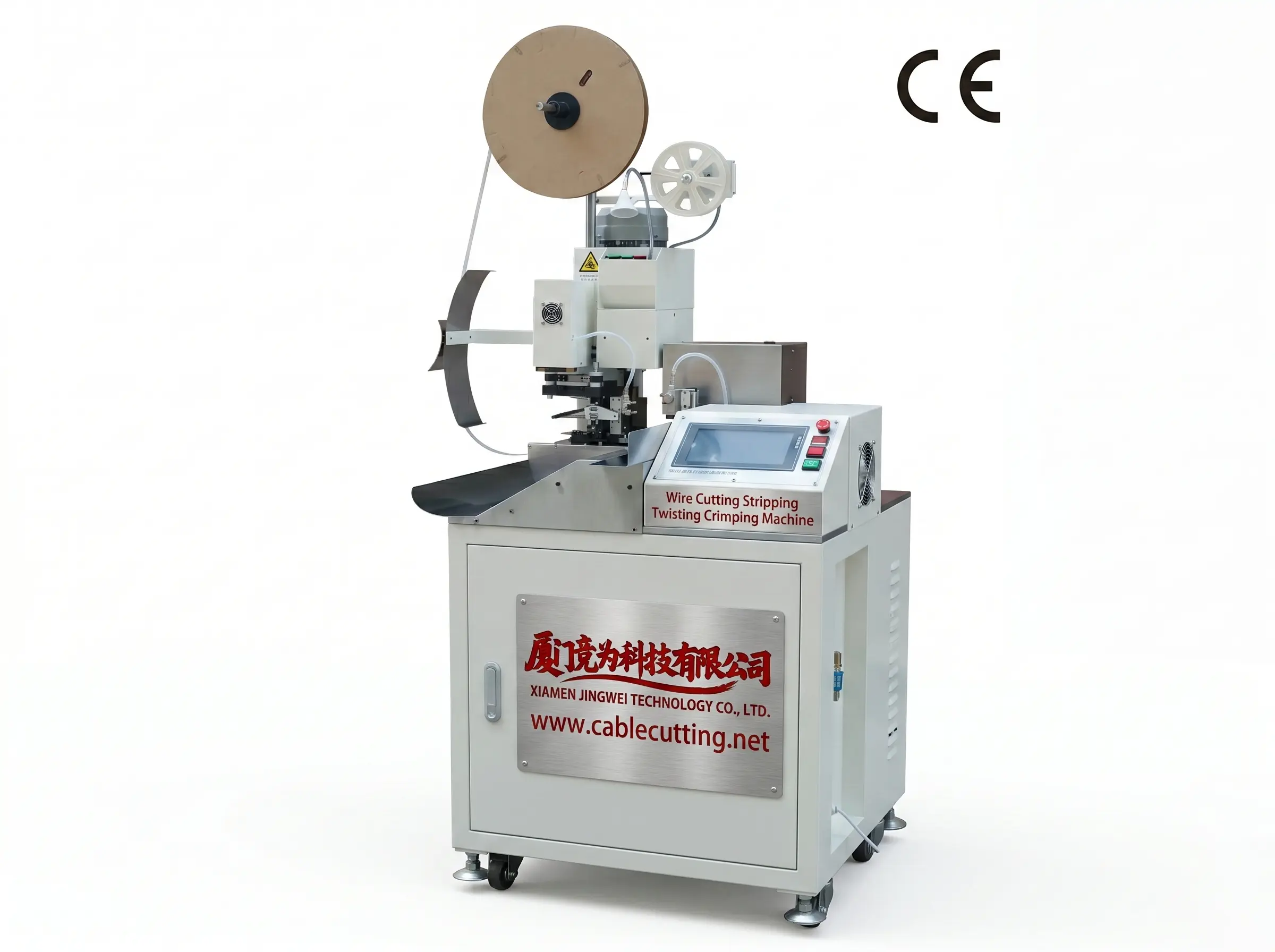

Automatic Wire Cutting Stripping Twisting Crimping Machine WPM-158

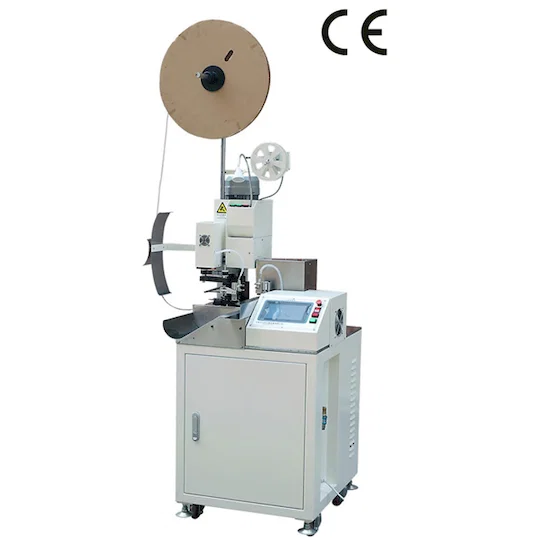

WPM-158 Automatic Wire Cutting Stripping Twisting and Crimping Machine - The Ultimate All-in-One Solution for Wire Harnessing

Introduction:

Introducing the WPM-158 Automatic Wire Cutting Stripping Twisting and Crimping Machine, a revolutionary all-in-one solution designed to maximize efficiency and precision in your wire harnessing operations. This Automatic Wire Cutting Stripping Twisting and Crimping Machine seamlessly integrates multiple critical processes – wire cutting, stripping, twisting, and crimping – into a single, automated unit. As a Fully Automatic Terminal Crimping Machine, the WPM-158 excels in handling a wide range of terminals, including Molex, making it a top-tier Molex Terminal Crimping Machine. This Electrical Connector Wire Cut Strip Crimping Machine dramatically streamlines your production line, ensuring high-quality, consistent results for all your electrical connector and wire preparation needs.

Key Features for Unmatched Performance and Efficiency:

The WPM-158 Automatic Wire Cutting Stripping Twisting and Crimping Machine is packed with features engineered for superior performance and ease of operation:

• User-Friendly LCD Control Interface: Features a clear and intuitive LCD control interface that makes operation straightforward and settings adjustments easy, ensuring a user-friendly experience.
• Stable and Reliable Performance: Engineered for stable and consistent performance, the WPM-158 guarantees reliable operation and minimizes downtime in your production environment.
• High-Speed Processing: Experience rapid wire processing with fast feed, cut, strip, crimp, and twist actions, significantly increasing your production speed and throughput.
• Ultra-Mute Operation: Designed for quiet operation, the machine minimizes noise pollution in your workspace, creating a more comfortable and productive environment.
• Digital Configuration for Precision Control: Offers digital configuration for precise control over key parameters, including the length of sending, cutting, and stripping, as well as twist tension, speed, and crimping delay time, allowing for highly customized and accurate wire processing.

Comprehensive Functions for Versatile Wire Harnessing:

The WPM-158 offers a comprehensive suite of functions to handle diverse wire preparation tasks:

• Wire Cutting: Precise and accurate wire cutting to specified lengths.
• Single-End Stripping: Strips insulation from one end of the wire.
• Both-End Stripping: Strips insulation from both ends of the wire.
• Single-End Crimping: Attaches terminals to one end of the wire with consistent crimping force.
• Twisting: Twists wire strands for improved termination and flexibility.
• Half-Stripping: Performs partial stripping of wire insulation for specialized applications.

Technical Specifications for Demanding Applications:

• Machine Type: Automatic Wire Cutting Stripping Twisting and Crimping Machine
• Key Features: Wire Cutting Stripping Twisting, Crimping, Fully Automatic Operation
• Keywords: Automatic Wire Cutting Stripping Twisting and Crimping Machine, Fully Automatic Terminal Crimping Machine, Molex Terminal Crimping Machine, Electrical Connector Wire Cut Strip Crimping Machine
• Control Interface: Touch Screen Display
• Voltage: AC220/50Hz, AC110/60Hz (Selectable)
• Power: 750W
• Cutting Length: 25mm – 9999mm
• Cutting Tolerance: +/-0.1mm (High Precision Cutting)
• Stripping Length: 0.1mm - 10mm
• Available Wire Gauge: AWG14# - AWG32# (Wide range of wire sizes)
• Cutter Material: Tungsten steel/alloy metal (Durable and high-performance)
• Crimping Force: 1.5T (2.0T available for heavier duty applications)
• Dimensions: 700mm * 600mm * 1050mm
• Weight: 240kg

Conclusion:

Invest in the WPM-158 Automatic Wire Cutting Stripping Twisting and Crimping Machine to revolutionize your wire harnessing production. This all-in-one machine, a leading Fully Automatic Terminal Crimping Machine and Molex Terminal Crimping Machine, delivers unmatched efficiency, precision, and versatility, making it the ultimate Electrical Connector Wire Cut Strip Crimping Machine for your needs. Contact us today to learn more about how the WPM-158 can transform your wire processing line and elevate your manufacturing capabilities!

Model	WPM-158
Size	700*600*1050mm
Weight	240kg
Display	Touch screen
Voltage	AC220/50Hz ,AC110/60Hz
Power	750W
Cutting Length	25mm—9999mm
Cutting Tolerance	+/-0.1mm
Stripping Length	0.1mm-10mm
Available Wire	AWG14#-AWG32#
Cutter material	Tungsten steel/alloy metal
Crimping Force	1.5T ( 2.0T available)
