Automatic Wire Crimping Machine

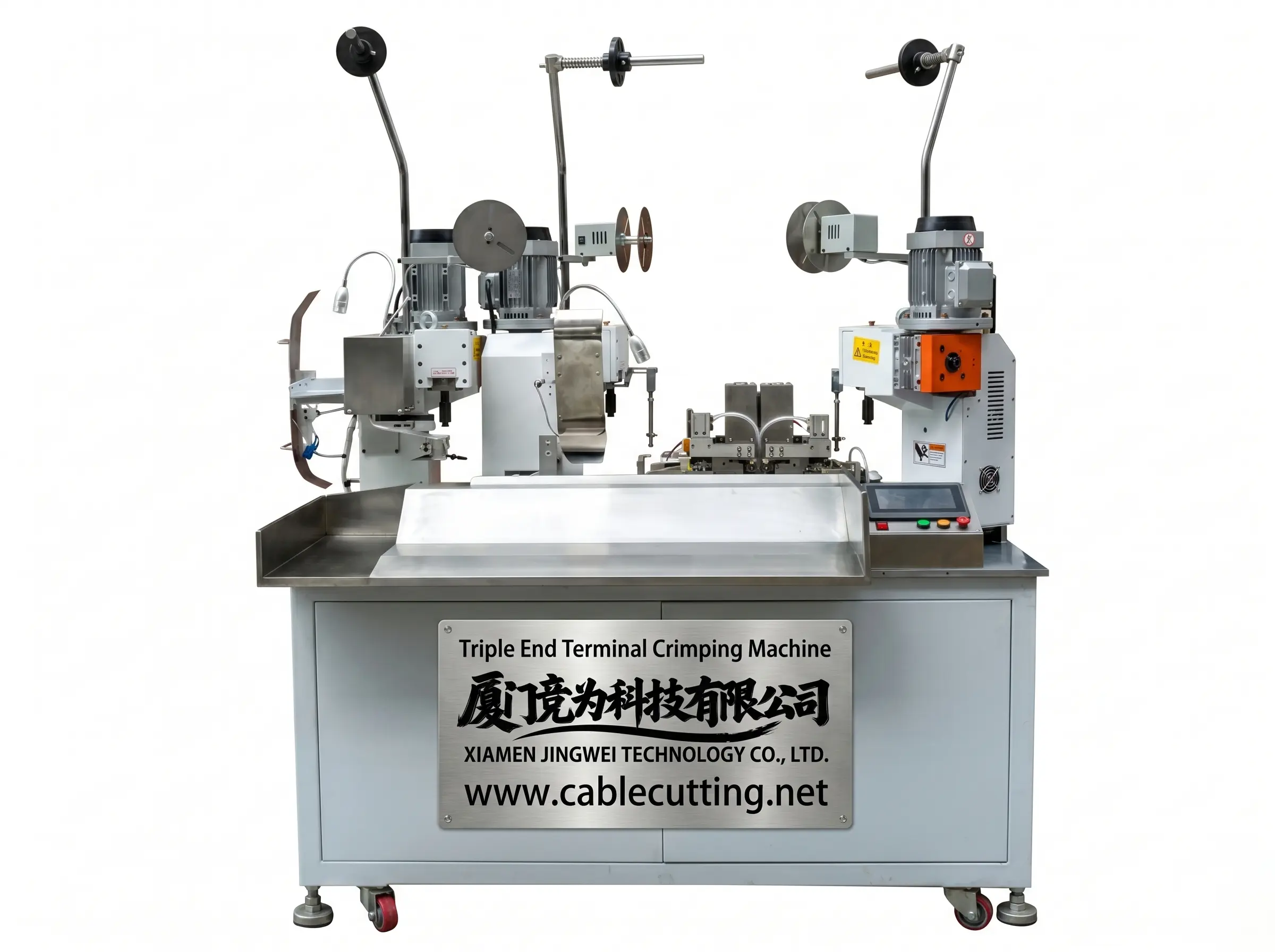

Automatic Triple End Terminal Crimping Machine WPM-189
Model No. WPM-189Price on request2,584 views
Specifications
- Wire Range
- AWG16-AWG28
- Cutting Length
- 45mm-3200mm
- Cutting Accuracy
- Cutting Length*0.2%
- Stripping Length
- Wire head:10mm tail:14mm
- Pressing capacity
- 2-3T
- Detection device
- terminal, wire, insufficient pressure
- Power Supply
- AC220V/50HZ
- Air pressure
- 0.5MPA
- Dimension
- 750*800*1700mm
- Weight
- 400kg
- Output
- 3500-4000pcs/H
High efficiency, stable performance, super intelligence; Cutting length, stripping length and cutter knife values, half stripping values, terminal crimping speed, all controlled by the touch screen operation, and adjusting the electric knife design, greatly improves the production efficiency. It is the highest efficient machine among the similar type of machines.
| Wire Range | AWG16-AWG28 |
| Cutting Length | 45mm-3200mm (Conveyor available for longer wire) |
| Cutting Accuracy | Cutting Length*0.2% |
| Stripping Length | Wire head:10mm tail:14mm |
| Pressing capacity | 2-3T（special demands available) |
| Detection device | terminal, wire, insufficient pressure |
| Power Supply | AC220V/50HZ |
| Air pressure | 0.5MPA |
| Dimension | 750*800*1700mm |
| Weight | 400kg |
| Output | 3500-4000pcs/H(wire length 1500mm ) |

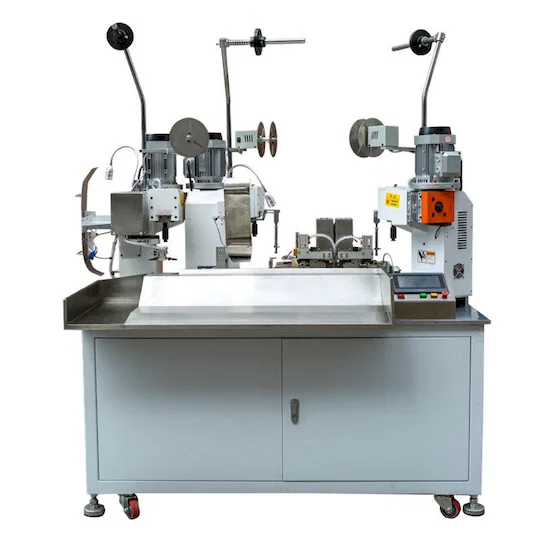

Automatic Triple End Terminal Crimping Machine WPM-189
Automatic Triple End Terminal Crimping Machine WPM-189
