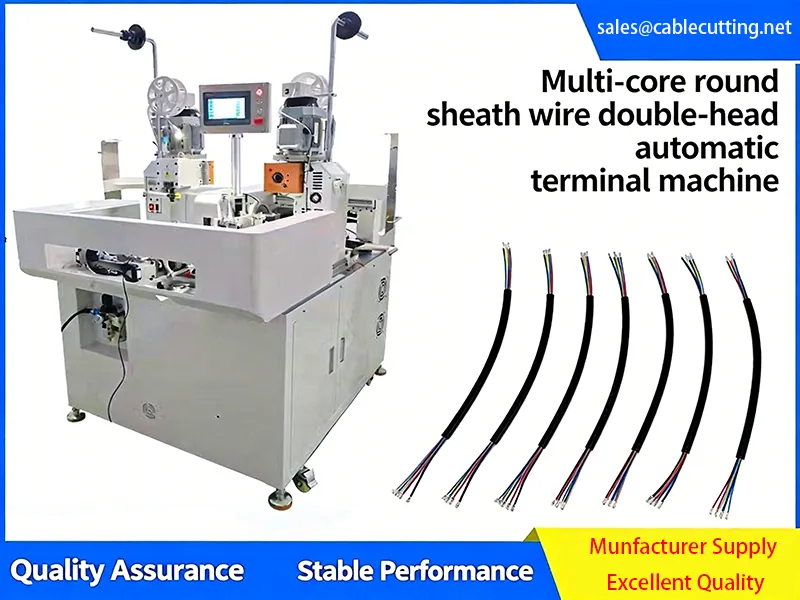

Fully Automatic Dual‑Head Terminal Crimping Machine for Multi‑Core Sheathed Cables JW‑17T

The JW‑17T is a high‑performance, fully automatic terminal crimping machine engineered for multi‑core sheathed cables, integrating cutting, outer/inner stripping, terminal crimping, in one continuous workflow. It delivers stable operation, long service life, and factory‑direct quality, making it the ideal upgrade for wire harness manufacturers aiming to boost efficiency, lower labor costs, and improve product consistency.

Three Core Advantages

1. Full‑Process Automation
Fully automatic cutting and stripping of sheathed cables, core wire processing, dual‑head or single‑head terminal crimping, single‑end tin dipping, and heat shrink tubing insertion—all completed in one machine with minimal operator intervention.

2. Exceptional Cost Efficiency
Replaces manual stripping and crimping, saving up to 3 workers per shift. The machine typically pays for itself within 10 months, delivering nearly cost‑free production for the following 9 years while drastically reducing quality defects.

3. Precision & High‑End Configuration
Powered by a pure copper precision servo motor and paired with a 10.1‑inch true‑color touchscreen supporting triple‑mode control. Equipped with pressure management for stable crimping force, ensuring consistent, reliable crimps without quality risks.

Technical Specifications (Table)

Item	Details
Model	JW‑17T Fully Automatic Dual‑Head Terminal Crimping Machine for Multi‑Core Sheathed Wires
Display	10.1‑inch True Color Touch Screen
Functions	Fully automatic cutting & stripping of sheathed wires; dual‑head terminal crimping / single‑head terminal crimping / single‑head tin dipping (choose 1)
Suitable Wire Type	Sheathed wires, multi‑core sheathed wires; outer diameter ≤12mm, max 12 cores (depending on wire type)
Cutting Length	150mm – 99999.99mm
Cutting Tolerance	Within ±0.002×L (L=cutting length)
Stripping Length	Outer sheath: 15–100mm (fully removable); Inner core: 1–15mm (both adjustable)
Tool Material	High‑quality precision high‑speed steel
Productivity	Approx. 700 PCS/H (sheathed wire; actual quantity depends on sample length & specifications)
Driving Mode	Pure copper precision motor
Wire Feeding Mode	High‑precision wire feeding (servo motor + precision lead screw)
Machine Dimensions	Height 1650mm × Length 2150mm × Width 1750mm
Machine Weight	700 kg
Remarks	Customizable for special requirements; sample wires available for testing

Superior Design Details

True‑Color Touch Panel: Intuitive interface, one‑click parameter setup, no mechanical adjustment needed; data visualization simplifies operation.

High‑Precision Wire Feeding: Servo motor + precision lead screw ensures zero length deviation and stable feeding.

Cast Iron Crimping Head: Compatible with horizontal, vertical, and flag‑type dies; fast installation, stable pressure, precise crimping.

Precision Blade Holder: Heat‑treated high‑hardness components + precision steel blades ensure clean, accurate cutting and stripping in one integrated step.

Stable Discharge Mechanism: Imported component control arm provides fast, stable, long‑life wire clamping.

High‑Torque Servo Motor: Delivers precise signals and stable motion for high accuracy and reliability.

Applications

Widely used in automotive wiring harnesses, home appliance cables, electronic device leads, communication cables, and industrial wiring assemblies requiring high‑volume, high‑precision terminal crimping for multi‑core sheathed wires.
