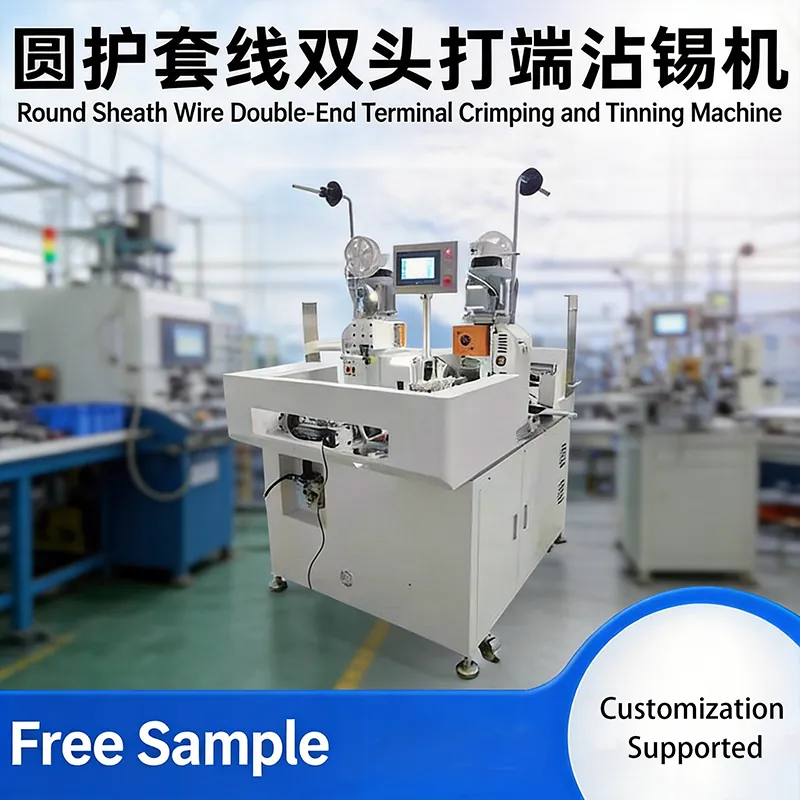

Round Sheathed Cable Double-End Terminal Crimping & Tinning Machine JW-RSCT

Round Sheathed Cable Double-End Terminal Crimping & Tinning Machine JW-RSCT

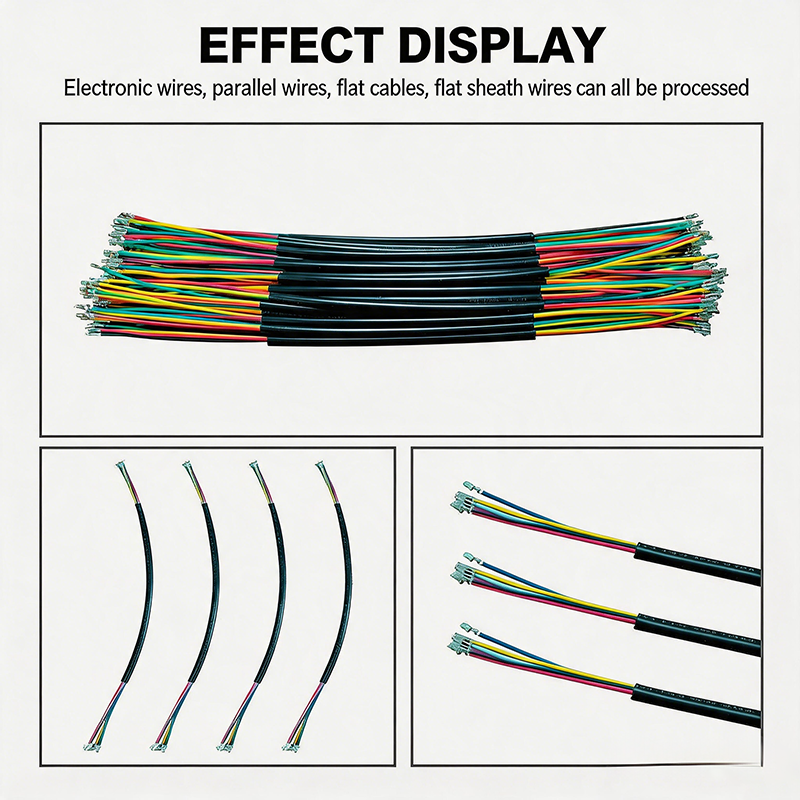

This fully automatic round sheathed cable double-end terminal crimping and tinning machine is professionally designed for multi-core round sheathed cables, integrating automatic wire cutting, outer sheath stripping, inner core stripping, terminal crimping and double-end tinning in one machine. It is widely used in wire harness processing for electronics, electrical appliances, new energy and lighting industries, delivering stable performance, high precision and high efficiency for mass production.

Product Parameters

Parameter	Specification
Product Name	JW-RSCT Round Sheathed Cable Double-End Terminal Crimping & Tinning Machine
Outer Diameter	1.5–8.5 mm
Inner Cores	2–12 cores
Inner Wire Gauge	16–28 AWG
Cutting Length	60–1000 mm (customizable extension available)
Cutting Precision	≤0.5 mm + 0.2% of cutting length
Power Supply	AC 220 V 50/60 Hz, 20 A
Outer Stripping Length	15–100 mm
Inner Stripping Length	0–15 mm
Crimping Force	Standard 2 TON (ultra-quiet 2.0T terminal crimping machine)
Functions	Fully automatic cutting, outer stripping, inner core stripping, terminal crimping, double-end tinning for multi-core cables

Product Features

1. High Compatibility: Suitable for round sheathed cables with outer diameter 1.5–8.5 mm, 2–12 cores, 16–28 AWG inner wires.

2. High Precision & Stability: Cutting error controlled within 0.5 mm + 0.2%, consistent crimping and tinning quality.

3. All-in-One Processing: Automatically completes cutting, stripping, crimping and tinning, reducing manual operation and improving efficiency.

4. User-Friendly Operation: Equipped with HD LCD display for intuitive parameter setting and easy adjustment.

5. Smooth Feeding: High-precision wire straightener ensures stable and smooth wire conveying.

6. Customizable: Support customized length, function and structure to meet diversified production demands.

7. Reliable Quality: Made of premium materials with advanced equipment and strict quality control system.

8. Factory Direct Supply: With years of manufacturing experience, fast quotation, short delivery time and on-time delivery rate up to 99%.

Our Advantages

1. One-stop service from sample making to mass production, reducing R&D cost and accelerating product launch.

2. Professional after-sales team provides one-to-one exclusive service with worry-free after-sales support.

3. Stable performance, durable structure and easy operation, suitable for long-term heavy-duty production.
