Patch Cord Plastic Injection Molding Machine JY-250ST

Patch Cord Plastic Injection Molding Machine, Patch Cord Injection Machine, Patch Cord Making MachineProduct Description

Main Features:

1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure, and screw speed is suitable for various plastic to be confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has left out the attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of the die.
5) Material tube can be lifted. It is easy to clean the stub bar. It is easy to fix the die.
6) Can be installed on a single mold or double shuttle table.

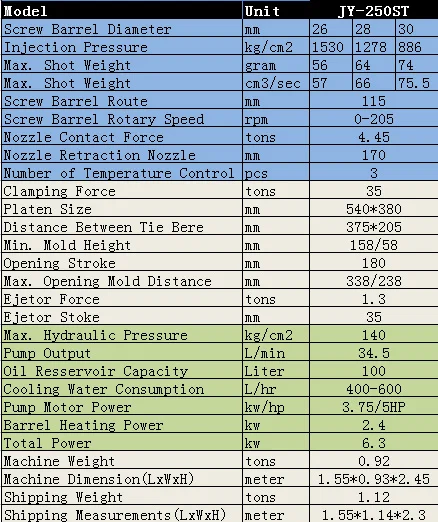

JY-250ST Specification

Mold platen of vertical plastic Injection molding machine

Factory direct, more sizes can be customized according to your needs!

Machine Application
Vertical injection machines have the advantage of low noise, low energy consumption, high efficiency, and long lifetime, it's widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables, auto parts, Plug, etc.
