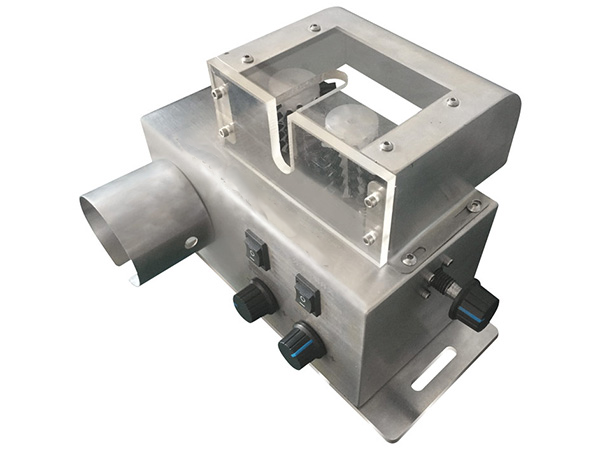

Centrifugal Clamp Heavy‑Duty Wire Separating & Twisting Machine JW‑3008

JW‑3008 is an upgraded patented centrifugal wire separating and twisting machine. It is specially designed for processing stranded and braided shielded wires with stripping length within 30mm. This machine integrates wire separating and wire twisting in one unit, making it an essential equipment for wire processing.

It adopts dual brushes and patented automatic centrifugal clamping device, providing strong brushing performance for high‑demand wires. Equipped with emergency stop and brake function, it effectively reduces intermediate waiting time and improves working efficiency.

Specifications

Model: JW‑3008

Power input: AC 220 /AC 110

Adapter output: DC 24V 6.0A

Wire separating speed: 0–3500rpm adjustable

Wire twisting speed: 0–2000rpm adjustable

Control: Rocker switch + foot pedal

Emergency stop brake: Standard

Working environment: Normal room temperature

Max wire separating length: <30mm (one‑time operation)

Wire twisting length: 10–80mm

Wires over 30mm can be processed in two steps

Features

2‑in‑1 function: wire separating and twisting

Forward and reverse rotation adjustable for separating and twisting

Patented centrifugal clamp with adaptive clamping force

Stable performance, easy operation, high efficiency

Operation

1.Connect power and install foot pedal. Test forward and reverse rotation for 3–5 times to ensure normal running.

2.Insert stripped wire into the brush area, step on the foot pedal to finish wire separating.

3.Put separated copper core into the clamp, select rotation direction, step on pedal and pull wire slowly to complete twisting.

Notes

Check machine condition and accessories before use.

Only trained operators are allowed to use this machine.

Do not disassemble the machine without authorization.

Warranty

Main unit: 1‑year warranty

Main accessories (foot pedal, adapter, centrifugal clamp, etc.): 3‑month warranty

Warranty starts from the date of receipt.

Warranty is void if the machine is damaged due to improper use, unauthorized disassembly, accident or natural disasters.
