Pneumatic Rotary Wire Stripper for 50mm Cables WPM-X600
Model No. WPM-X600Price on request1,803 views
Specifications
- Control System
- Dedicated controller
- Stripping Method
- Rotary peeling
- Stroke
- 0-300mm
- Voltage
- 220V 50-60HZ
- Air Pressure
- 0.5-0.7Mp
- Power
- 200W
- Stripping Diameter
- ø10-ø50mm
- Stripping Tolerance
- ±0.2
- Speed
- 20-40pcs/min
- Size
- 1000x450x350mm
- Weight
- 80KG

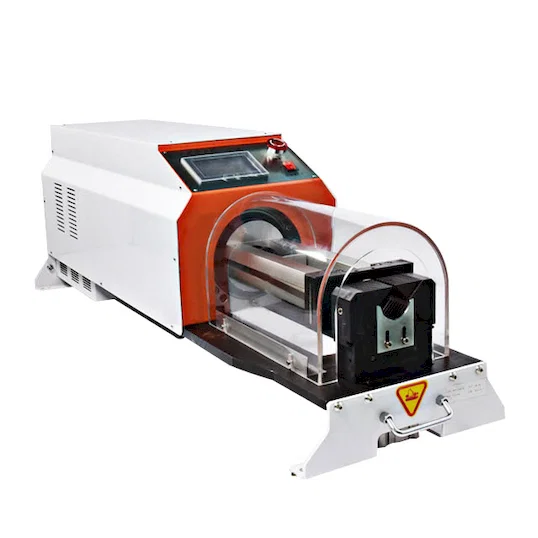

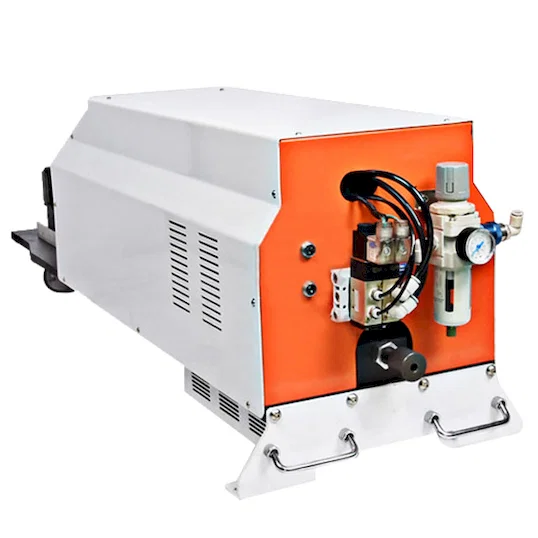

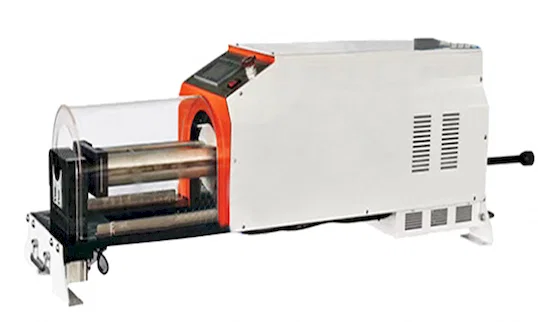

Pneumatic Rotary Wire Stripper for 50mm Cables WPM-X600
The Pneumatic Rotary Wire Peeling Machine is designed for stripping large cables, such as high-precision new energy DC cables. It can handle wires up to 50mm in diameter and strip them up to 100mm in length. Equipped with double blades that can be changed without correction, the machine automatically finds the machining center, greatly increasing productivity.
The Pneumatic Rotary Wire Peeling Machine is designed for stripping large cables, such as high-precision new energy DC cables. It can handle wires up to 50mm in diameter and strip them up to 100mm in length. Equipped with double blades that can be changed without correction, the machine automatically finds the machining center, greatly increasing productivity.
| Control system | Dedicated controller |
| Stripping method | Rotary peeling |
| Stroke | 0-300mm |
| Voltage | 220V 50-60HZ |
| Air pressure | 0.5-0.7Mp |
| Power | 200W |
| Stripping diameter | ø10-ø50mm |
| Stripping tolerance | ±0.2 |
| Speed | 20-40pcs/min |
| Size | 1000x450x350mm |
| Weight | 80KG |

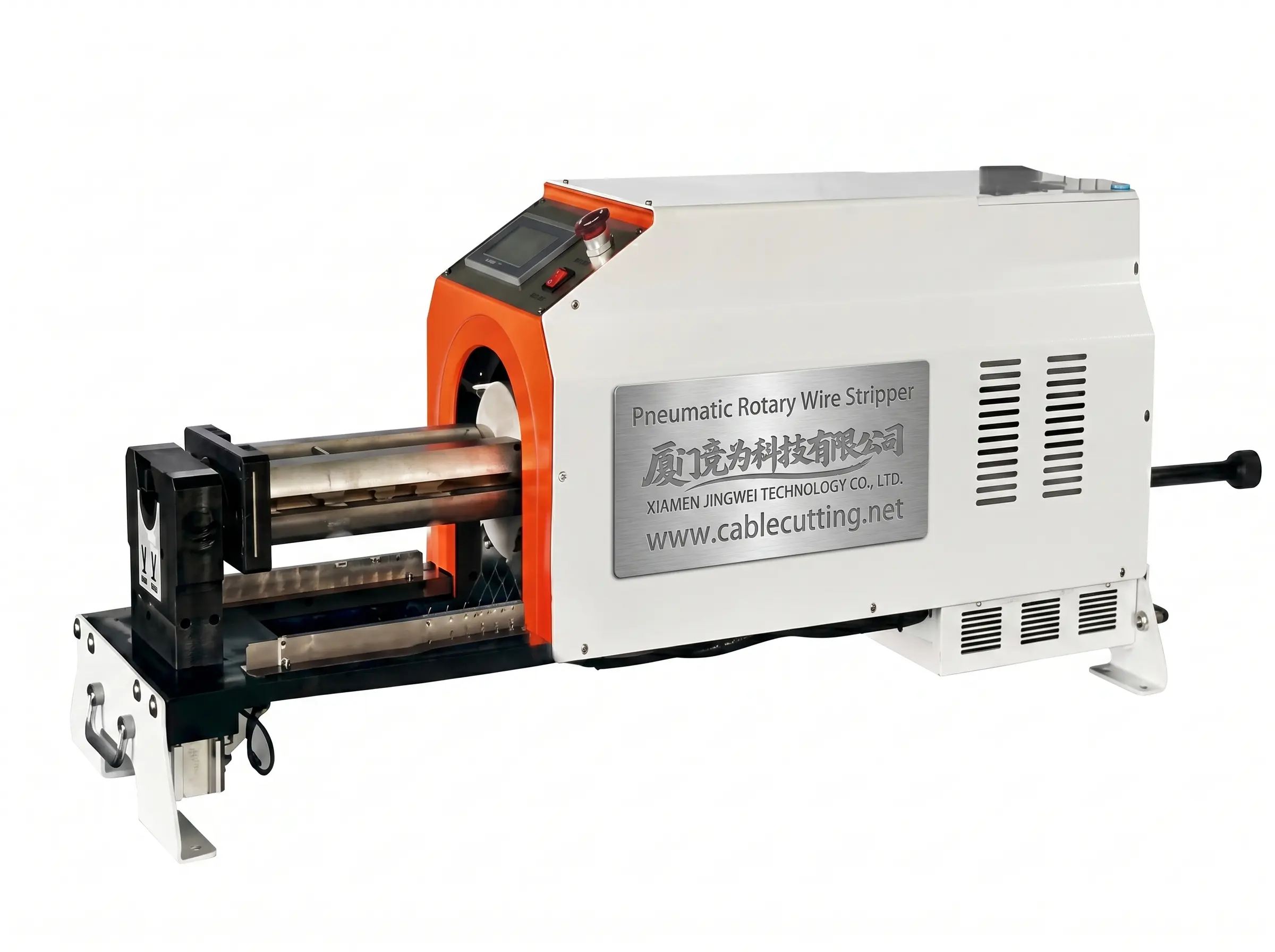

Pneumatic Rotary Wire Peeling Machine WPM-X600
