Touch Screen Tape Winding Machine for Cable Harness JW-303Q
Model No. JW-303QPrice on request1,071 views
Specifications
- Operation Method
- Touch Screen + Foot Switch
- Working Mode
- Manual wire clamping, tape translation, product rotation for tape winding
- Power Supply
- AC210V～AC240V
- Winding Length
- Fixed length (non-standard lengths subject to separate order); maximum length of standard machine is 1000mm
- Winding Combined Wire Diameter
- 3mm-10mm
- Tape Specifications
- Inner diameter 38mm or 32mm, outer diameter ≤100mm, width ≤25mm (custom tape holders available for other tape sizes)
- Tape Types
- PVC, Flannel, Acetate Cloth Tape, etc.
- Operating Temperature
- 0-45℃
- Operating Humidity
- 10-90%RH (no condensation)
- Cooling Method
- Natural Air Cooling

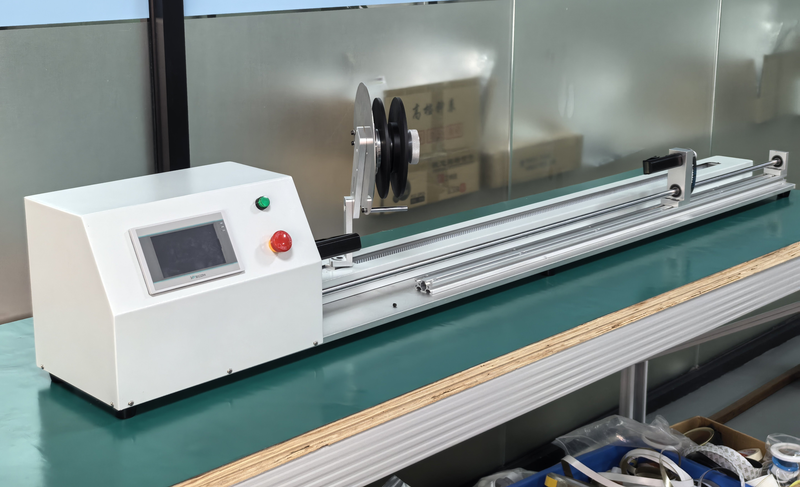

Adhesive Tape Translational Winding Machine Model JW-303Q
Adhesive Tape Translational Winding Machine Model JW-303Q
Product Overview
The JW-303Q is a high-performance adhesive tape translational winding machine designed for precise and efficient tape winding operations. It integrates user-friendly operation with reliable performance, suitable for various tape types and application scenarios requiring stable winding quality.
Technical Parameters
- Operation Method: Touch Screen + Foot Switch
- Working Mode: Manual wire clamping, tape translation, product rotation for tape winding
- Power Supply: AC210V～AC240V
- Winding Length: Fixed length (non-standard lengths subject to separate order); maximum length of standard machine is 1000mm
- Winding Combined Wire Diameter: 3mm-10mm
- Tape Specifications: Inner diameter 38mm or 32mm, outer diameter ≤100mm, width ≤25mm (custom tape holders available for other tape sizes)
- Tape Types: PVC, Flannel, Acetate Cloth Tape, etc.
- Operating Temperature: 0-45℃
- Operating Humidity: 10-90%RH (no condensation)
- Cooling Method: Natural Air Cooling
Configuration List
| Serial No. | Category | Name | Quantity | Unit | Equipped | Brand |
| 1 | Core Components | Stepper Motor | 1 | Piece | Yes | Best |
| 2 | Core Components | Display Screen | 1 | Unit | Yes | Weikong |
| 3 | Core Components | Controller | 1 | Set | Yes | Weinview |
| 4 | Core Components | Driver | 2 | Units | Yes | Best |
| 5 | Core Components | Power Switch | 1 | Piece | Yes | Mean Well |
| 6 | Core Components | Slide Rail | 1 | Set | Yes | Domestic Brand |
| 7 | Tools & Accessories | Hex Key Wrench | 1 | Set | Yes | Yuda |
| 8 | Tools & Accessories | Power Cord | 1 | Piece | Yes | Changde |
| 9 | Tools & Accessories | Foot Pedal | 1 | Piece | Yes | Changde |
2.5 Wire Diameter Wrapping Cloth Base Tape, 19mm Width

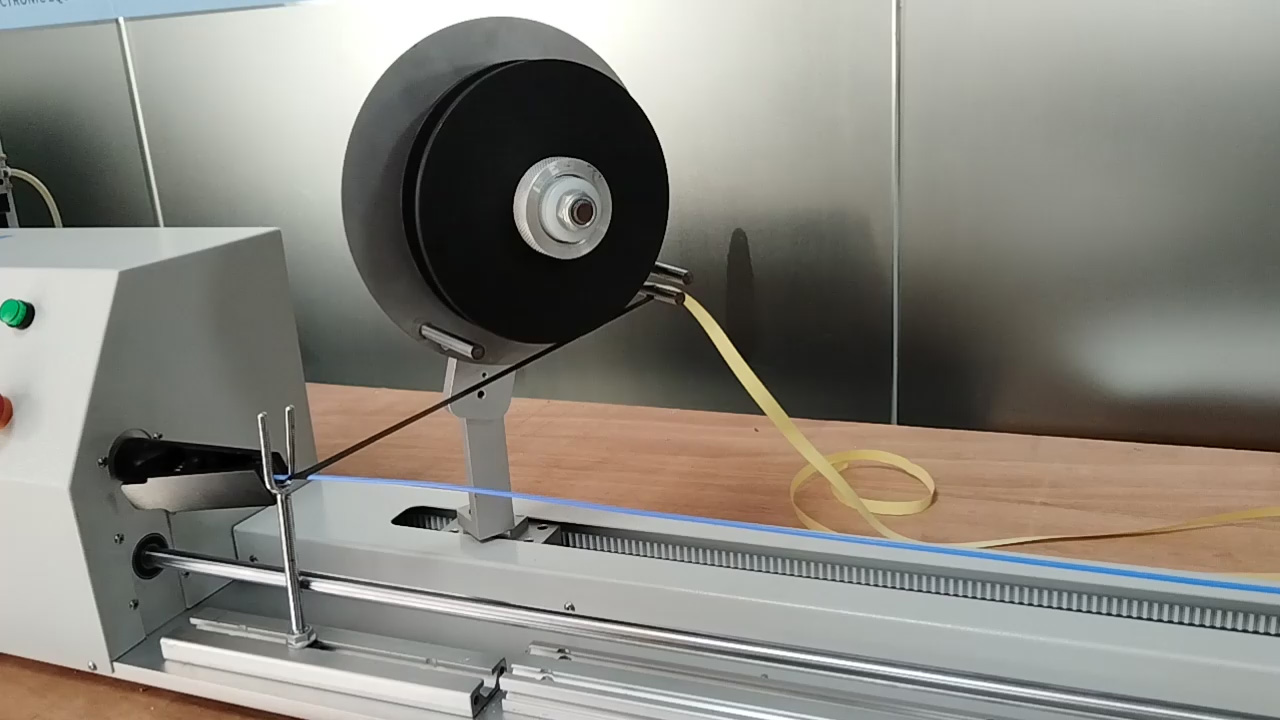

U-Shaped Fixture for Preventing Wire from Being Pulled Away by Adhesive Tape
