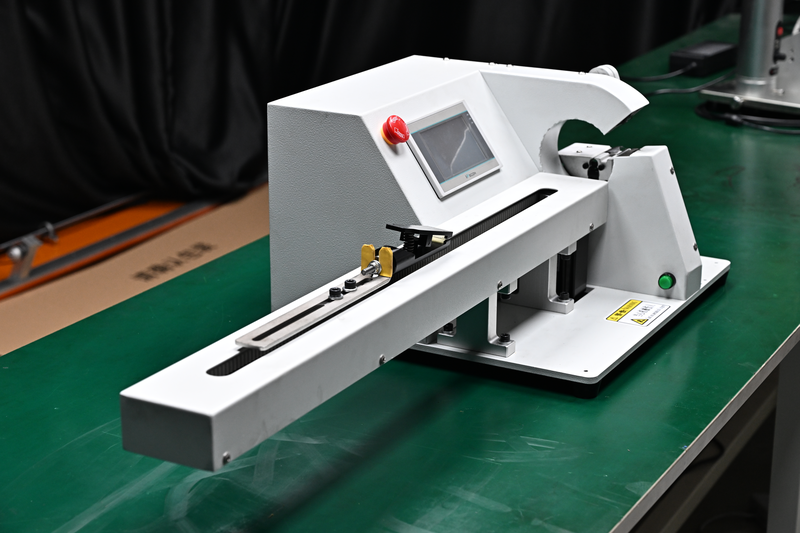

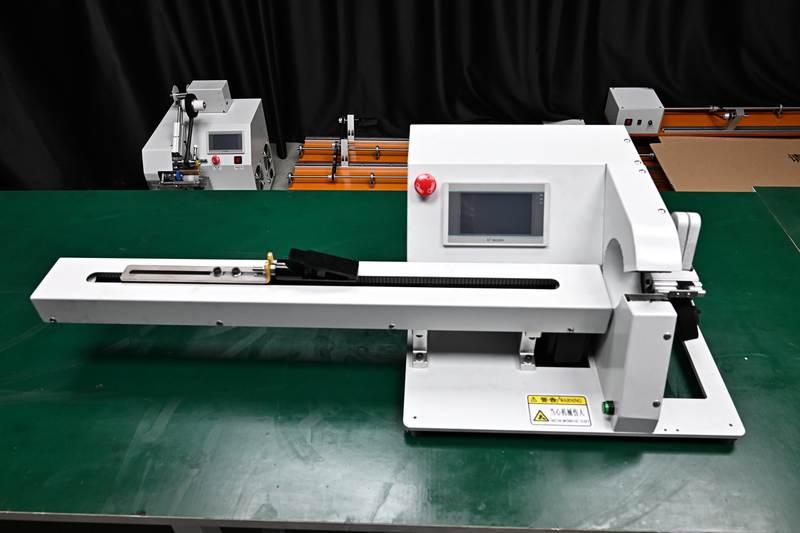

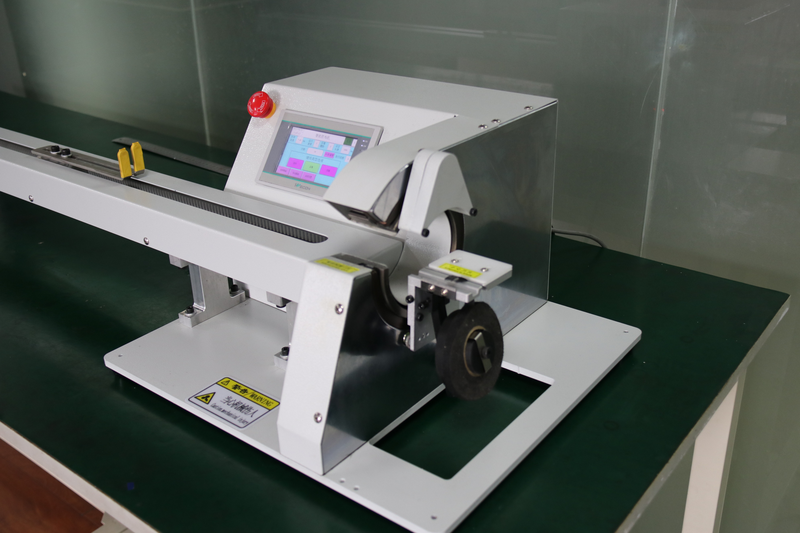

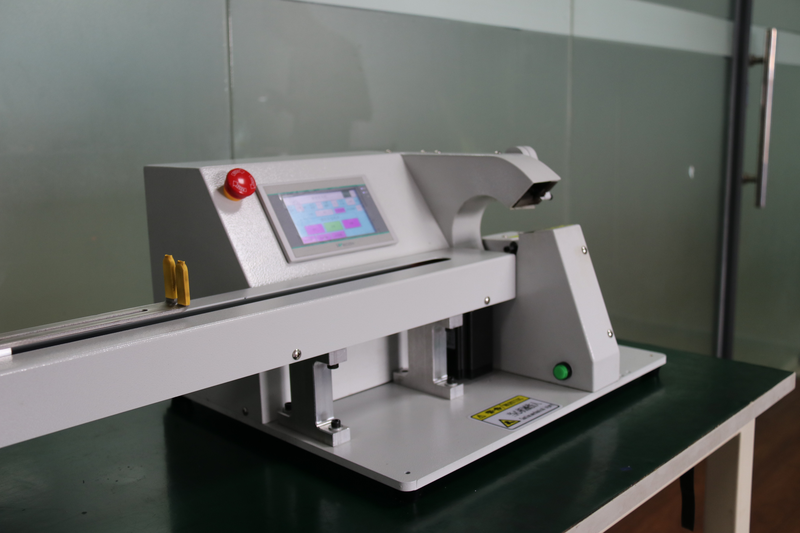

Single-Side Wire Pulling Adhesive Tape Wrapping Machine JW-303K-1.0m
Model No. JW-303K-1.0mPrice on request1,120 views
Specifications
- Applicable Wire Diameter
- Ф3mm - 25mm
- Adhesive Tape Compatibility
- Maximum outer diameter: 110mm, Width: 9mm - 30mm, Inner hole: Ф38 (default); Ф32/Ф76 available on custom request
- Wrapping Performance
- Wrapping length: 1050mm (customizable), Stopping position accuracy: ±1mm, Wrapping density: Adjustable via machine parameter settings
- Main Machine Speed
- 200 - 1400 rpm (stepless adjustable)
- Power Supply
- AC220V/DC24V 50/60HZ; 110V optional
- Dimensions & Weight
- Machine size: 1470mm × 380mm × 280mm (net weight: 36KG), Export wooden case size: 1640mm × 470mm × 440mm (gross weight: 60KG)
- Suitable Tape Types
- PVC tape, plush tape, cloth-based tape, high-temperature tape, mica tape, ceramic tape
Adhesive Tape Wrapping Machine with Single-Side Wire Pulling
Model: JW-303K-1.0m
1. Overview
The JW-303K-1.0m is a professional adhesive tape wrapping equipment integrated with single-side wire pulling function. It adopts a user-friendly touchscreen operation system and spiral wrapping method, designed to meet high-precision wrapping requirements for various wire harnesses. With flexible parameter adjustment and wide compatibility with tape types, it is an ideal solution for wire harness processing in industrial scenarios.
2. Core Specifications
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
3. Key Functions
- Multiple Wrapping Modes: Supports full wrapping, interval wrapping, and spot wrapping. The overlap area of the tape can be freely adjusted according to processing needs.
- Precision Control: Enables accurate setting of tape wrapping length, with a stopping position accuracy of ±1mm, ensuring consistent quality for multi-segment wrapping requirements.
- User-Friendly Operation: Equipped with a touchscreen interface for intuitive parameter input (e.g., wrapping density, length, speed) and real-time operation monitoring, reducing operational complexity.
4. Application Scenarios
This machine is specifically designed for processing wire harnesses that require precise tape wrapping, including:
- Collection wire harnesses
- Multi-branch wire harnesses
- Wire harnesses with specified tape wrapping lengths
- Wire harnesses needing accurate stopping positions for multi-segment wrapping
It is widely applicable in industries such as electronics, automotive, and electrical engineering, where high-precision wire harness insulation
