Automatic Tape Winding Machine for Thin Wires, Touch Screen JW-850C
Model No. JW-850CPrice on request2,665 views
Specifications
- Machine Model
- JW-850C
- Machine Type
- Automatic Tape Winding Machine
- Operation Method
- Touch Screen
- Effective Winding Stroke
- Within 1m
- Applicable Wire Diameter
- 3-10mm
- Tape Inner Hole Size
- Standard Ф38 (Other sizes like Ф32, Ф76... need to be informed in advance)
- Main Machine Speed
- Adjustable up to 4500 rpm
- Applicable Tapes
- PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, especially suitable for mica tape, ceramic tape, acetate tape and other tapes with base paper
- Voltage
- AC220V/DC24V 50/60HZ, 110V optional
- Maximum Tape Outer Diameter
- ≤110mm
- Medium Speed Performance
- 1m full winding in 15 seconds, first section margin ≥15mm, tail margin ≥10mm
- Adjustable Speed Range
- 0-30
- Machine Dimensions
- 1830*600*1080mm
- Gross Weight
- 300KG; Wooden Case Dimensions: 1910*750*1300mm, Gross Weight with Case: 348KG
- Optional Accessories
- Paper Collector, Safety Light Curtain
- Machine Functions
- Spot Winding, Full Winding

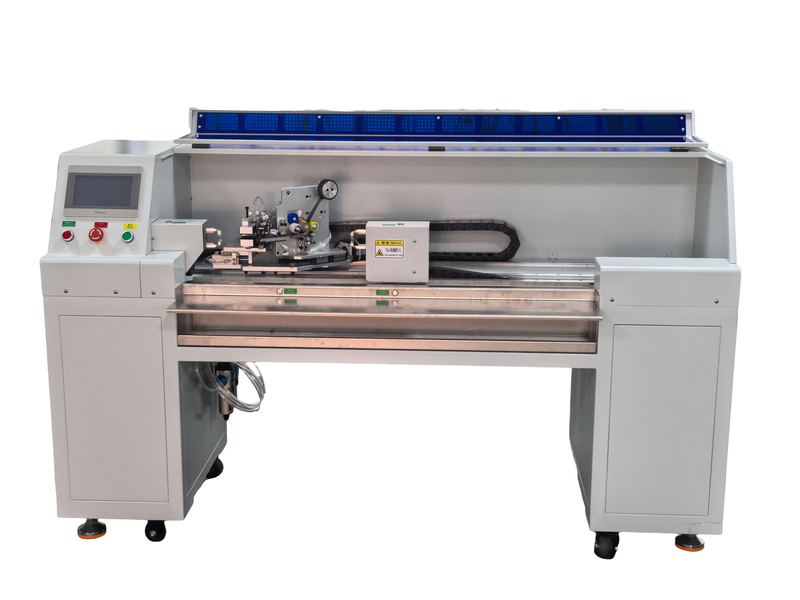

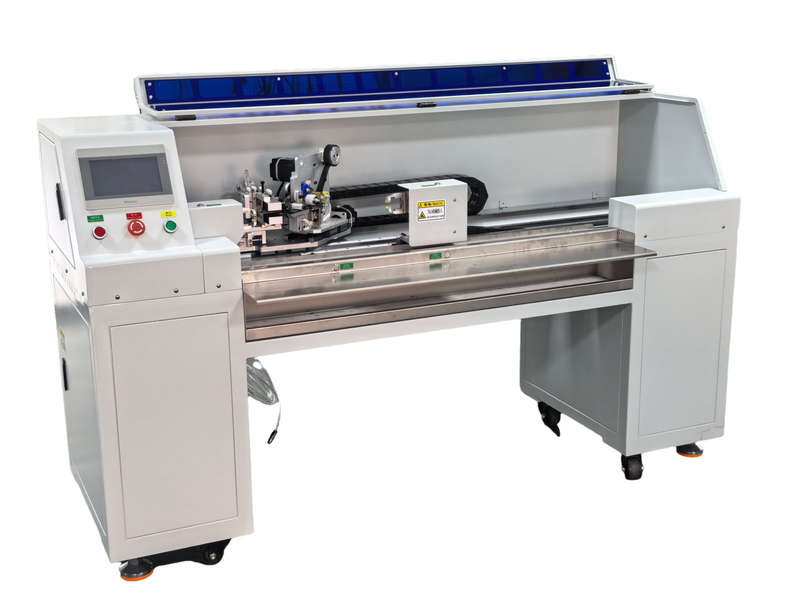

JW-850C Automatic Tape Winding Machine
Machine Overview
The JW-850C is a high-performance automatic tape winding machine featuring touch screen operation. It is specially designed for thin wires, adopting pneumatic wire clamping for convenient operation. With double-ended rotation to reduce wire twisting, it realizes automatic tape pasting, feeding and cutting, greatly reducing manual operation and saving costs.
Technical Parameters
- Machine Model: JW-850C
- Machine Type: Automatic Tape Winding Machine
- Operation Method: Touch Screen
- Effective Winding Stroke: Within 1m
- Applicable Wire Diameter: 3-10mm
- Tape Inner Hole Size: Standard Ф38 (Other sizes like Ф32, Ф76... need to be informed in advance)
- Main Machine Speed: Adjustable up to 4500 rpm
- Applicable Tapes: PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, especially suitable for mica tape, ceramic tape, acetate tape and other tapes with base paper
- Voltage: AC220V/DC24V 50/60HZ, 110V optional
- Maximum Tape Outer Diameter: ≤110mm
- Medium Speed Performance: 1m full winding in 15 seconds, first section margin ≥15mm, tail margin ≥10mm
- Adjustable Speed Range: 0-30
- Machine Dimensions: 1830*600*1080mm
- Gross Weight: 300KG; Wooden Case Dimensions: 1910*750*1300mm, Gross Weight with Case: 348KG
- Optional Accessories: Paper Collector, Safety Light Curtain
- Machine Functions: Spot Winding, Full Winding
Machine Features
- Convenient Operation: Pneumatic wire clamping design is especially suitable for thin wires, simplifying operation procedures.
- Anti-Twisting Design: Double-ended rotation structure effectively reduces wire twisting, improving winding quality.
- High Automation: Integrates automatic tape pasting, feeding and cutting functions, reducing labor input and cost.
- Flexible Winding Modes: Supports both spot winding and full winding to meet diverse production needs.
- Reliable Configuration: Adopts well-known brand electrical components to ensure stable and durable operation.

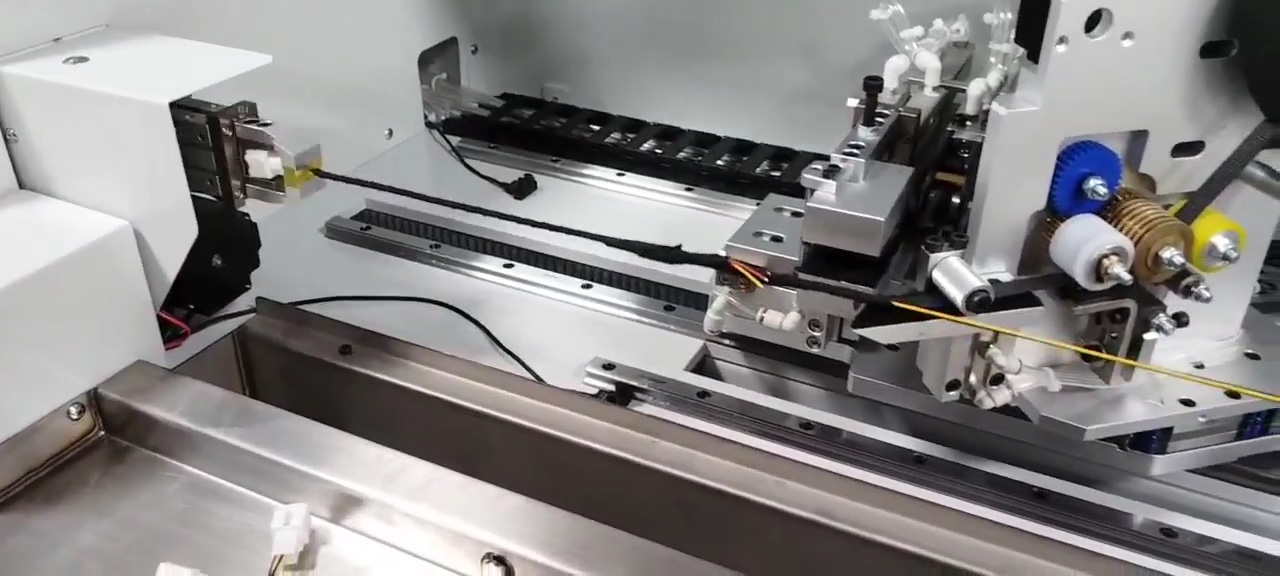

Automatic Multi-Section Adhesive Tape Wrapping Machine - Simultaneous Precise Wrapping for Multiple Sections

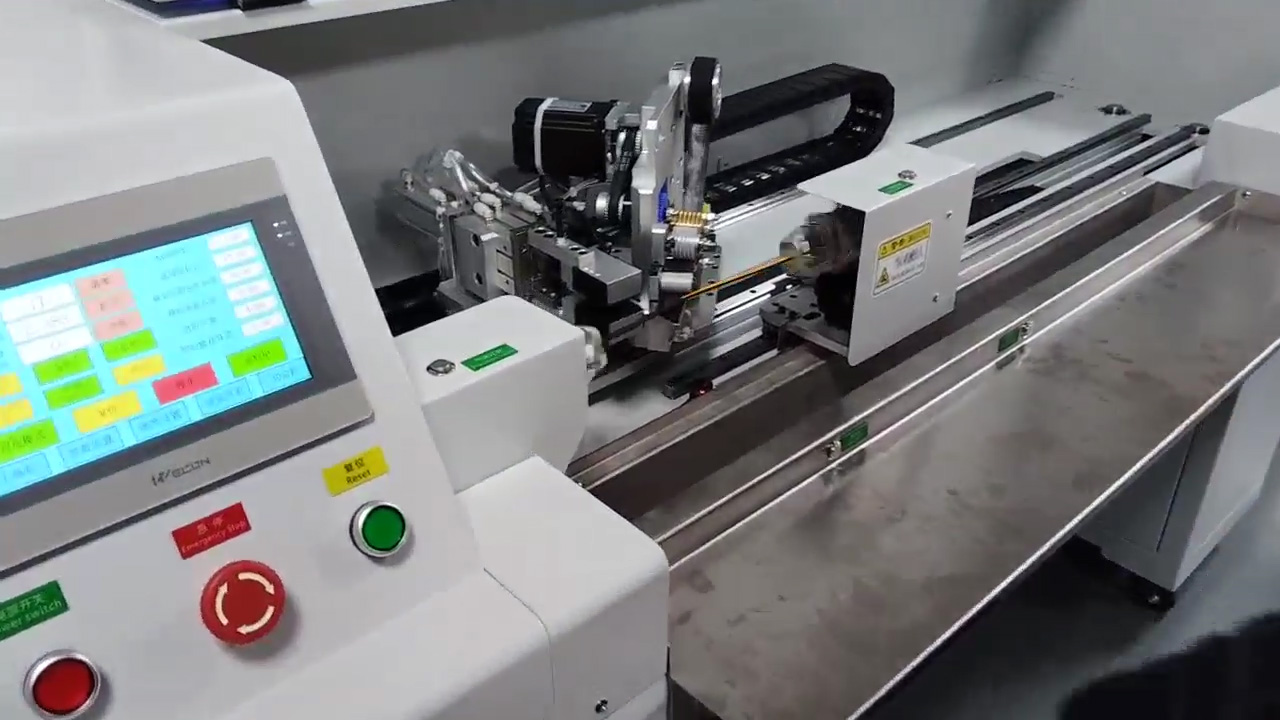

Automatic Short-Line with Tail Wire Adhesive Tape Wrapping Machine - Precise Wrapping for Short Wires
