Automatic Tape Winding Machine with Double-Side Wire Drawing JW-303KL-1m
Model No. JW-303KL-1mPrice on request2,261 views
Specifications
- Operation Method
- Touch Screen
- Winding Mode
- Spiral Winding
- Applicable Wire Diameter
- Ф3mm-25mm
- Maximum Tape Outer Diameter
- 110mm
- Tape Width
- 9-30mm
- Winding Length
- 1050mm (Customizable)
- Tape Winding Density
- Adjustable via machine parameter setting
- Tape Inner Hole Size
- Standard Ф38 (Other sizes available)
- Main Machine Speed
- 200-1400 rpm (Adjustable)
- Applicable Tapes
- PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, Mica Tape, Ceramic Tape
- Voltage
- AC220V/DC24V 50/60HZ, 110V Optional
- Machine Dimensions
- 2780×380×280mm
- Net Weight
- 48KG
- Packaging Dimensions
- Export Wooden Case 1790×470×440mm
JW-303KL-1m Tape Winding Machine + Double-Side Wire Drawing
JW-303KL-1m Tape Winding Machine + Double-Side Wire Drawing
Machine Overview
The JW-303KL-1m is a high-precision tape winding equipment integrated with double-side wire drawing function. It adopts a user-friendly touch screen operation and spiral winding method, suitable for various professional wire harness winding scenarios that require precise position control and flexible winding modes.
Technical Parameters
- Machine Model: JW-303KL-1m
- Operation Method: Touch Screen
- Winding Mode: Spiral Winding
- Applicable Wire Diameter: Ф3mm-25mm
- Maximum Tape Outer Diameter: 110mm
- Tape Width: 9-30mm
- Winding Length: 1050mm (Customizable for longer or shorter lengths)
- Tape Winding Density: Adjustable via machine parameter setting
- Tape Inner Hole Size: Standard Ф38 (Other sizes such as Ф32, Ф76... need to be informed in advance)
- Main Machine Speed: 200-1400 rpm (Adjustable)
- Applicable Tapes: PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, Mica Tape, Ceramic Tape, etc.
- Voltage: AC220V/DC24V 50/60HZ, 110V Optional
- Machine Dimensions: 2780380280mm, Net Weight: 48KG
- Packaging Dimensions: Export Wooden Case 1790470440mm
Machine Functions
- Multiple Winding Modes: Supports full winding, spaced winding and spot winding. The overlap area of the tape is adjustable according to actual needs.
- High Precision Control: Achieves ±1mm accuracy for stop position, meeting the strict requirements of wire harness winding length and position control.
- Wide Application Scope: Suitable for collection wire harnesses, multi-branch wire harnesses, wire harnesses with specified tape winding lengths, and multi-section wire harnesses that require precise stop positions.
Would you like me to adjust the terminology style (e.g., more technical or concise) or add product selling points for promotional use? I can also optimize the structure to fit your sales materials or official website display needs.

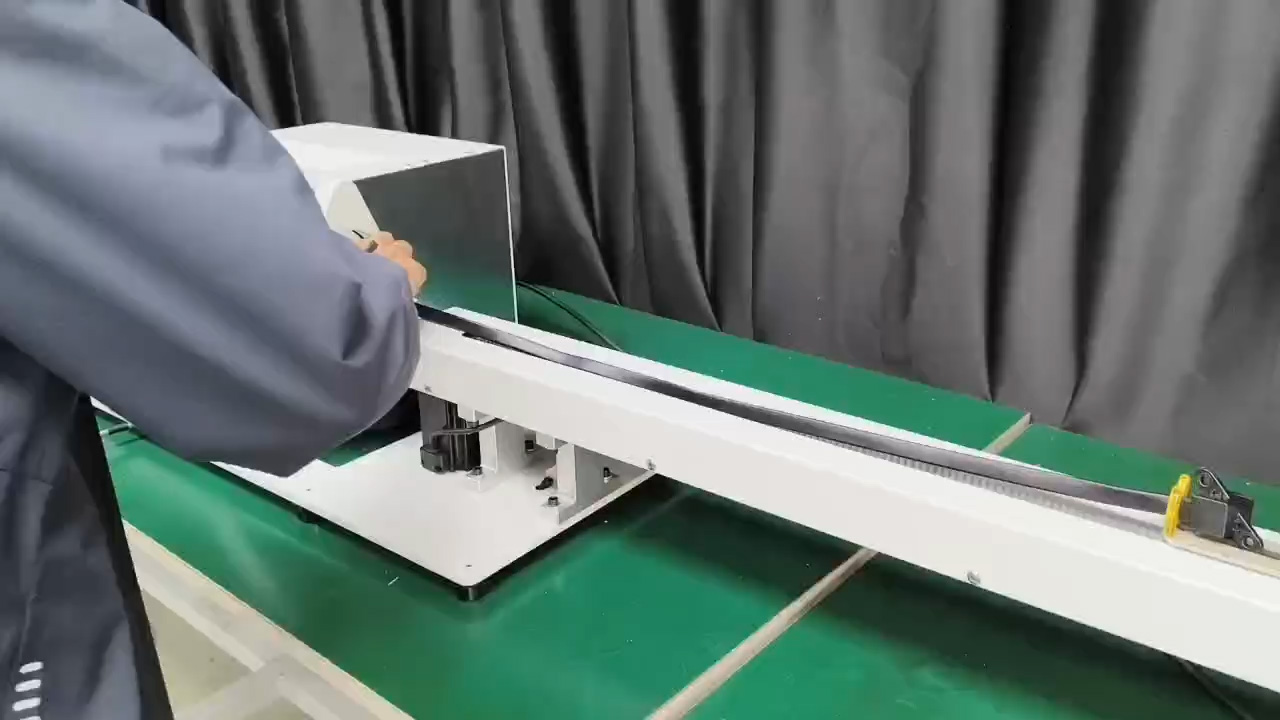

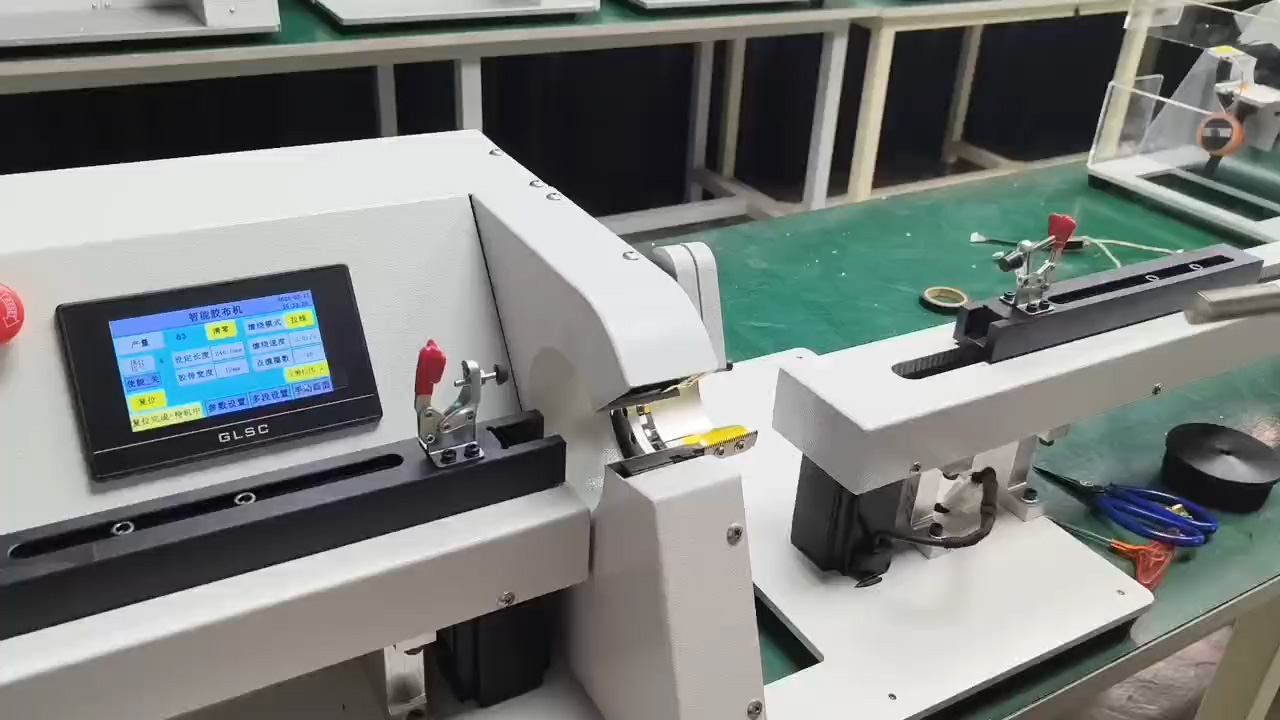

Tape Winding Machine + Double-Side Wire Drawing JW-303KL-1m
