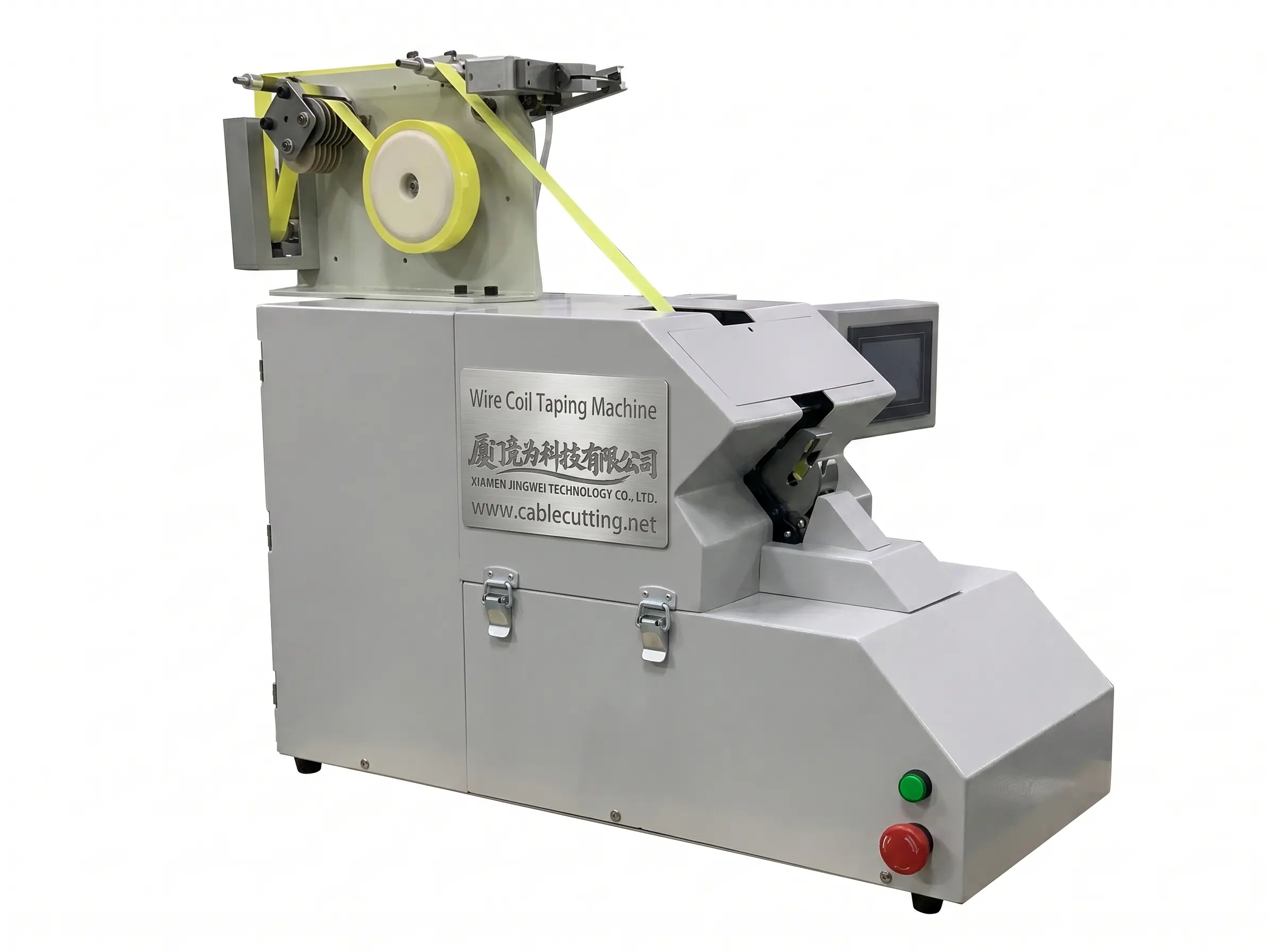

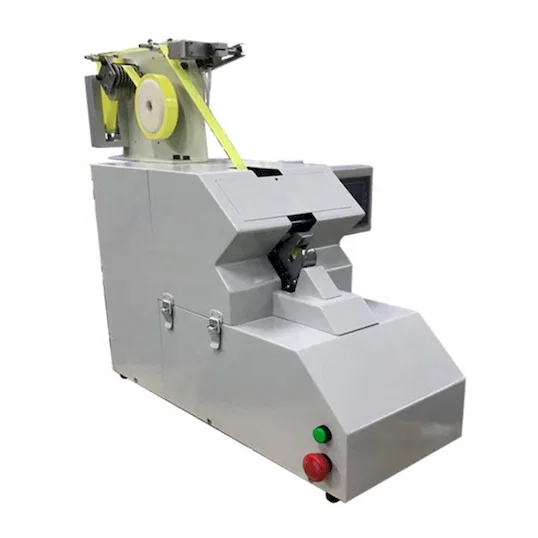

Semi-Automatic 1.5S Wire Coil Taping Machine WPM-75

1.5S Taping Machine for Wire Coils, Semi-automatic adhesive tape wrapping wire coil machine
Product Description
This is a semi-automatic tape wrapping-around machine for taping wire coils. The taping speed is within 1.5s.
1. Taping speed: within 1.5s
2. Applicable tape width: 12mm-18mm
3. Max tape OD: 120mm
4. Tape cutting range: 45mm-75mm
5. Replace the adhesive tape: the old and new adhesive tapes are bonded end to end.
6. The taping tightness is subject to the existing mold. If there is a special product, it is necessary to customize the reel according to the product size.
7. The vulnerable parts of this machine are paper-cutting scissors, paper rolls, and contact switches.
8. Other electrical components are guaranteed for one year, except for damage caused by man-made and irresistible factors.
Specification
Model Number WPM-75
Usage WINDING
Application wire coil-tapping
Taping speed 1.5S
Tape inner diameter 76mm
Tape outer diameter Max 120mm
Voltage 220v 50hz, 0.55kw
Cutting length 45-75 mm
Tape width 12-18mm
Air pressure 4kg/cm2
Size 670x390x480 mm
Weight 30kg
