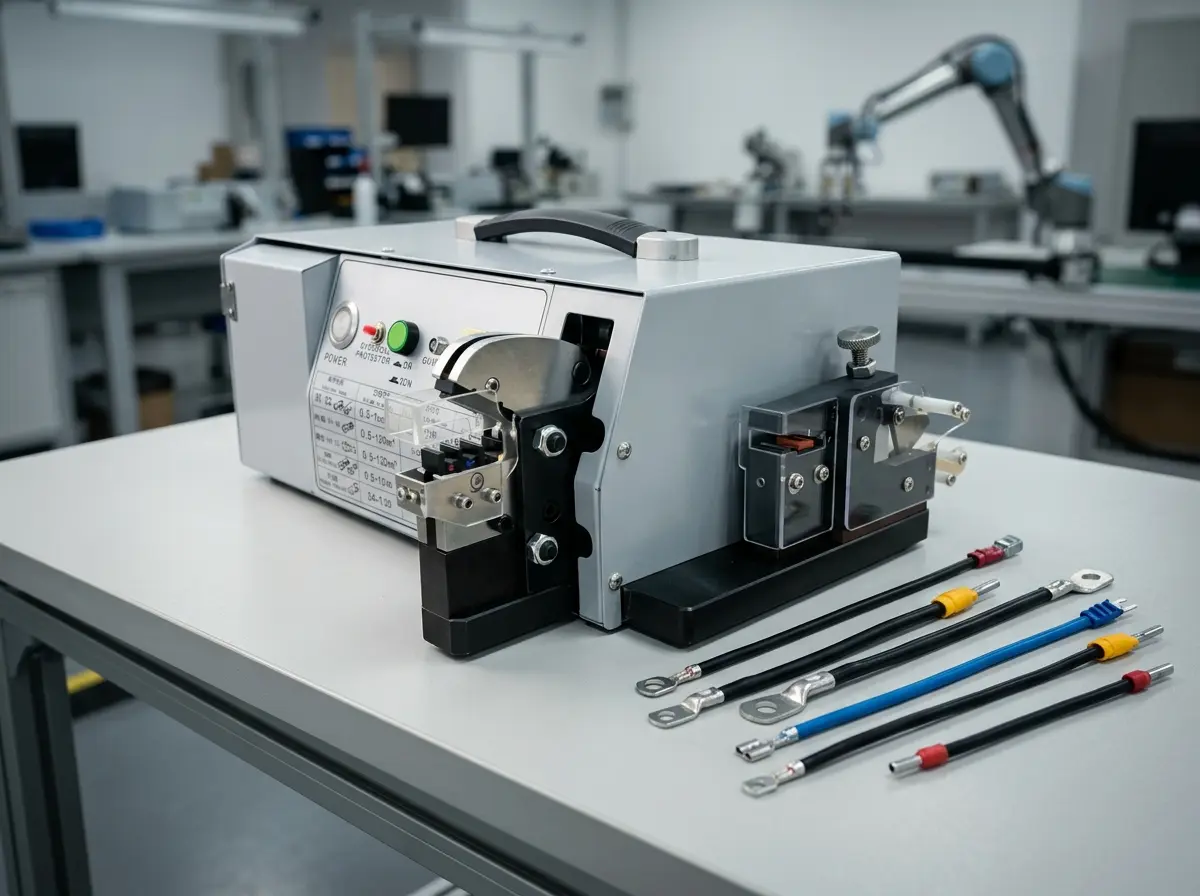

Electric Terminal Crimping Machine 3T Output, 0.5-120mm² EM-50B2BC / EM-50B1BC

Heavy-Duty Electric Terminal Crimping Machine up to 120mm² with Stripping & Cutting Function EM-50B2BC / EM-50B1BC
The EM-50B2BC / EM-50B1BC series is a heavy-duty electric terminal crimping machine built for solderless electrical connections. With a powerful 3-ton crimping force, it handles cold-press terminals from 0.5mm² up to 120mm² — far beyond standard bench crimpers — while integrating wire stripping and cutting functions into one compact unit. Labor-saving, fast, and consistent, it is the ideal replacement for manual crimping tools in demanding production environments.
Supplied with seven precision, replaceable die sets, the machine adapts quickly to a wide variety of terminal types. Driven by a fixed-speed motor, the series delivers high efficiency and high quality in both crimping force and crimping speed, making it the best choice for medium to large production quantities — especially when many different kinds of terminals need to be processed on a single machine.
Two Models to Match Your Power Supply and Crimping Needs
EM-50B2BC (AC 200–230V): The high-capacity version, crimping non-insulated terminals up to 50mm² and tubular terminals up to 120mm² — ideal for heavy-gauge cable lugs and large power cables.
EM-50B1BC (AC 100–125V): The 110V version for regions with lower voltage supply, crimping insulated terminals up to 25mm² — perfect for standard cabinet wiring and control panel work.
Both models share the same 3T output, stripping range (≤6mm²), cutting range (≤10mm²), compact dimensions, and 21kg weight, so your choice depends only on your local voltage and terminal size requirements.
Key Features
High-Capacity Crimping up to 120mm²: The EM-50B2BC crimps tubular terminals up to 120mm² and non-insulated terminals up to 50mm², covering heavy-duty power cable applications that ordinary crimpers cannot handle.

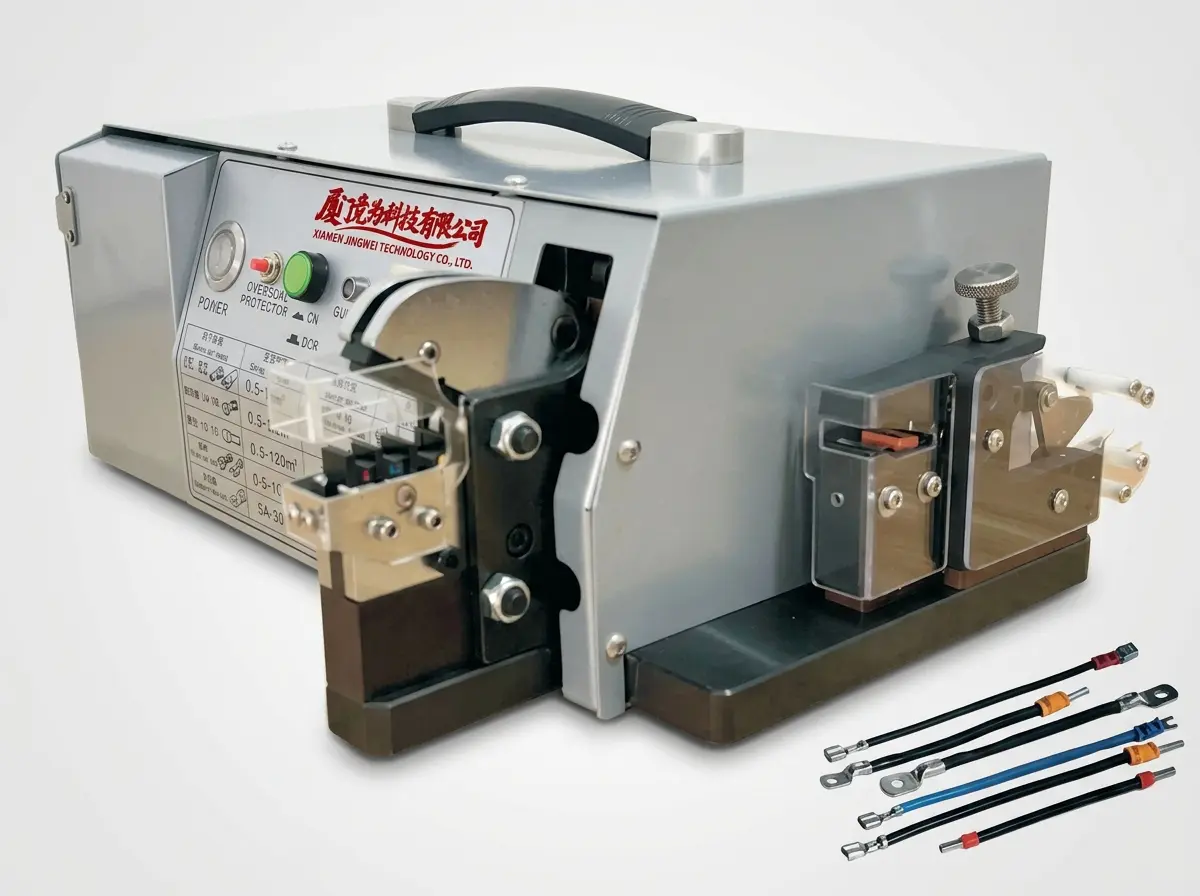

3-in-1 Functionality: Terminal crimping, wire stripping, and wire cutting in one machine, with dedicated crimping, stripping, and cutting mouths plus an adjusting knob for quick setup.
Powerful 3T Output: A 3-ton crimping force delivers tight, reliable, gas-proof crimps on large cross-section terminals every cycle.
7 Interchangeable Die Sets: Seven precision die sets are included as standard and can be swapped in seconds to match different terminal types and sizes.
Fast Crimping Cycle: Just 1.5 seconds per crimp at 60Hz (1.8 seconds at 50Hz), keeping medium and large batch production moving at high speed.
Motor-Driven Consistency: The fixed-speed motor drive guarantees stable crimping force and speed, eliminating the inconsistency and fatigue of manual crimping.

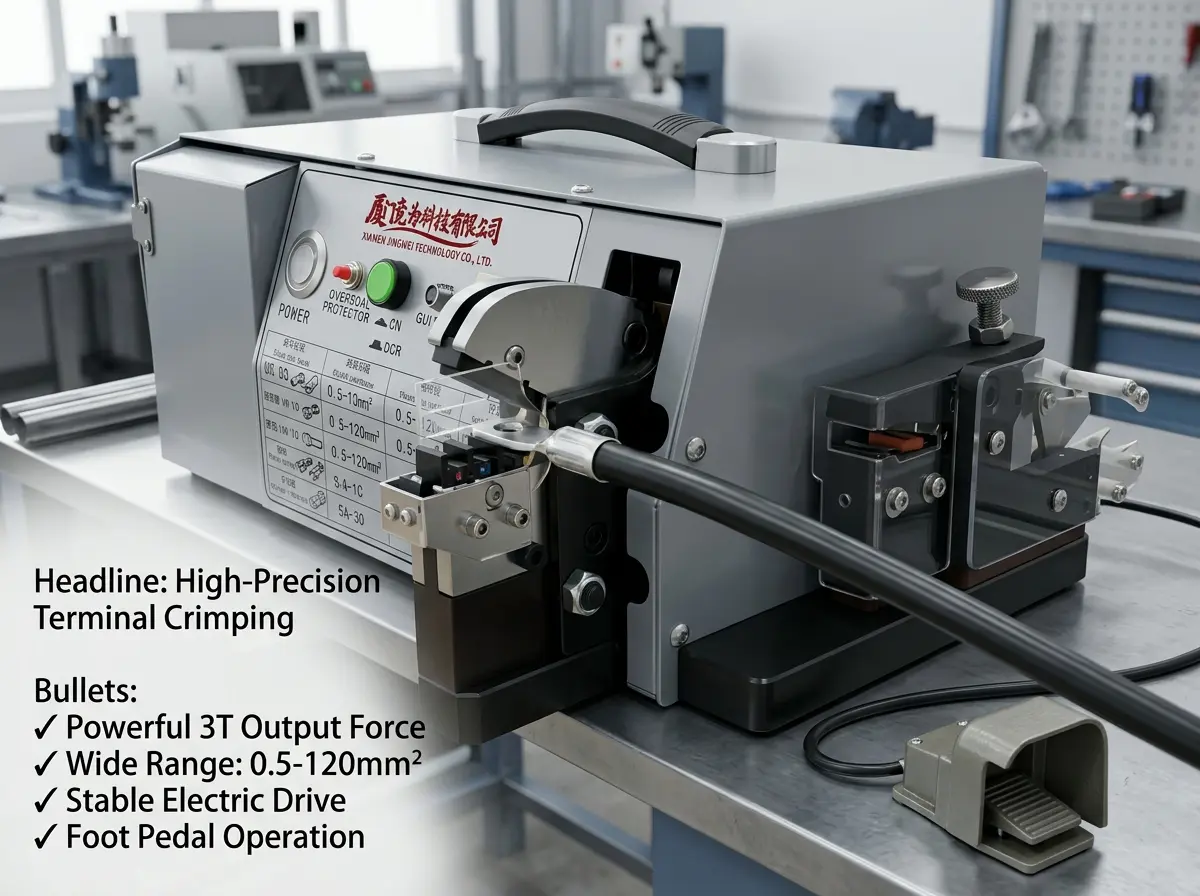

Operator-Friendly Design: Foot switch operation, built-in counter, overload protection, condition display, CW/CCW switch, tool box, and carry handle — everything needed for safe, productive daily operation.
Typical Applications
Power distribution and switchgear manufacturing — heavy-gauge cable lug crimping up to 120mm²
Electrical cabinet and control panel wiring — reliable crimping of insulated and non-insulated terminals
Wire harness and cable assembly workshops — medium to large batch crimping with frequent die changes
Renewable energy and industrial equipment wiring — large cross-section power cable termination
