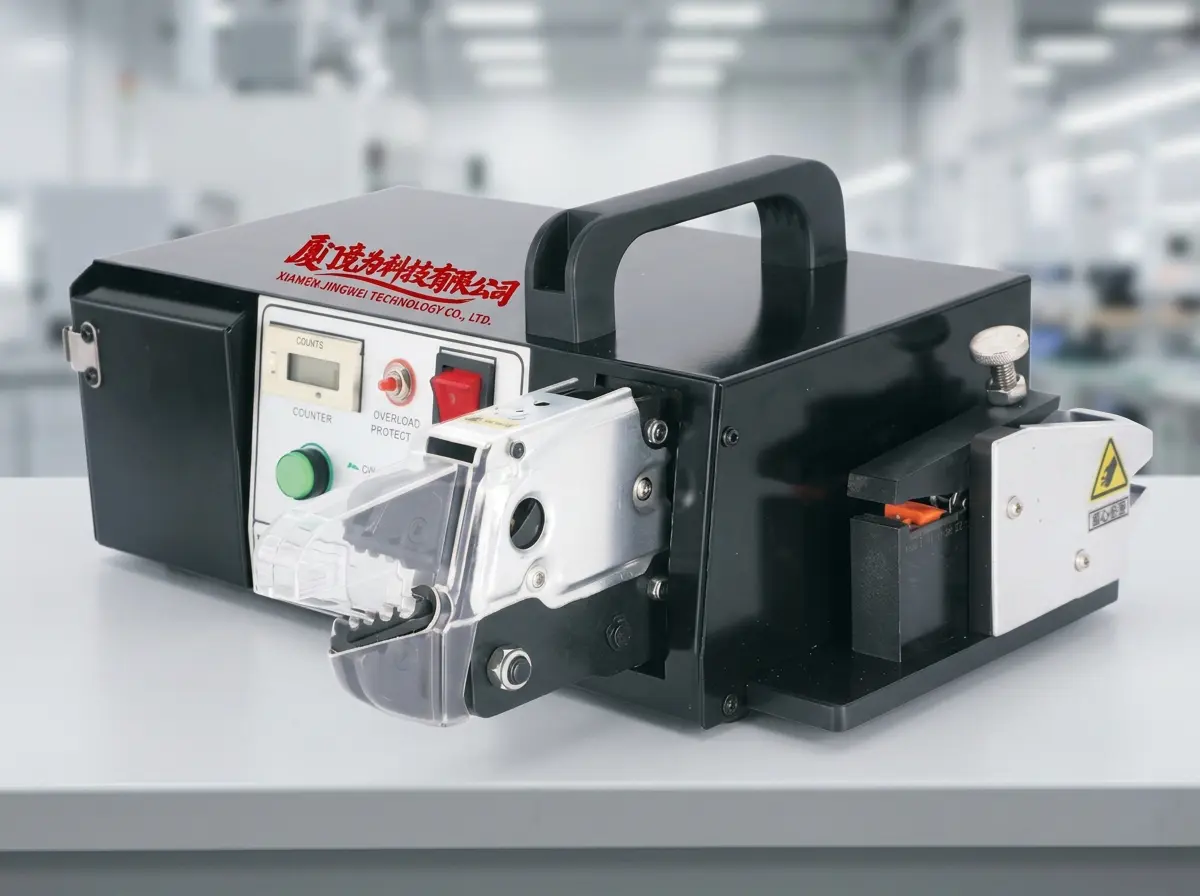

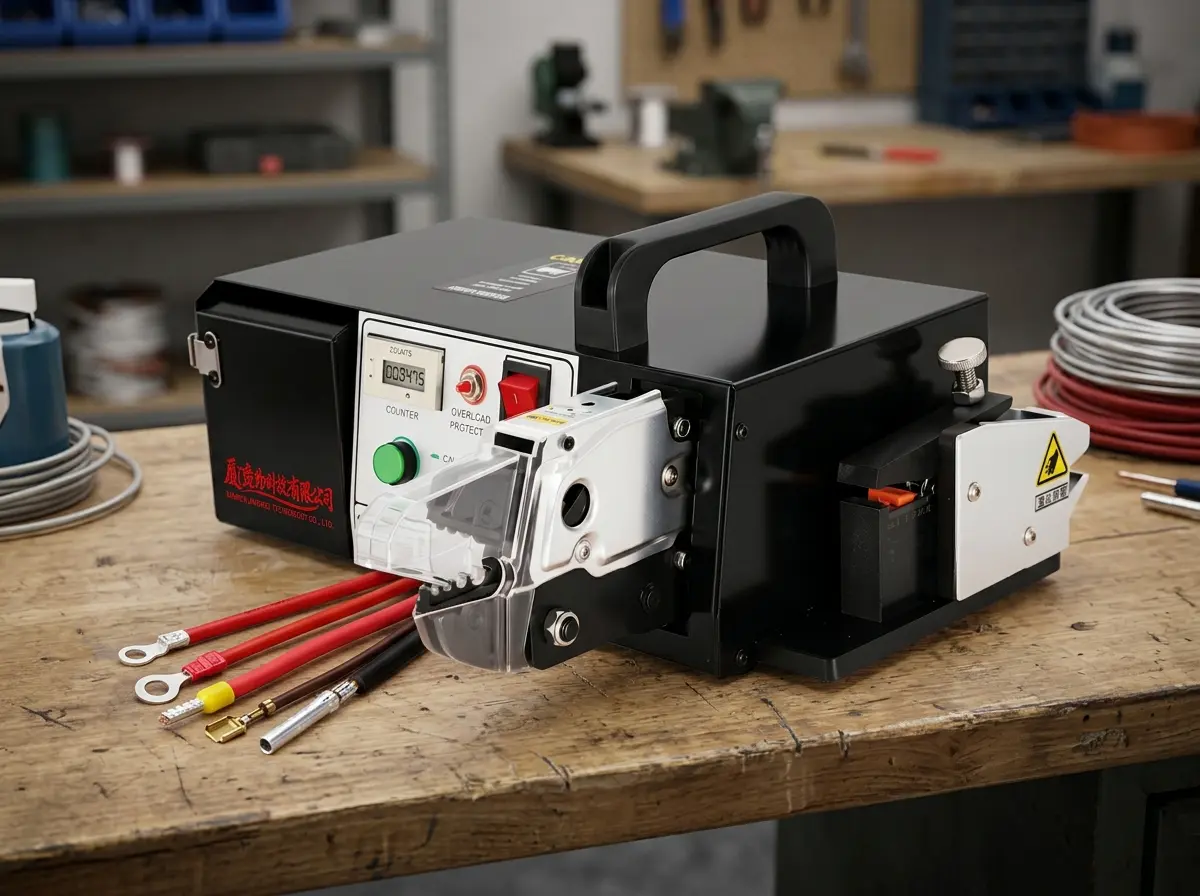

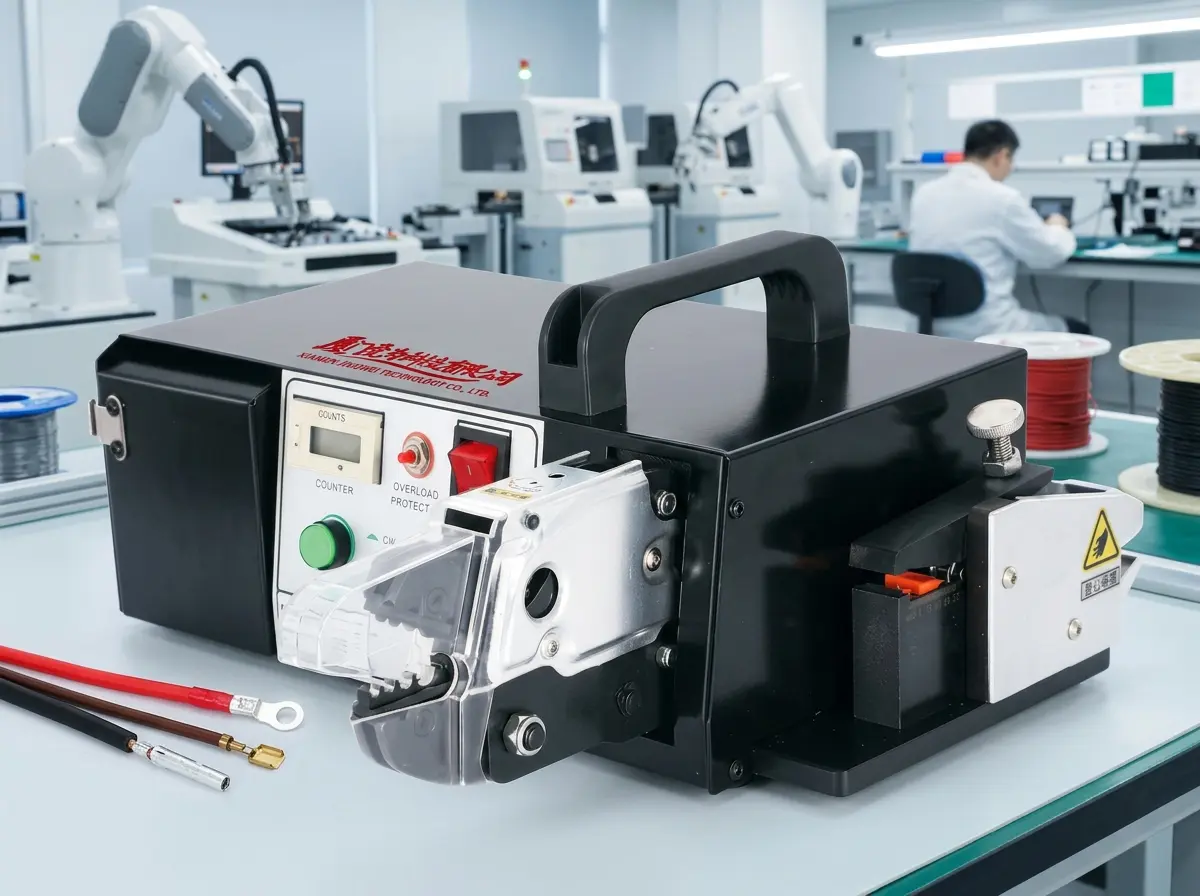

Multi-Function Electric Terminal Crimping Machine 0.25-10mm² EM-6B2BC

Electric Terminal Crimping Machine with Wire Stripping & Cutting Function, 8 Die Sets EM-6B2BC
The EM-6B2BC is an all-in-one electric terminal crimping machine designed for solderless electrical connections in cabinet and control panel assembly. It crimps pre-insulated terminals from 0.25mm² to 10mm² and cuts Cu/Al conductors up to 7mm — and goes one step further than standard crimpers by integrating wire stripping and cutting functions into a single compact unit. Labor-saving, fast, and consistent, it is the ideal replacement for manual crimping tools.
Supplied with eight precision, replaceable die sets, the machine adapts in seconds to a wide variety of terminal types. Driven by a fixed-speed motor, the EM-6B2BC delivers high efficiency and high quality in both crimping force and crimping speed, making it the best choice for medium to large production quantities — especially when many different kinds of terminals need to be processed on one machine.
Key Features
3-in-1 Functionality: Combines terminal crimping, wire stripping, and wire cutting in one machine — a dedicated stripping port, cutting port, and stripping adjustment knob eliminate the need for separate hand tools.
Wide Crimping Range: Handles pre-insulated terminals from 0.25mm² to 10mm², plus Cu/Al cutting capability up to 7mm, covering the most common terminal sizes in cabinet wiring.
8 Interchangeable Die Sets: Eight precision die sets are included as standard and can be swapped quickly to crimp ferrules, twin ferrules, insulated/non-insulated O or Y type terminals, male/female receptacles, and rectangular connector pins.
Motor-Driven Consistency: The fixed-speed motor drive ensures stable crimping force and speed on every cycle, removing the inconsistency and fatigue of manual crimping.
Foot Switch Operation: Hands-free foot switch control keeps the operator’s hands free to position terminals and wires accurately, ideal for medium-batch production.
Compact and Portable: A small 325×265×150mm footprint with a built-in carry handle allows the unit to move easily between workstations.
Built-in Protection & Counter: Overload protection safeguards the machine, while the integrated counter tracks production quantities, and a CW/CCW switch adds operating flexibility.
Standard Die Sets Reference
Ferrules: 0.25–35mm²
Twin Ferrules: 2×0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0mm²
Insulated O Type or Y Type Terminals: 0.25, 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²
Non-Insulated O Type or Y Type Terminals: 0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0mm²
Male or Female Receptacles: 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²
Contact Pins for Rectangular Connectors: 0.5, 1.0, 2.0, 4.0mm²
Typical Applications
Electrical cabinet and control panel wiring — crimping, stripping, and cutting with a single station
Wire harness manufacturing — medium to large batch terminal crimping with frequent die changes
Electrical installation and maintenance workshops — a portable all-in-one crimping, stripping, and cutting station
