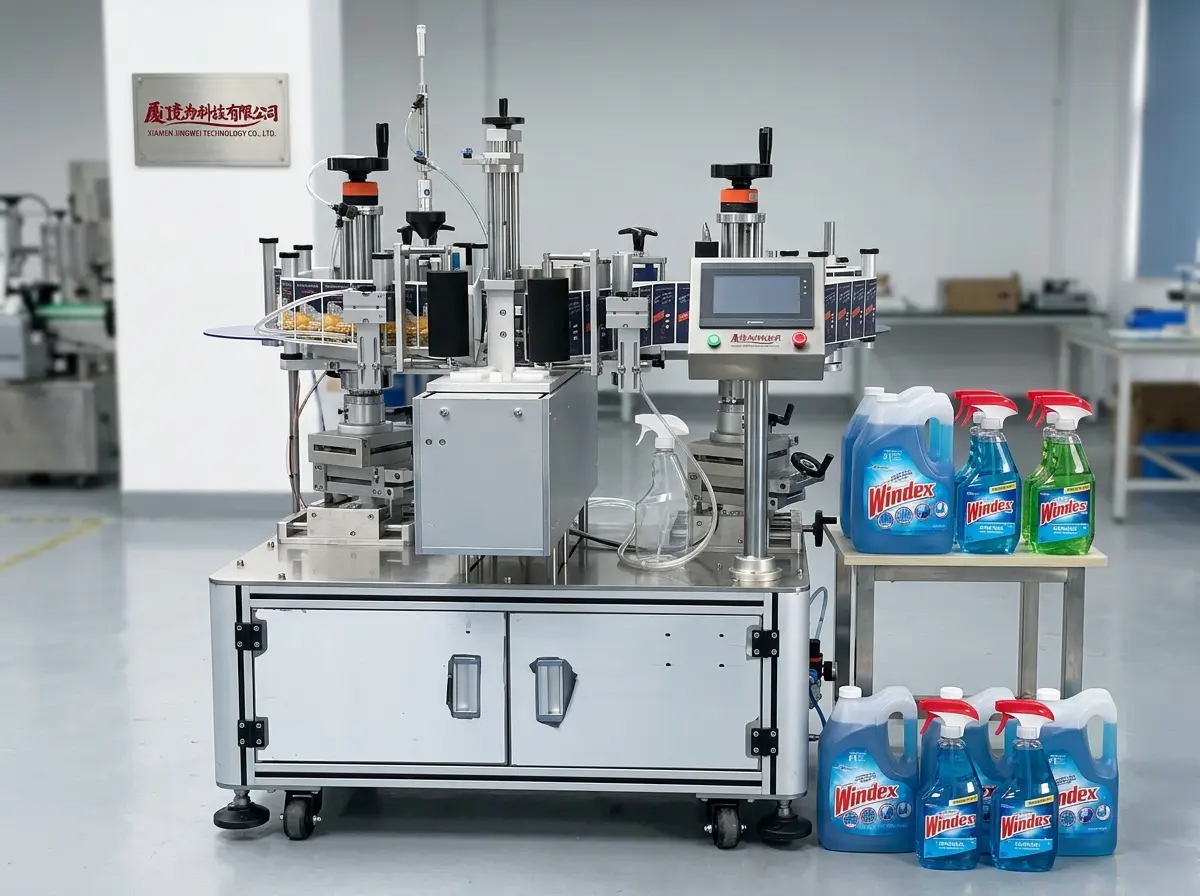

Semi-Automatic Dual-Side Roll-On Labeling Machine JW-T-102

Semi-Automatic Dual-Side Roll-On Labeling Machine JW-T-102

Product Overview

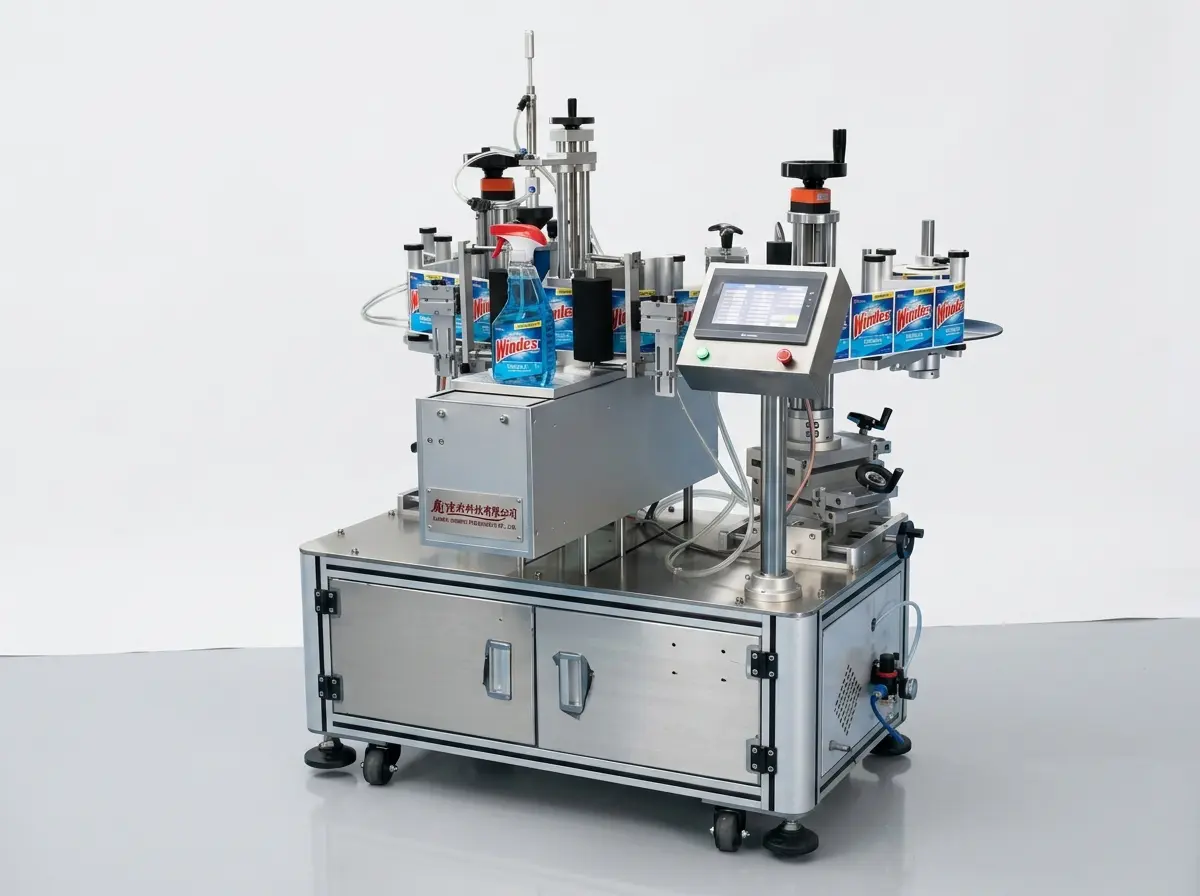

The JW-T-102 is a high-precision semi-automatic labeling machine designed for applying labels to one or both sides of various bottle types. Utilizing an advanced slide-table driven roll-on mechanism, it ensures bubble-free, wrinkle-free labeling with exceptional accuracy. The machine is widely used in packaging lines for lubricants, automotive cleaners, beverages, laundry detergents, food containers, cosmetics, and chemical reagent bottles.

Featuring an adjustable mold system, the JW-T-102 accommodates a wide range of bottle dimensions without the need for mold replacement, significantly reducing changeover time and operational costs. Each labeling head offers 8-axis adjustability (up/down, left/right, front/back, tilt angle), providing precise positioning for any label application requirement.

Key Features

• Dual-Side Labeling: Applies labels to both sides of a bottle simultaneously. Either head can be disabled for single-side labeling.

• Adjustable Mold System: Compatible with multiple bottle sizes without mold replacement. Slide-table drive mechanism ensures smooth, precise labeling.

• 8-Axis Adjustment: Each labeling head features up/down, left/right, front/back, and tilt angle adjustments for flexible positioning.

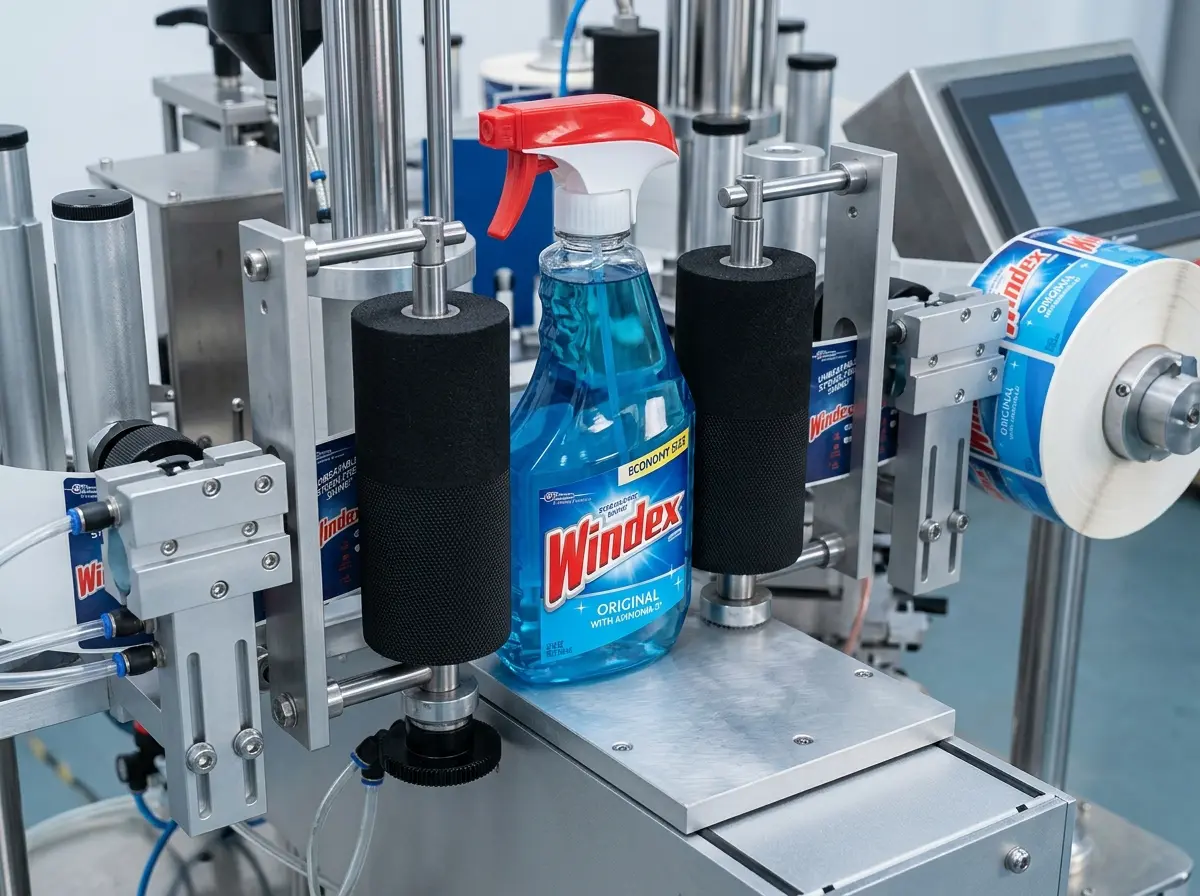

• Bubble-Free Application: Roll-on labeling technology ensures labels are applied smoothly without bubbles or wrinkles.

• PLC Touch Screen Control: User-friendly HMI interface for easy parameter setup, operation monitoring, and fault diagnosis.

• High-Quality Components: Equipped with SICK sensors (Germany), Airtac pneumatic cylinders, and reliable servo motors from trusted suppliers.

Technical Specifications

Mechanical Components

Electrical Components

Typical Applications

The JW-T-102 is suitable for labeling a wide variety of flat and rectangular bottles, including but not limited to:

• Lubricant oil bottles

• Automotive cleaner bottles

• Windshield washer fluid bottles

• Mineral water and beverage bottles

• Laundry detergent bottles

• Kitchen degreaser bottles

• Honey jars and containers

• Chemical reagent bottles

• Shampoo and personal care bottles

• Health supplement / wine bottles

• Food containers (nuts, cookies, etc.)

• Chili oil and sauce bottles

Optional Features

• Transparent Label Sensor: Transparent label detection sensor for clear/transparent labels.

• Inline Coding System: Integrate an inkjet coder or thermal transfer printer for printing production dates, batch codes, or expiry dates directly on labels during the labeling process.

Warranty & Support

• Warranty: 1-year warranty covering all parts. Free replacement for quality-confirmed defective components (consumables excluded).

• After-Sales: Lifetime maintenance and technical support. Spare parts are available for the entire product lifecycle.

• Support: Remote online setup guidance and troubleshooting included.
