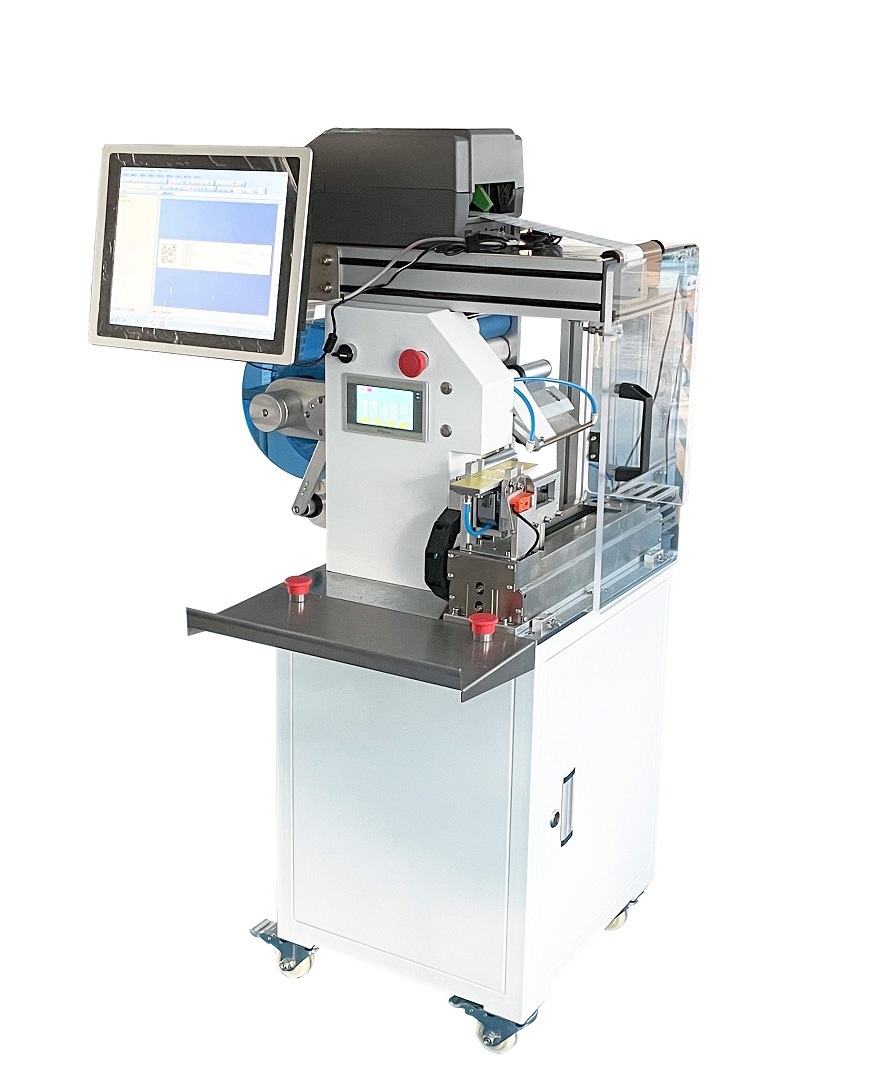

Semi-Auto Wire Folding Labeling Machine, 900-1000pcs/H JW-T107

I. Product Overview

The JW-T107 Semi-Automatic Wire Folding and Labeling Machine is an efficient labeling equipment designed for the folding and labeling needs of various small and medium-sized products. Adopting customized fixtures and precise control technology, the equipment can adapt to labeling scenarios of various specifications, combining flexibility and stability. It is widely used in wire, daily necessities, food packaging and other industries, which can greatly improve labeling efficiency and standardization, and reduce human operation errors.

II. Core Technical Parameters

Parameter Category	Specific Specifications
Applicable label roll specifications	Inner diameter: ￠76mm, Outer diameter: ￠240mm
Labeling accuracy	±0.5-1mm (excluding product and label itself errors)
Labeling speed	900-1000pcs/H (actual speed depends on label size and operator proficiency)
Applicable wire diameter range	Standard: 4MM-10MM; Customization available for sizes beyond this range
Applicable label specifications	Length: 10mm～40mm (customization available for other sizes); Width (folding direction): 30mm～130mm
Overall machine dimensions	Approximately 650mm×780mm×1100mm (Length×Width×Height)
Applicable power supply	220V/50HZ, Rated power: 0.25KW

III. Main Configuration Details

(I) Core Mechanism Configuration

Mechanism Category	Mechanism Name	Quantity	Main Materials
Basic execution mechanisms	Unwinding mechanism	1 set	Stainless steel, Acrylic, Aluminum alloy
Label guiding mechanism	1 set	Aluminum alloy
Label pressing mechanism	2 sets	Aluminum alloy, Manganese sheet
Label peeling mechanism	1 set	Stainless steel, Aluminum alloy
Traction mechanism	1 set	Aluminum alloy, Steel, Rubber-covered roller
Rewinding mechanism	1 set	Stainless steel, POM (Polyoxymethylene)
Folding mechanism	1 set	Aluminum alloy, Stainless steel
Frame and auxiliary structures	Frame	1 set	Steel
Electrical box	1 set	Painted sheet metal
Slide rail	1 set	HIWIN (Taiwan)/Domestic high-quality brand
Adjustment base	1 set	Silver branch, Aluminum material, Bearing
Lead screw	1 set	TBI/Domestic high-quality brand

(II) Key Electrical Configuration

Electrical Category	Electrical Name	Quantity	Brand Option
Control core	PLC controller	1 set	Wecon
Touch screen	1 set	Wecon
Drive system	Traction motor	1 set	Keli'er/Ruitte
Traction motor driver	1 set	Keli'er/Ruitte
Label feeding motor & driver	1 set	Keli'er/Ruitte
Detection and auxiliary electrical	Label detection sensor	1 set	Sick (Germany)/Boyi Jingke
Switching power supply	1 set	Mean Well (Taiwan)
Pneumatic components	Cylinder	2 sets	Airtac/Xingchen
Solenoid valve	6 pieces	Airtac
Vacuum generator	1 set	SNS

IV. Basic Functions and Application Scenarios

(I) Core Functions

1. Folding and labeling technology: Adopts precise folding and labeling method with customized fixtures, which can realize stable labeling of products with different specifications, ensuring flat label attachment and accurate positioning.

2. Flexible adaptation capability: Can quickly switch to adapt to the labeling needs of wires, pipes, small daily necessities and other products without large-scale equipment adjustment, with strong compatibility.

3. Humanized operation design: Equipped with professional touch screen and PLC control system, featuring clear operation logic and easy use, which reduces the cost of personnel training.

(II) Typical Application Scenarios

•Electronic wire category: Folding and labeling of power cords, data cables, earphone cables, etc.;

•Plastic and daily necessities category: Plastic pipes, hangers, tableware, disposable bowls and plates, etc.;

• Food packaging category: Folding and labeling of lollipops, jelly and other snacks with airplane hole hanging labels;

• Others: Small and medium-sized products that require folding and labeling or hanging hole labeling.

V. Optional Functions

1. Online printing and labeling module: Optional barcode printer + computer + professional software, which can print dynamic information such as barcodes, QR codes on labels in real time, realizing integrated "printing-labeling" operation;

2.Circular wire circumferential labeling customization: Supports customization of full-circle wrapping labeling function for circular wire products to meet the labeling needs of special products. For details, please consult relevant business personnel.
