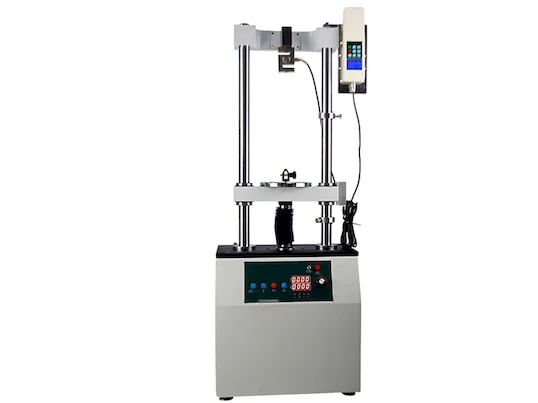

Electric Double Column Force Gauge Test Stand 5000N WPM-5000A

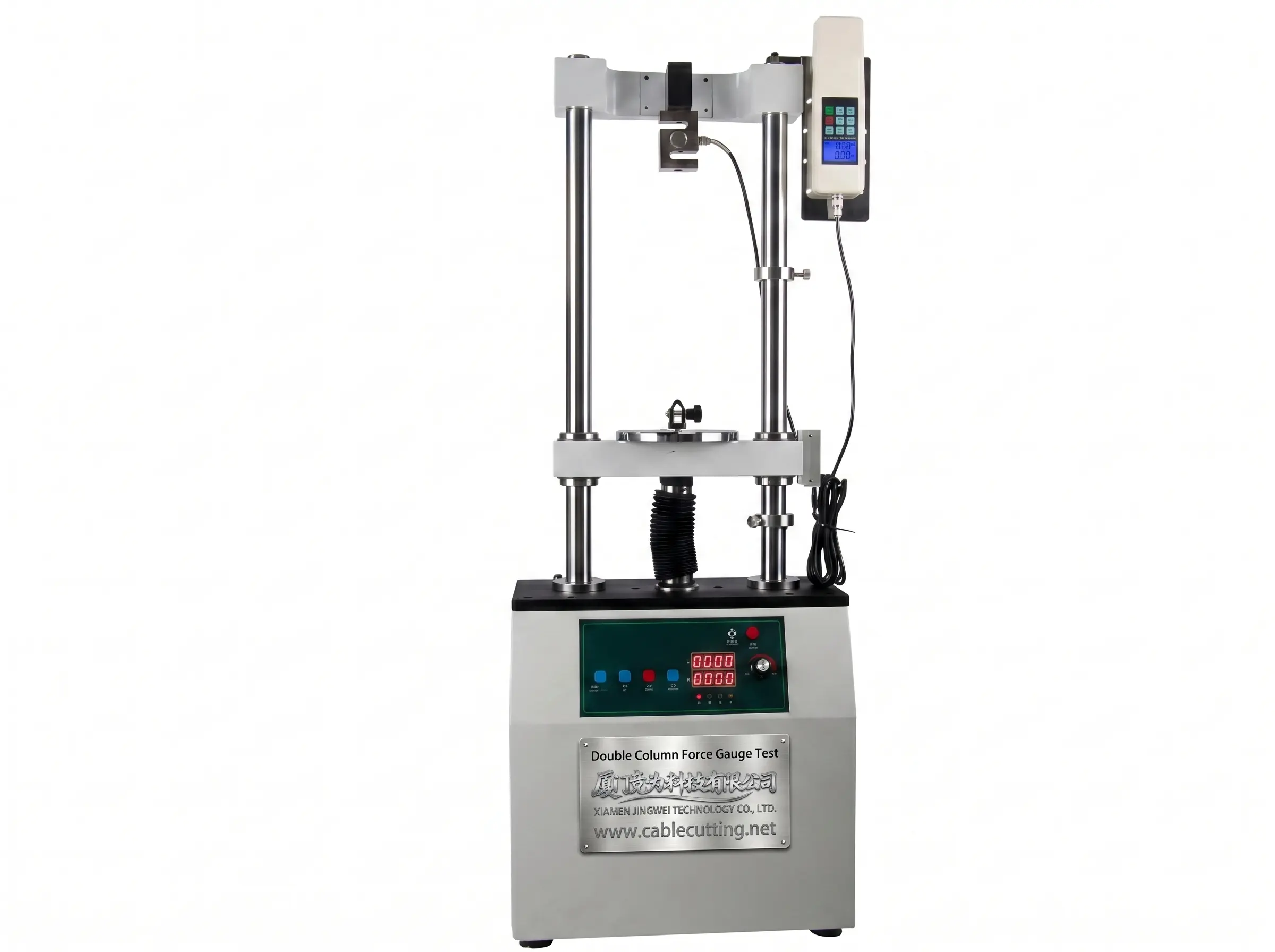

Electric Double Column Test Stand for force gauge WPM-5000A

Model： WPM-5000A
Rated load：5000-50000N
Effective stroke：220 /1000mm
Test speed：15~240 mm/min
Electrical connection： AC 220/110V/50/60HZ
Function:
AEV electric vertical machine is a push-pull load test stand specially equipped for HF series and NK series force gauges. This product adopts a dual vertical pole structure, featured good stability, wide application, and is easy to use, etc., with the functions of step-less speed regulation, manual (crawl), and automatic switching. This product is appropriate for the push-pull load, plug power, and other destructive tests in the industries of rubber, plastics, light textile, building doors and windows, composite materials, wire and cable, auto parts, power machinery, research institutions, etc.
Features:
an Electric loading, stepless speed regulation, gear drive
b, Compact structure, and stable drive
c, Simple operation, can be used with a variety of fixtures

Model	WPM-5000A（standard）	WPM-5000A(customized)	WPM-10000A	WPM-20000A	WPM-30000A
Max. Load	5000N		10000N	20000N	30000N
Stroke	220mm	220mm（Max. 220mm~1000mm can be customized）
Speed	15~240mm/min
Power Supply	AC220V
Dimensions	400X250X1050(mm)	400x250x1300(mm)	430x250x1160(mm)
Net Weight	56kg	60kg	88kg
