TF-52
Terminal Tensile Tester
Manual Tensile Tester 0-490N Range for Wire Harness Testing WPM-490N
Model No. WPM-490NPrice on request211 views
Specifications
- Model Number
- WPM-490N
- Testing Range
- 0-490N
- Inventory Type
- 5,10,20,30,50
- Grip Slipper Stroke
- 70mm
- Clamping Pincers Stroke
- 9mm
- Chuck Adjustment
- 10mm
- Weight
- 20kg
- Dimension
- 600*185*190mm
Manual tensile tester, Tensile Strength Tester, Wire Harness Tension Tester, Elmendorf Tearing Strength Tester
1. Test the tensile strength of electrical wire and optical conductor;
2. Test the clamping force of the wire and terminal;
3. Test the fixed force of the terminal and insulator;
4. Test the connecting force of the joint or connector.
Testing range 0-490N
Inventory type 5,10,20,30,50
Grip slipper stroke 70mm
Clamping pincers stroke 9mm
Chuck adjustment 10mm
Weight 20kg
Dimension 600*185*190mm
Manual tensile tester
1. Test the tensile strength of electrical wire and optical conductor;
2. Test the clamping force of the wire and terminal;
3. Test the fixed force of the terminal and insulator;
4. Test the connecting force of the joint or connector.
Testing range 0-490N
Inventory type 5,10,20,30,50
Grip slipper stroke 70mm
Clamping pincers stroke 9mm
Chuck adjustment 10mm
Weight 20kg
Dimension 600*185*190mm
Manual tensile tester

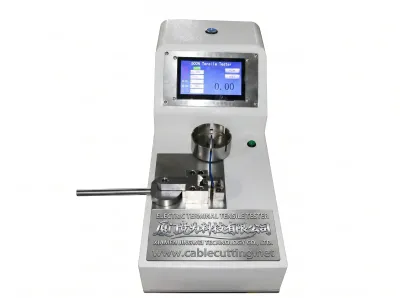

Manual Tensile Tester WPM-490N — Part 1
