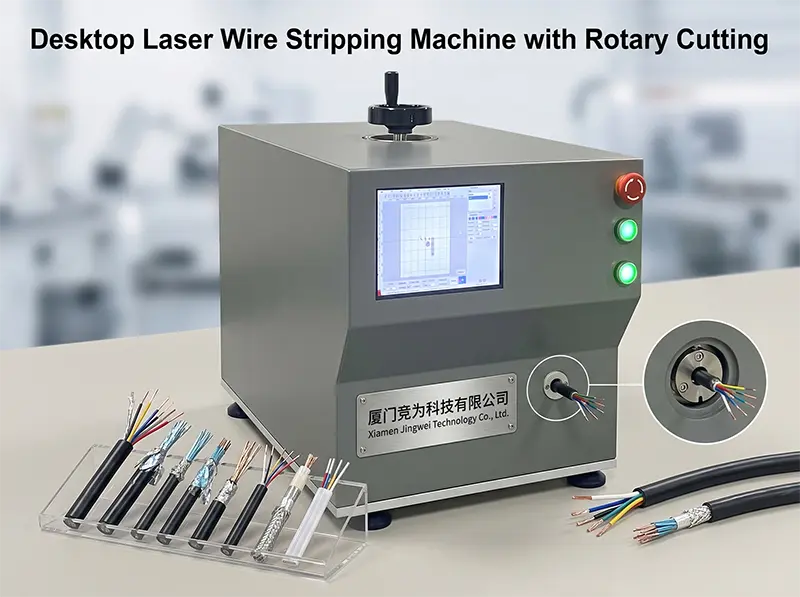

Desktop Laser Wire Stripping Machine with Rotary Cutting FLS30-XC

Product Name: Desktop Rotary Cutting Laser Wire Stripping Machine

Equipment Purpose

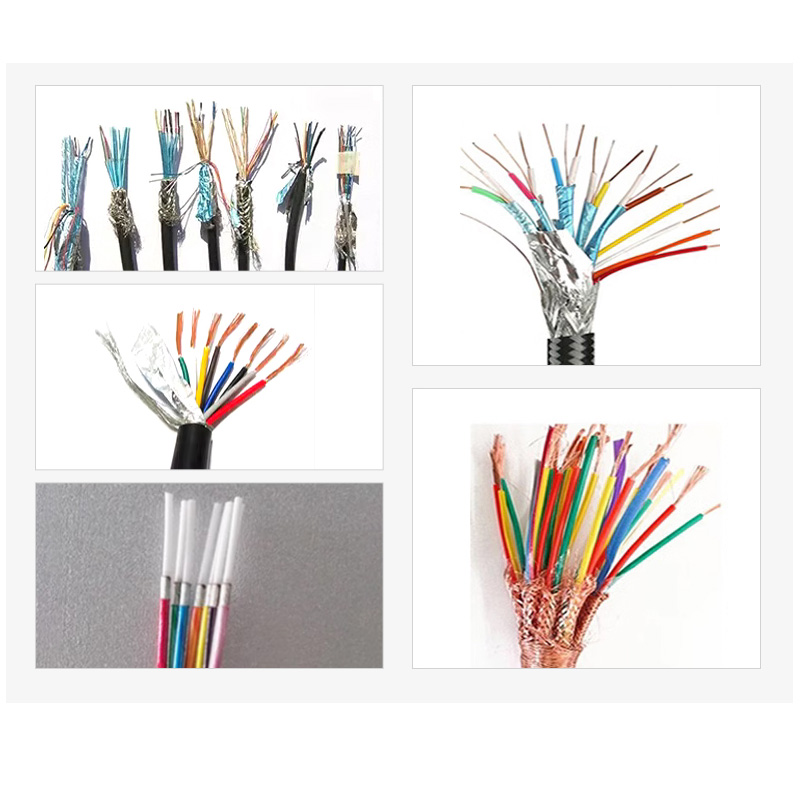

This equipment is equipped with a fiber laser and performs precise rotary circular cutting applications. It uses a galvanometer + rotating shaft to complete a full circular cut, enabling one-time wire stripping for multiple strands. The pneumatic chuck facilitates the replacement of products with different wire diameters. It is commonly used for precise wire stripping of shielded wires and is widely applied in the communication field, medical equipment field, and industrial automation field.

Equipment Features

• Precision Focus: The minimum spot can reach 0.01MM, depending on the material.

• The 1064nm wavelength laser has a high absorption rate for metals, so it hardly damages the wire sheath.

Shipping Accessories List

Name	Quantity	Name	Quantity
Laser	×1	Touch Screen Integrated Machine	×1
Power Cord	×1	Air Pipe	×1
Tools	×1	Wireless Keyboard and Mouse	×1
Foot Switch	×1	Instruction Manual	×1

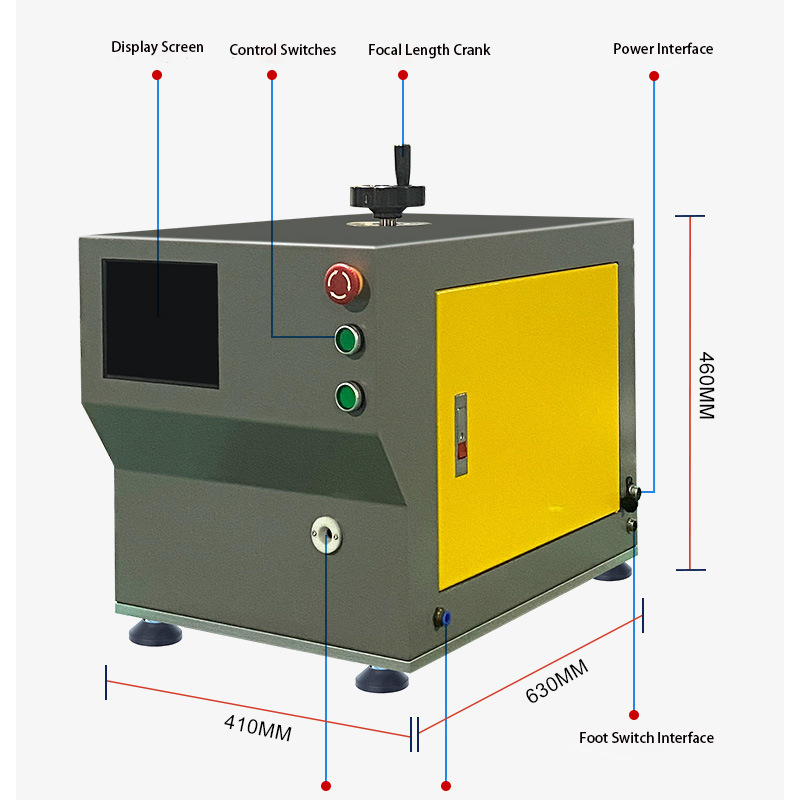

Mechanical Components

• Display Screen, Control Switch, Focal Length Crank, Power Interface

• Wire Stripping Port, Air Pipe Interface, Foot Switch Interface

• Product Dimensions: 410×630×460MM

Product Parameters

Item	Parameter
Product Name	Desktop Rotary Cutting Laser Wire Stripping Machine
Product Model	FLS30-XC
Laser Power	30W
Laser Wavelength	1064NM
Working Method	Automatic Rotary Circular Cutting
Circular Cutting Speed	<2S
Positioning Accuracy	≤0.2
Repeat Positioning Accuracy	≤0.005
Weight	60KG
Product Dimensions	410×630×460MM
Wire Stripping Length	8-46MM
Laser Type	Fiber Laser

Packing List, Dimensions and Weight Description

• Main Machine ×1

• Power Cord ×1

• Tools ×1

• Outer Packaging Dimensions: 700MM×500MM×550MM (as shown)

• Total Weight: 72Kg
