Electric Slide Table CO₂ Laser Wire Stripping Machine CLS60-D

Electric Slide Table CO₂ Laser Wire Stripping Machine (Special for Coaxial Cable and Ultra-fine Electronic Wire Circular Cutting)

Equipment Purpose

This equipment uses double-head CO₂ lasers with an electric horizontal slide table to realize circular cutting and stripping of cable products. The slide table adopts an electric module, with separate speed regulation for idle position and cutting position, saving idle time while ensuring sufficient cutting at the cutting position. The upper and lower lasers have independent switches and power adjustment, enabling independent adjustment of upper and lower cutting processes. The laser focus is easy to adjust, and it is compatible with cables of all sizes. Typical applications include easy cutting and stripping of ultra-fine coaxial cables, iron hibiscus wires, glass fiber wires, mica wires, and high-temperature wires, as well as stripping of Mylar shielding layers. (For the manual slide table, simply change the electric type to manual.)

Equipment Features

1. The electric slide table is easy to operate; one button starts and executes cutting, then returns for unloading.

2. Sufficient space, supporting a maximum cutting stroke of 300MM.

3. Special laser beam confinement method, with minimum laser wire consumption ≤0.1MM.

4. Optional manual slide table, with cutting speed adjustable at will.

Shipping Accessory List

Accessory Type	Quantity	Accessory Type	Quantity
Laser	×2	Slide Table Motor	×1
Power Cord	×1	Workbench	×1
Tools	×1	Touch Screen All-in-one Machine	×1
Foot Switch	×1	Air Pipe	×1

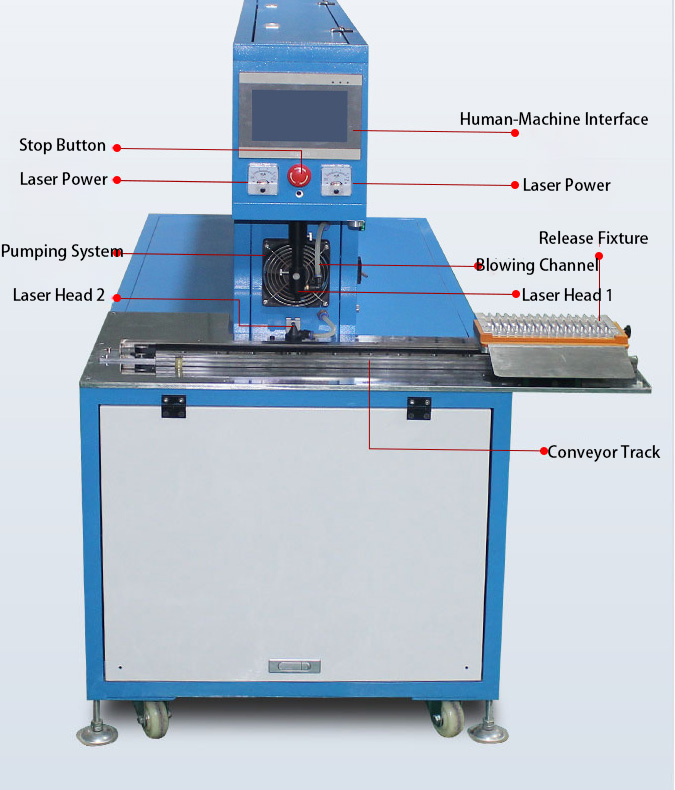

Mechanical Components

Including upper and lower laser power display, smoke exhaust fan, upper and lower lasers, touch screen, emergency stop button, operation button, electric slide table, etc.

Product Parameters

Parameter Item	Specific Content
Product Model	CLS60-D
Laser Power	60W×2
Laser Wavelength	10.6MM
Working Mode	Electric Slide Table (Manual Slide Table)
Stripping Speed	Adjustable
Positioning Accuracy	≤0.1MM
Repeat Positioning Accuracy	≤0.05MM
Weight	180KG
Dimension	1550×1000×1250MM

Partial Finished Product Diagrams

Show the stripping effects of various cables processed by this equipment (such as ultra-fine coaxial cables, multi-core cables, etc.).

Packing List, Dimension and Weight Description

• Packing Contents: Main Machine ×1, Power Cord ×1, Tools ×1

• Outer Package Dimension: 1700×1050×1450MM

• Total Weight: 200kg
