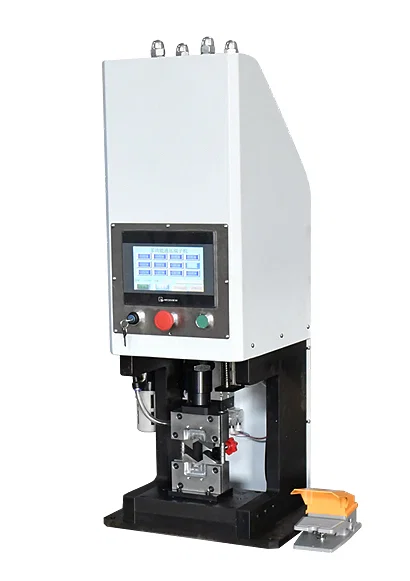

50T Hydraulic Terminal Crimping Machine for Cable Lugs WPM-50T

50T Hydraulic Terminal Crimping Machine for Cable Lugs WPM-50T
50t Hydraulic Terminal Crimping Machine, 50t Terminal Crimping Machine, Cable Lugs Crimping Machine This is a semi-automatic crimping machine, suitable for cable lug, and ferrule terminal crimping.
Product details
Applicable wire 10-120mm²
Power supply AC 220V
Crimping force 20T
Air supply 05-0.8MPa
Terminal shape Hexagonal shape, B-shaped, square shape.
Stroke 40mm
Size 450*450*1200mm
Weight 200kg
Applicable mold Hexagon mold/square mold/B-shaped mold

Remarks:
1) Hexagon mold: 10-120mm² no need to change the mold.
2) Square mold: for ferrule/cord end terminal crimping.
3) B-shaped mold: according to the dimensions of the terminal, one mold for one side of the terminal.
Features and advantages:

(1)AirTac pneumatic parts, good sealing, sensitive response, wear-resistant and durable.
(2) Press the button start or press the footswitch start.
(3) Hydraulic and airpower, saving energy.
(4) Simple operation,replaceablee crimping mold.
(5) Stable performance, high efficiency.
(6) For crimping operations for non-standardized or crimp terminals. Easy operation of the machine and easy maintenance, designed for high-volume manufacturers to save the cost of its failure period waste.

Our crimping machines:
(1) Semi-auto super mute crimping machine: 1.5T, 2T, 3T, 4T, 6T, 8T.
(2) Servo motor drive crimping machine: suitable drive crimping machine: suitable for enameled wire splicing.
(3) Servo motor drive hexagon terminal crimping machine 15T.
(4) Hydraulic hexagon/B-shape/point press terminal crimping machine 20T.
(5)Auto-feedingg loose terminal crimping machine, with a vibrator.
(6) Full auto single/double end wire cutting stripping crimping machine.
(7) Fullautoonesidedcrampingone-sidede twisting tinning machine.
(8Fullauto cuttingg stripping crimping housing insertion machine.
(9) For further information, please contact us.
