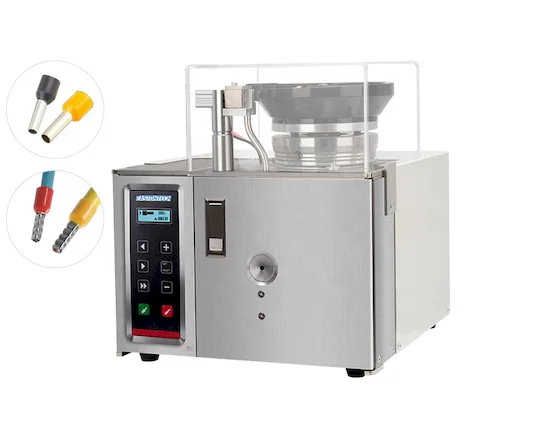

Automatic Loose Terminal Crimping Machine 0.5-4mm² WPM-KAC05B
Model No. WPM-KAC05BPrice on request1,788 views
Specifications
- Processing Wire Size
- 0.5-4mm²
- Stripping Length
- 8-12mm
- Speed
- 1.5s/time
- Control Method
- touch screen, electronic control, pneumatic control
- Applicable Wire
- BVR hard wire 0.5-4mm², soft wire 0.5-2.5mm²
- Terminal Supply
- vibration plate feeding
- Crimping Method
- left and right horizontal crimping in parallel
- Rated Power Supply
- AC220V 50Hz
- Working Pressure
- 0.3-0.8MPA
- Working Temperature
- -10/40℃
- Weight
- about 30KG
- Dimension
- 42cmx40cmx39cm
Automatic Loose Terminal Crimping Machine 0.5-4mm² WPM-KAC05B
Loose Tubular Terminal Crimping Machine, Loose Insulator Crimping Machine, Wire Strip And Crimping Machine, European Single Terminal Press Machine
Suitable for crimping a variety of tube-shaped loose terminals.
Wire stripping and crimping are completed at one time.
The flared shape makes wire threading convenient
Adopting vibration plate feeding method, convenient and quick to replace terminals. Processing wire size: 0.5-4mm2
Loose Tubular Terminal Crimping Machine, Loose Insulator Crimping Machine, Wire Strip And Crimping Machine, European Single Terminal Press Machine
Suitable for crimping a variety of tube-shaped loose terminals.
Wire stripping and crimping are completed at one time.
The flared shape makes wire threading convenient
Adopting vibration plate feeding method, convenient and quick to replace terminals. Processing wire size: 0.5-4mm2
| Model | WPM-KAC05B |
| Stripping length | 8-12mm |
| Speed | 1.5s/time |
| Control method | touch screen, electronic control, pneumatic control |
| Applicable wire | BVR hard wire: 0.5-4mm2, soft wire needs to be twisted: 0.5-2.5 mm2 |
| Terminal supply | vibration plate feeding |
| Crimping method | left and right horizontal crimping in parallel |
| Rated power supply | AC220V 50Hz |
| Working pressure | 0.3-0.8MPA |
| Working temperature | -10/40℃ |
| Weight | about 30KG |
| Dimension | 42cmx40cmx39cm |
Automatic Loose Terminal Crimping Machine 0.5-4mm² WPM-KAC05B
