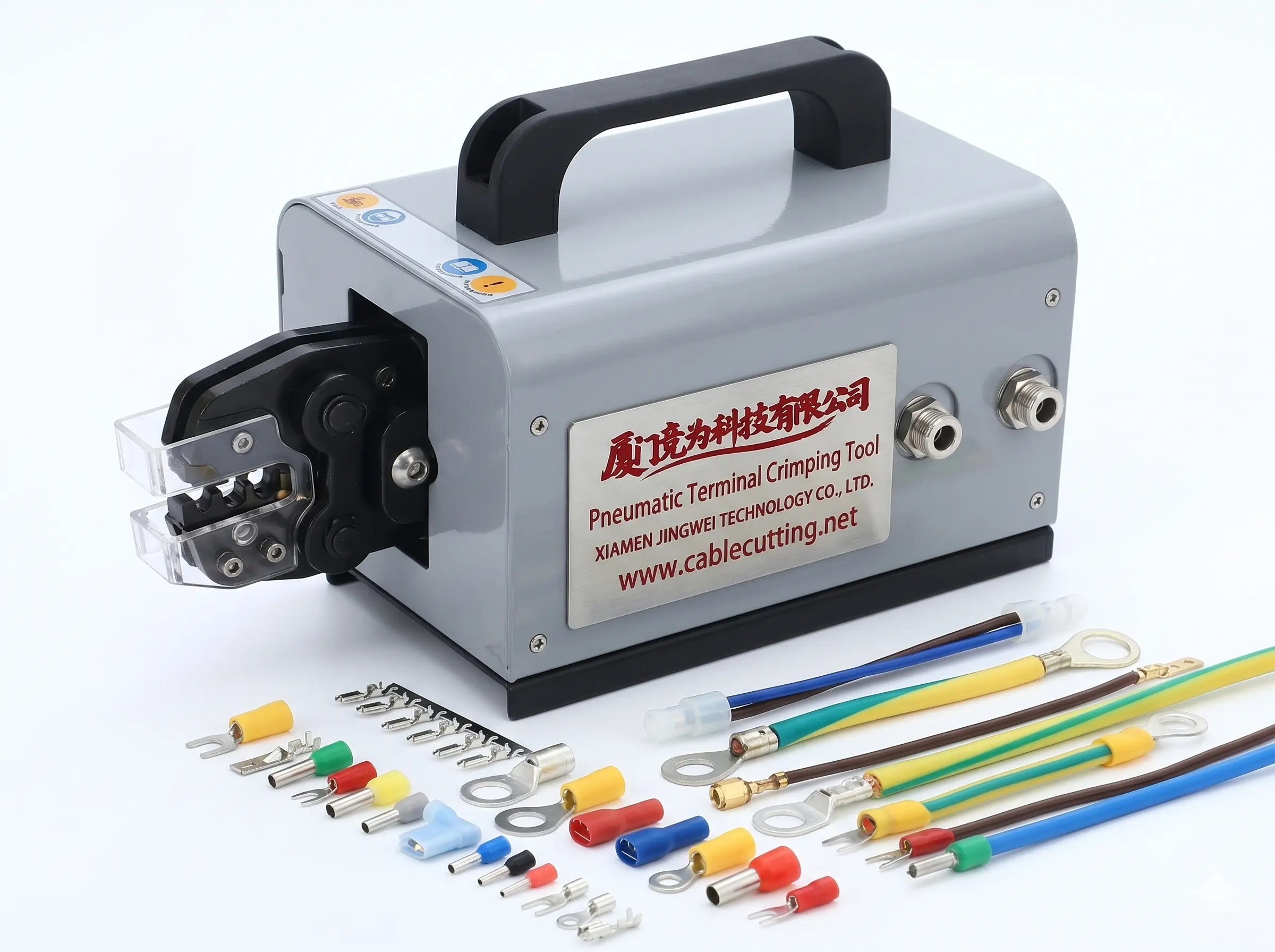

Pneumatic Terminal Crimping Tool with Interchangeable Dies JW-25M

Semi-Auto Crimping Machine

Pneumatic Terminal Crimping Tool with Interchangeable Dies JW-25M

Model No. JW-25MPrice on request493 views

Specifications

Air Pressure Range
0.5-0.8MPa
Output
2.5T
Overall Dimension
270×140×170mm
Weight
9.5Kg
Ferrules Crimping Range
0.25-35mm²
Twin Ferrules Range
2×0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0mm²
Insulated O/Y Type Terminals Range
0.25, 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²
Non-insulated O/Y Type Terminals Range
0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0, 16.0mm²
Males/Females Receptacles Range
0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²
Contact Pins for Rectangular Connectors Range
0.5, 1.0, 2.0, 4.0mm²
Inquiry NowWhatsApp

sales@cablecutting.net

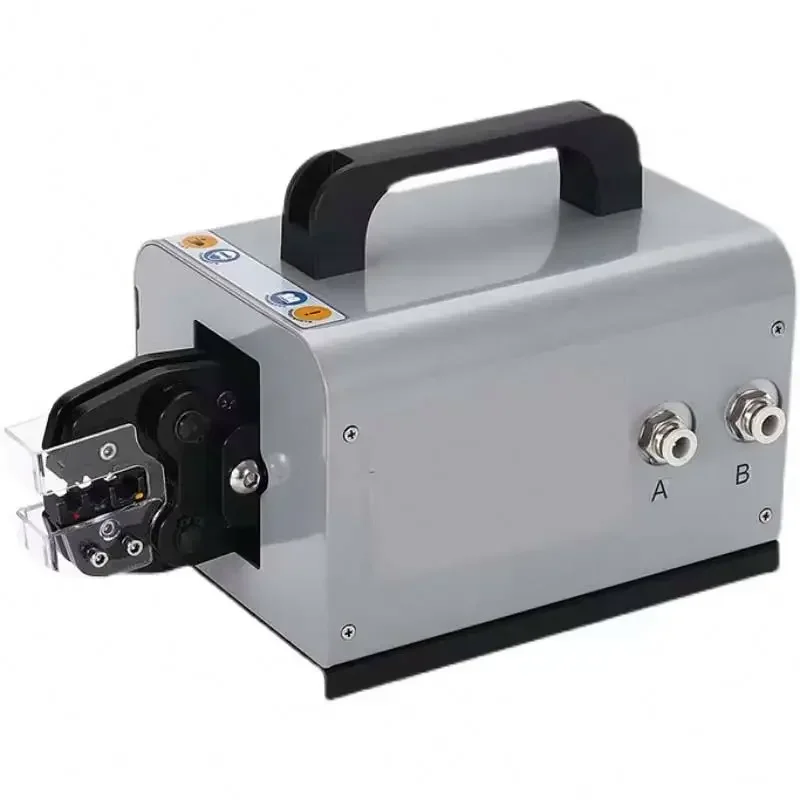

Pneumatic Terminal Crimping Tool with Interchangeable Dies JW-25M

Core Features: Interchangeable crimping dies for various terminal types; Operated by foot switch, suitable for medium-batch crimping; More reliable, stable and efficient than manual tools; Compact and lightweight.

Parameter Item

Details

Air pressure range

0.5-0.8MPa

Output

2.5T

Overall dimension

270×140×170mm

Weight

9.5Kg

Terminal Type

Crimping Range

Ferrules

0.25-35mm²

Twin ferrules

2×0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0mm²

Insulated O/Y type terminals

0.25, 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²

Non-insulated O/Y type terminals

0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0, 16.0mm²

Males/females receptacles

0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²

Contact pins for rectangular connectors

0.5, 1.0, 2.0, 4.0mm²

Note: Interchangeable crimping dies are available for selection; Mold replacement steps: Remove protective cover → Take out old mold → Install new mold → Tighten screws.
