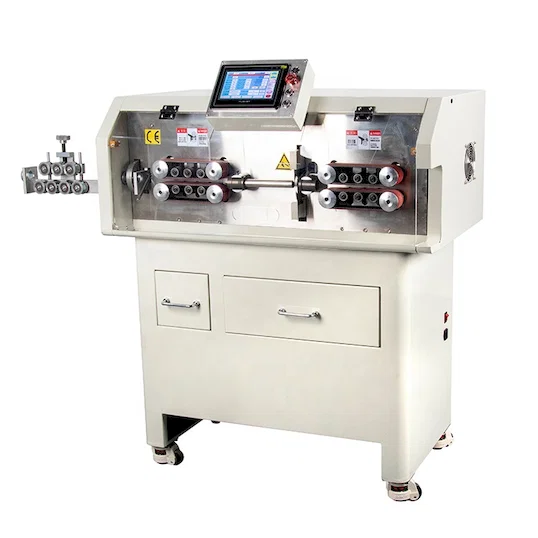

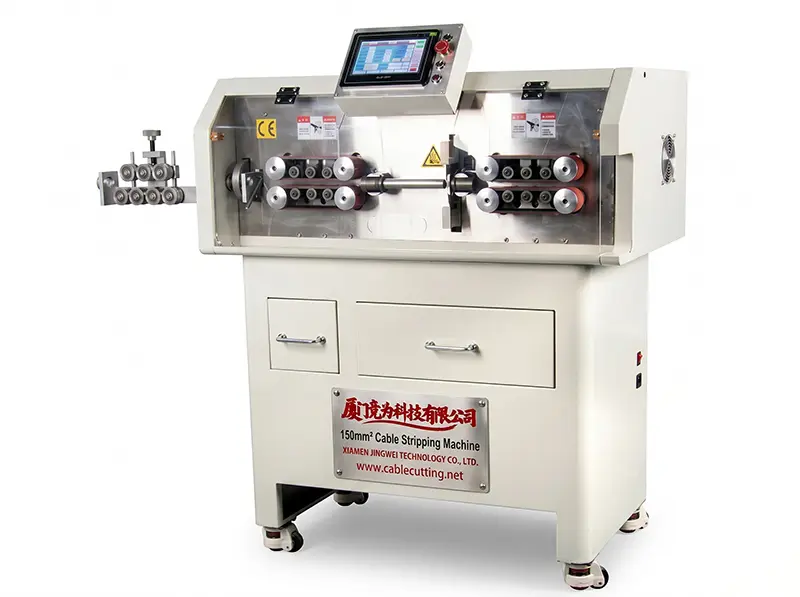

Automatic 150mm² Cable Stripping Machine WPM-MAX3

Process Large Cables with Ease and Precision: The 150mm2 Cable Jacket Cutting and Stripping Machine WPM-MAX3

Introducing the 150mm2 cable jacket cutting and stripping machine WPM-MAX3, a fully automatic powerhouse designed to revolutionize your large cable processing. This robust jacket cutting and stripping machine is specifically engineered for handling PVC sheathed wires and a wide range of other cable types including PVC cables, silicone wires, fiberglass wires, and more, with wire sizes up to 150mm2. The WPM-MAX3 delivers unmatched speed, precision, and ease of use for demanding wire and cable preparation tasks.

Fully Automatic Big Cable Processing for Maximum Efficiency

The WPM-MAX3 is a fully automatic big cable cutting and stripping machine built for high-volume production environments. Its automated operation minimizes manual labor and significantly increases throughput. Whether you are working with thick power cables or specialized wires, this machine ensures consistent and high-quality stripping and cutting, significantly boosting your overall efficiency.

Key Features and Benefits of the 150mm2 Cable Jacket Cutting and Stripping Machine WPM-MAX3:

• Handles Large Cables up to 150mm2: Process a wide range of cable sizes, including large gauge wires up to 150mm2 cross-sectional area.
• Versatile Material Compatibility: Suitable for PVC cables, Teflon cables, silicone wires, fiberglass wires, and other similar materials.
• Wide Industrial Application: Widely used in electronics, automobiles, motorcycle parts, electrical appliances, motors, lamps, and toys industries for diverse wire processing needs.
• User-Friendly LCD Touch Screen: Features a 7-inch touch screen with Chinese and English interface for simple operation, convenient maintenance, and clear parameter display.
• High Precision and Stable Performance: Delivers stable performance, fast speed, and high precision due to its robust design and advanced control system.
• Customizable Wire Length: Wire length can be set freely according to specific customer requirements, offering maximum flexibility.
• Powerful 8-Wheel Drive: Equipped with an 8-wheel drive system ensuring strong and consistent cable feeding for accurate processing.
• High-Speed Steel Blades: Utilizes imported high-speed steel blades for clean and durable cutting performance.
• Adjustable Stripping Lengths: Offers wide stripping length adjustment, with head stripping up to 800mm for round cables and 100mm for 150mm2 cables.
• High Stripping Speed: Achieves a remarkable stripping speed of 900 pieces per hour (based on 1000mm length).
• Precise Stripping Accuracy: Maintains stripping accuracy within ±0.2mm, ensuring consistent results.
• Long Cutting Length Capacity: Capable of cutting lengths up to 400 meters.

Model WPM-MAX3: Technical Specifications
