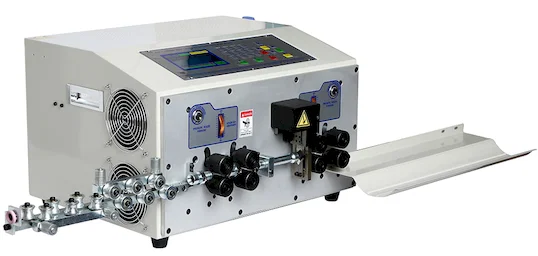

25mm² Automatic Wire Cutting & Stripping Machine WPM-MAX1-8
Model No. WPM-MAX1-8Price on request1,769 views
Specifications
- Model Number
- WPM-MAX1-8
- Name
- Automatic wire cutting and stripping machine
- Function
- Cutting, stripping
- Cutting Length
- 1-9999mm
- Stripping Length
- Front: 100mm; Rear: 100mm
- Voltage
- 220V/110V
- Power Rate
- 800W
- Cutting Tolerance
- (0.2+/- 0.002 by L) mm
- Cutting Stripping Wire Core Section
- 0.1-25mm²
- Optimal Stripped Wire
- PVC, silica gel line, Glass fiber cables
- Blade Material
- Hard tungsten steel
- Output
- L = 100 mm, 3000-8000 PCS/h
- Weight
- 50KG
- Dimension
- 400mm*515mm*345mm
25mm2 full automatic computer wire stripping cutting machine WPM-MAX1-8, copper stripping machine, and cable stripping machines are available to make your wire-stripping tasks easier and more efficient.
Model Number WPM-MAX1-8
Name Automatic wire cutting and stripping machine
Function for cutting, stripping
Cutting Length 1-9999mm
Stripping Length Front: 100mm; Rear: 100mm
Voltage 220V/110V
Power Rate 800W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 0.1-25mm2
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel output L = 100 mm, 3000-8000 PCS/h (high yield)
Weight 50KG
Dimension 400mm*515mm*345mm

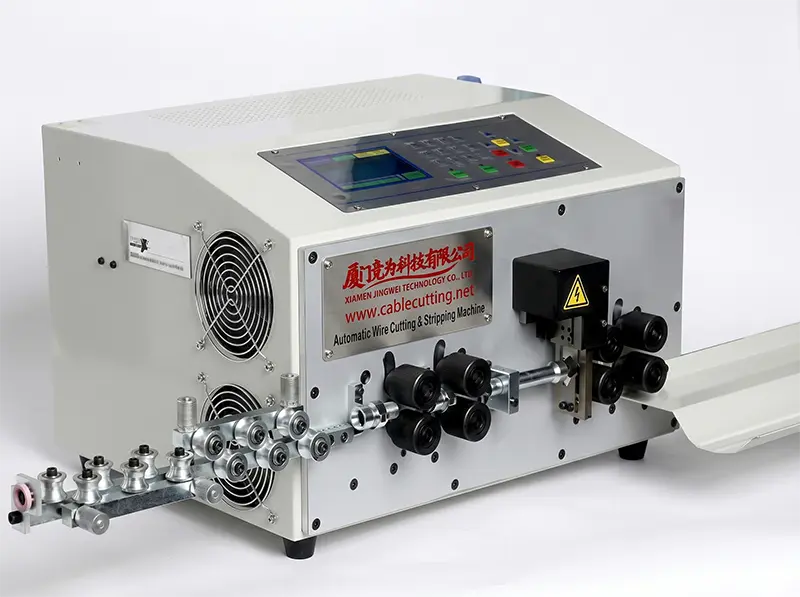

25mm² Auto Computer Wire Stripper WPM-MAX1
