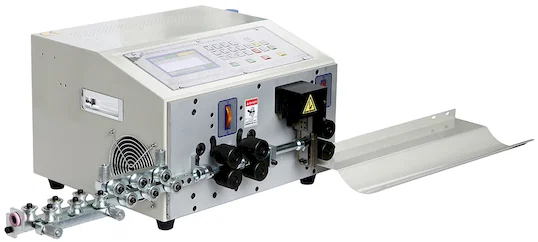

25mm² Automatic Wire Cutting & Stripping Machine WPM-MAX1-6
Model No. WPM-MAX1-6Price on request1,649 views
Specifications
- Model Number
- WPM-MAX1-6
- Function
- Cutting and Stripping
- Cutting Length
- 1-9999mm
- Stripping Length
- Front 50mm, Rear 50mm
- Voltage
- 220V/110V
- Power Rate
- 400W
- Cutting Tolerance
- (0.2+/- 0.002 by L) mm
- Wire Core Section
- 0.1-25mm²
- Optimal Stripped Wire
- PVC, silica gel line, glass fiber cables
- Blade Material
- Hard tungsten steel
- Output
- L=100mm, 3000-8000 PCS/h
- Weight
- 35KG
- Dimension
- 420*390*280mm
The WPM-MAX1-6 is a 25mm2 automatic wire cutting and stripping machine that can efficiently cut, strip, and process wires with precision.
Wire Cutter And Stripping Machine, Wire Stripping And Cutting Machine, Wire Cutting And Stripping Machine
Model Number WPM-MAX1-6
Name Automatic wire cutting and stripping machine
Function for cutting, stripping
Cutting Length 1-9999mm
Stripping Length Front: 50mm; Rear: 50mm
Voltage 220V/110V
Power Rate 400W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 0.1-25mm2
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel output L = 100 mm, 3000-8000 PCS/h (high yield)
Weight 35KG
Dimension 420*390*280mm
Wire Cutter And Stripping Machine, Wire Stripping And Cutting Machine, Wire Cutting And Stripping Machine
Model Number WPM-MAX1-6
Name Automatic wire cutting and stripping machine
Function for cutting, stripping
Cutting Length 1-9999mm
Stripping Length Front: 50mm; Rear: 50mm
Voltage 220V/110V
Power Rate 400W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section 0.1-25mm2
Optimal stripped wire: PVC// silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel output L = 100 mm, 3000-8000 PCS/h (high yield)
Weight 35KG
Dimension 420*390*280mm
25mm² Automatic Wire Cutting & Stripping Machine WPM-MAX1-6
Inquiry Now
