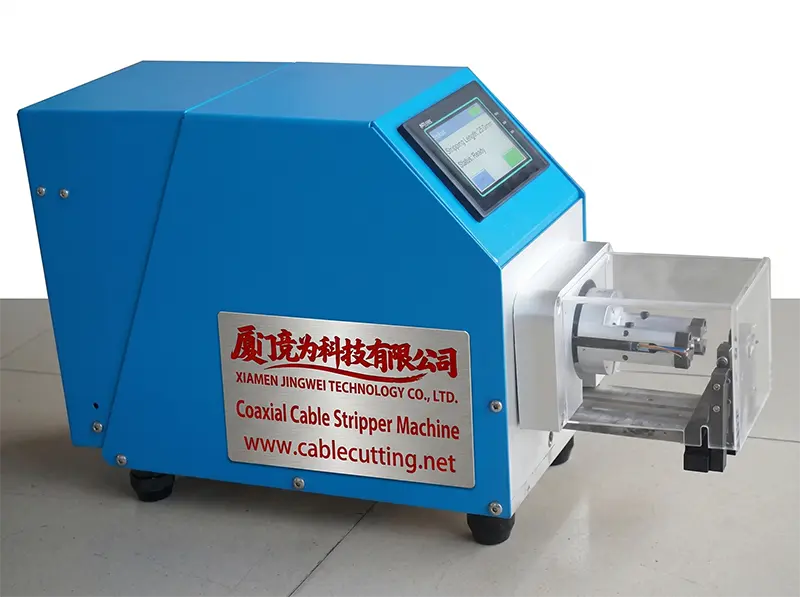

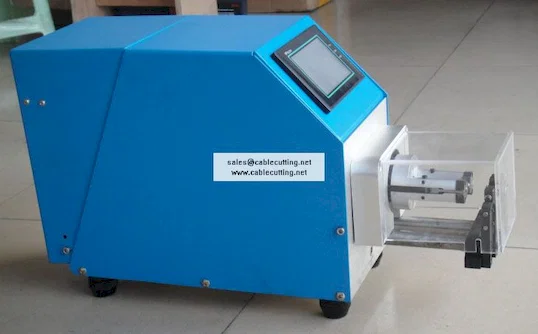

Automatic Coaxial Cable Stripper Machine with 9 Blades WPM-28

Coaxial cable Stripping Machine (WPM-28)
Brief Description: mainly used for a single line, coaxial cable, and special processing, using the most advanced rotary tool carrier, to improve the processing accuracy and speed. Use of a specific axis positioning device and the rotary cutter way, up to nine-stripping blades can be replaced without the corresponding processing of various sizes and skin wires.The machine is primarily utilized for processing single-line, coaxial cables and specialized materials. It employs the most advanced rotary tool carrier to enhance both accuracy and speed of processing. The use of a specific axis positioning device and rotary cutter allows for up to nine stripping blades to be replaced without requiring corresponding adjustments for varying sizes or insulation types.

1) Peeling length 0.1 -30mm
2) Peeling length setting unit 0.01mm
3) cutting the scope of Min0.3-Max6.99mm
4) cutting depth setting unit 0.01mm
5) The processing capacity (/ hour) is Approximately 200
6) The processing operation step number Maximum processing 9 Steps
7) Data storage capacity Can store 9 types of processing steps × 99 Ge
8) can process the types of wires General wire, coaxial, semi-soft cover-line
9) Noise Level 60bB

10) Tool Material Super-hard titanium
11) The use of power AC100V-230V
12) Rated power 105 ∨ ∧
13) Machine weight of About 25Kg
14) Overall dimensions 435 × 230mm
