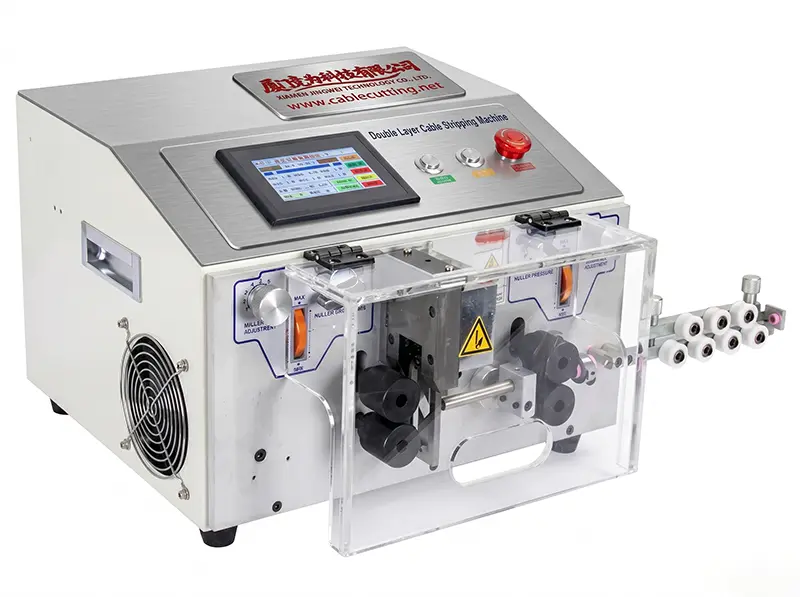

Automatic Double Layer Cable Stripping Machine WPM-YHT3

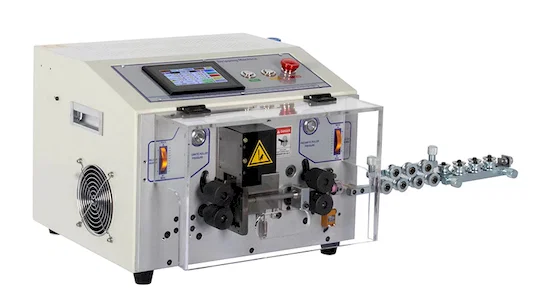

Double layer round sheath wire stripping cutting machine WPM-YH3
Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery
Function Wire cutting, double-end stripping, middle stripping
Wire out diameter 2-7mm
Strip cores 2/3/4
Cutting length 0.1mm-99999.9mm
Stripping length Outer layer: head: 1-120 mm tail: 1-50mm
Core line: head: 0.1-30mm tail: 2-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
The intermediate strip can be customized
Capacity 1000-2000 pcs/h (L = 200mm)
Blade material Imported tungsten steel/high-speed steel
Air Pressure: 0.8 Mpa
Power AC110V/220V 50/60HZ 300W
Body size 420mm*460mm*335mm
Body weight 38kg
Remark function Automatic entry/exit, timing start, jog adjustment
