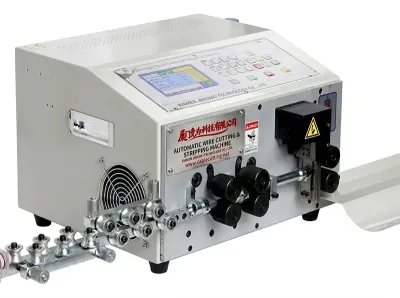

Automatic Multicore Cable Stripping & Cutting Machine WPM-YHT2

Double round Sheath cable stripping cutting machine, Automatic Multicore Wire Cutting Stripping Machine, Sheathed Cable Wire Strip Equipment, Auto Jacket Cable Strip Cut, Multicore Sheath Wire Stripper Cutter Machine, Electronic Wire Stripping Machine, Pvc Sheathed Flexible Cable Wire Stripping Machine, Flat Mult Core Cable Strip Machine
Technical parameter
Model： WPM-YHT2

Dimension：700mm×660mm×430mm
Length Range 1-99999mm (0.039-3936.97in.)
Length Accuracy ±0.002 of the Cutting Length
Wire/Cable Cross-section Max. 16 mm (max. 0.63in.)
Stripping Length Left Side:
Insulation: 10-120mm (0.39-4.72in.)
core Wire: 1-120mm (0.039-4.72in.)
Right Side:
Insulation: 10-120mm (0.39-4.72in.)
Core Wire: 1-80mm (0.039-3.15in.)
Stripping Range 4-30mm2 (<6 cores)
Application PVC cable, Guard cable, etc.
Feed Rate 2300 pcs/hour.
(Sheathed cable 800 pcs/hour)
Feed mode Automatic Belt Driving
Control System 7-inch touchscreen
Electrical Connections 110V/220V 50-60Hz
Dimensions (W×H×D) 840x540x620mm (33.1x21.3x24.5in.)
Weight 115kg (253.6lb)
CE-Conformity The EW-05F fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Driver way：8wheel drive, Motor ball screw drive
