Automatic Double Layer Cable Stripper Machine WPM-YHT3
Model No. WPM-YHT3Price on request305 views
Specifications
- Model Number
- WPM-YHT3
- Weight
- 38KG
- Electrical Connection
- 110V/220V 50HZ/60HZ
- Power
- 300W
- Operation Interface
- 4.3 inch Chinese/English touch screen
- Machine Dimension
- 450*420*335mm
- Wire Cross Section
- 2-7mm (Round sheath wire)
- Wire Cores Processed
- 2 cores, 3 cores, 4 cores
- Air Pressure
- 0.8Mpa
- Max Conduit Inside Diameter
- C 9mm
- Length Accuracy
- ±0.2mm
- Wire Length Range
- Max 9999mm
- Outer Wire Strip Length
- Front end 1-150mm, rear end 1-150mm
- Blade Material
- high-speed steel
- Transport Speed
- 2000-3000 pieces/hour (L=200mm)
- Driving Mode
- four-wheel drive (silent hybrid stepper motor)

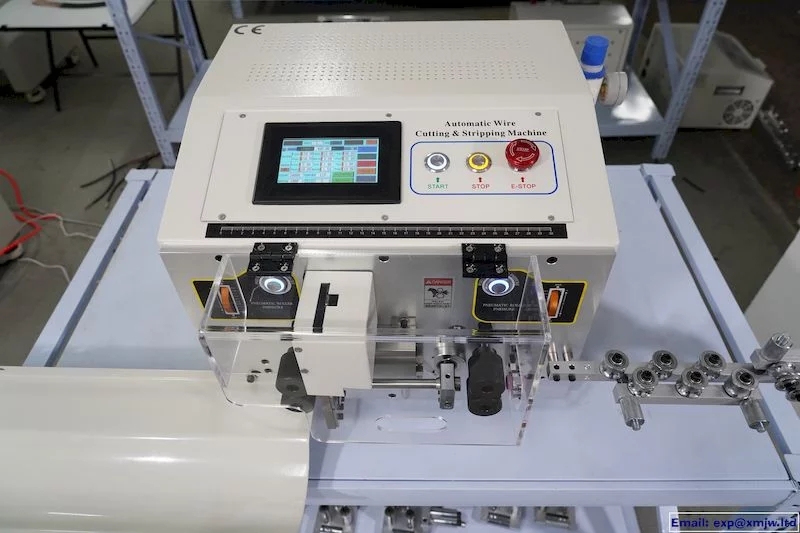

High speed round sheath cable inner and outer double layer stripping machine WPM-YHT3
With forward and reverse straightener)(Disconnection device and protective
cover are optional
Weight: 38KG
Electrical connection: 110V/220V 50HZ/60HZ
Power: 300W
Operation interface: 4.3 inch Chinese and English switching touch screen displayMachine dimension: 450*420*335mm
Wire cross section: 2-7mm (Round sheath wire)
umber of wire cores that can be processed: 2 cores, 3 cores, 4 cores
Air pressure: 0.8Mpa
Max conduit inside diameter: C 9mm
Leneth accuracy:+ 0.2mm
Wire length range: Max 9999mm
Outer wire strip length; Front end:1-150: rear end:1-150mm
Blade material: high-speed steel
Iransport speed:(L=200MM piece/hour) 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.lmm forward per step)
Wire Range 2-7mm YHT3 Wire Stripping Peeling Cutting Machine High Speed Round Sheath Double Layer Peeling Tool
P.S: The wire collecting board and protect cover is not include. if you need add. please contact seller.
Model：WPM-YHT3（High speed round sheath inner and outer double layer peeling machine）
(With disconnection device)(With Forward and reverse straightener)( Protective cover is optional)
Weight：38KG Power：300W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 450*420*335mm
Wire cross section: ￠2-7mm (Round sheath wire)
Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores
Air pressure: 0.8Mpa Length accuracy： ± 0.2mm
Max conduit inside diameter:￠9mm
Wire length range：Max 9999mm
Outer wire strip length：Front end:1-150; rear end:1-150mm
Blade material: high-speed steel
Transport speed: (L=200MM piece/hour） 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
Automatic Double Layer Cable Stripper Machine WPM-YHT3
