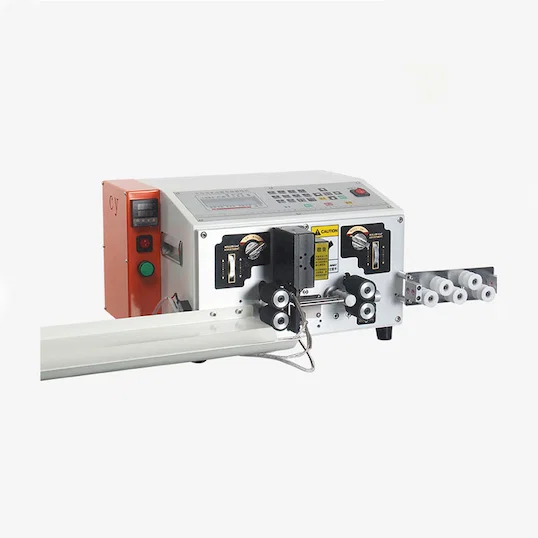

Automatic Nylon Braiding Cable Cutting & Stripping Machine WPM-0-4

nylon braiding cable cutting stripping machine WPM-0-4
Nylon Braiding Cable Cutting And Stripping Machine, Heating Stripping Machine, USB Cable Stripping Machine, Auto Strip Cutting Machine, Wire Stripping Machine
1. The machine adopted an LCD. Touch Screen display microcomputer control.
2. hybrid motor drive, Multi-function setting.
3. Humanized stop function lets you need to stop and emergency stop, without fuss.
4. Surface mesh design, timely heat dissipation, and prolonged the service life
5. Diameter 7.2mm of wire accept Eight wheels drive, High speed: more than 5000 pcs per hour

Name WPM-0-4 Automatic heating automatic nylon wire braided cable cutting and stripping remove the machine
Function heating cutting and stripping
Cutting Length 1-9999mm
Stripping Length Front: 30mm Back: 30mm
Voltage 220V/110V
Power Rate 400W
Cutting tolerance (0.2+/- 0.002 by L) mm
Cutting Stripping wire core section Max OD 0-5mm
Optimal stripped wire: PVC//silica gel line, Glass fiber cables, etc.
The blade material: hard tungsten steel
Output L = 100 mm, 3000 8000 PCS/h (high yield)
Weight 32KG
Dimension 420*390*280mm
