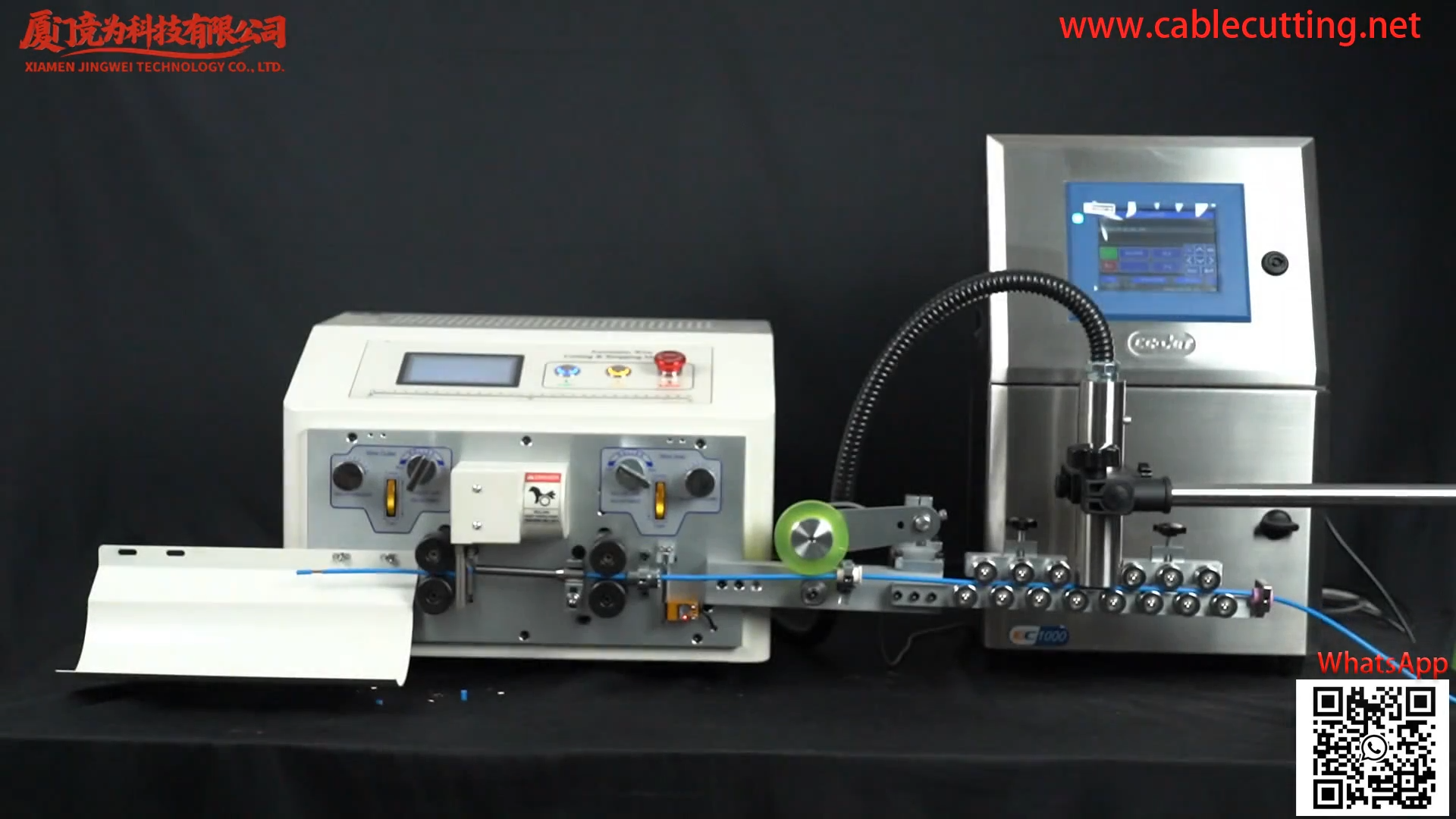

Wire Cut & Strip Machine With Ink-Jet Printer JW-WSCP

Wire Cut&Strip Machine With Ink-Jet Printer JW-WSCP

The JW-WSCP is an upgraded automatic wire cutting and stripping machine with an ink-jet printer, designed for high-demand professional wire processing. It integrates advanced hybrid stepper motor, mute driver and intelligent functions, supporting full/partial/multi-step stripping (max 13 steps) and one-stop wire cutting, stripping and marking.

Its innovative intelligent features include wire size intelligent measurement, automatic cutting length correction and STEP operation display, simplifying operation and training. Equipped with wire shortage detection (auto-stop and alarm), it ensures efficient and safe production.

Equipped with a hybrid stepper motor, integrated control board and mute subdivision driver, the JW-WSCP achieves precise cutting and stripping effects while maintaining ultra-low noise operation, effectively avoiding noise pollution in the workshop and creating a comfortable working environment. It supports multiple stripping modes, including full strip, partial strip and multi-step stripping, with a maximum of 13 stripping steps, which can flexibly meet the diverse processing needs of different wires.

Product Parameters

Item	Specification
Model	JW-WSCP
Function	Wire cutting, double-end stripping, middle stripping, inkjet marking
Wire Range	0.1-6mm² (AWG30-12)
Cutting Length	0.1mm-99999.9mm
Stripping Length	Head: 0.1-250mm; Tail: 0.1-70mm
Stripping Accuracy	0.01mm (Silent Hybrid Stepper Motor)
Intermediate Strip	16 steps (Customizable)
Working Capacity	3000-8000 pcs/h
Blade Material	Imported Tungsten Steel / High Speed Steel
Power Supply	AC110V/220V 50/60HZ
Dimension	470mm * 450mm * 350mm
Weight	31.5kg
Extra Functions	Automatic entry & exit, timing start, jog adjustment, wire shortage alarm
Customization	Support customized processing by providing samples

The blades of the machine are made of imported tungsten steel or high-speed steel, which has excellent wear resistance and service life, ensuring clean cutting without damaging the wire core. Featuring a compact structure, stable operation and strong durability, this wire processing machine supports customized processing for special production requirements. It greatly enhances operational convenience with humanized design and intelligent control system.

Widely used in electronics, electrical appliances, automotive wiring, new energy and other wire harness processing industries, the JW-WSCP integrates intelligence, efficiency and stability, helping enterprises reduce production costs and improve product quality.
