Automatic Wire Stripping Bending Cutting Machine WPM-09SB

Jacket Wire Cutting Stripping Bending Machine, Single Core Cable Bending Machine, Bending Wire Machine Cutting Machine

Automatic Wire Stripping Bending Cutting Machine WPM-09SB

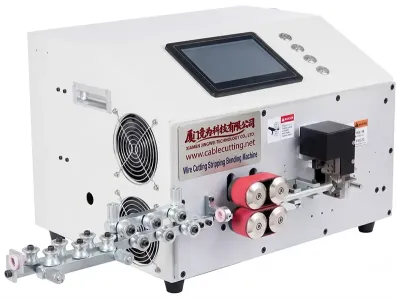

Automatic Wire Stripping Bending Cutting Machine
It can strip bend cut full automatically
An inexperienced user can operate it easily. Support full strip, half strip, and semi-strip. Installed 100 processing programs, no need to reset the program while changing product. Automatic out/inlet line, timing start, unique wire stripping stacking. A wire can be bent in positive and opposite directions at the same time.
.
Available Wire:
1.) Wire Jumper of electric control cabinet
2.) Reversible Wire Jumper of contactor
3.) Curved Wire of Ammeter
One-year warranty, lifetime maintenance
Specification of automatic 16mm2 wire stripping bending cutting machine

Processable Wire Size: AWG5 / 25mm2 max
Conduct Diameter:0.1-25mm2
Cutting Tolerance: 0.002×L mm (L: Cutting Length)
Strip Length: Wirehead 0.1-100mm
Cutting Length: 0.1mm-99999.9mm
Total Quantity:999999
Batch Quantity:99999
Stripping Speed:400-1000pcs per hour
Cutting Speed:0-9 adjustable
Blade Material: Hard Tungsten Steel
Drive Mode: Two Wheels Drives
Bending time: 13times
Bending Length: Last bending length of more than 55mm
Bending Method: Clockwise, Counter-clockwise, bending degree is adjustable, 30/45/60/90 degree, a wire can be bent in the positive and opposite direction at the same time.
Description of automatic Wire Stripper and bender for 16mm2 wire
Overall Size: 420mm x 345mm x 297mm
Machine Net Weight: 31KG
Power Consumption: 130W-200W
Power Supply: AC 175-235V/50/60Hz (other voltage required please tell us in advance)
Package: Standard Export Wooden Case
