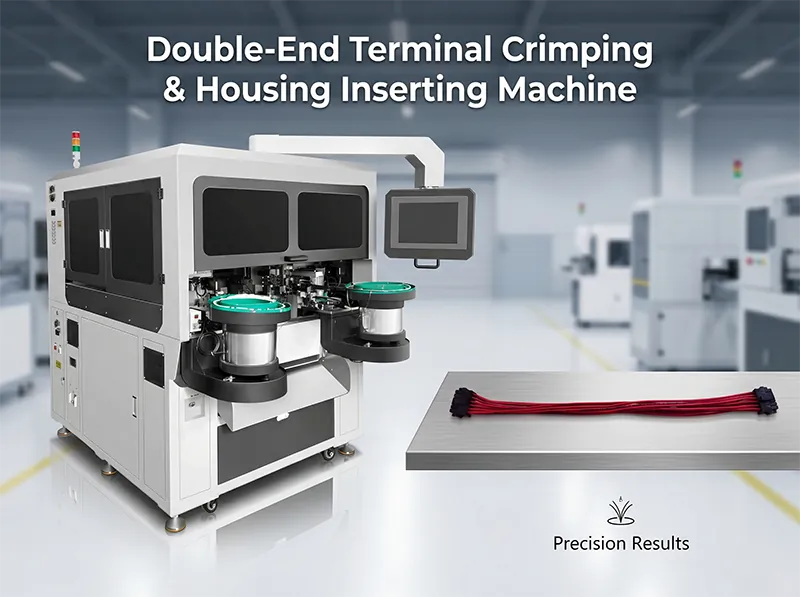

Double-End Terminal Crimping & Housing Inserting Machine JW-CK01

Double-End Terminal Crimping & Housing Inserting Machine JW-CK01

Product Introduction

The JW-CK01 Double-End Terminal Crimping & Housing Inserting Machine is a fully automatic integrated wire processing machine that integrates wire cutting, stripping, double-end terminal crimping and housing insertion in one operation. It is widely used in the production of precision wiring harnesses for new energy, home appliances, 3C electronics, connectors and automotive industries. With stable performance, high precision and easy operation, it effectively improves production efficiency and product consistency.

Technical Parameters

1. Model: JW-CK01 Double-End Terminal Crimping & Housing Inserting Machine

2. Display: 15-inch LCD touch screen

3. Control System: MCU control system

4. Capacity: Approx. 1,600–2,600 pcs/hour for 100 mm wire length (actual capacity depends on working conditions)

5. Applicable Wire Gauge: AWG30# – AWG16# (customizable for special requirements)

6. Processing Length: 90 mm – 900 mm (customizable for longer sizes)

7. Stripping Length: 0.1 mm – 14 mm (adjustable)

8. Cutting Accuracy: ±0.1 mm

9. Crimping Force: 1.5 tons (customizable for special needs)

10. Detection Devices: Visual inspection, wire absence detection, air pressure monitoring, paper collection, terminal shortage detection; pull force & pressure monitoring (optional)

11. Auxiliary Devices: Waste paper winding, wire scrap collection, tape cutting

12. Standard External Configurations: 8-axis tension pay-off stand, finished product conveyor

13. Power Supply: AC 220 V, 50 Hz (customizable)

14. Weight: Approx. 1,100 kg

15. Machine Dimensions: L 2200 mm × W 1800 mm × H 2200 mm

16. Installation Space: L 3200 mm × W 4000 mm × H 2200 mm

Standard Component List

Item	Component Name	Unit	Quantity
1	Ball Screws	set	15
2	Linear Guides	set	31
3	Air Pressure Regulator	set	2
4	Air Cylinders	pc	31
5	Solenoid Valves	pc	36
6	Air Filters	set	1
7	Air Pressure Detector	pc	1
8	Relays	pc	5
9	Air Tubes	set	1
10	Tube Fittings	set	1
11	Bearings	set	1
12	Vision System	set	1
13	Fiber Amplifier	pc	3
14	Touch Screen	pc	1
15	Servo Motors	pc	14
16	Servo Drives	pc	14
17	Stepper Drives	pc	2
18	Stepper Motors	pc	2
19	Pressure Management System	system	1

Notes

Specifications and configurations are subject to change without prior notice. The final configuration shall be subject to the formal sales contract.
