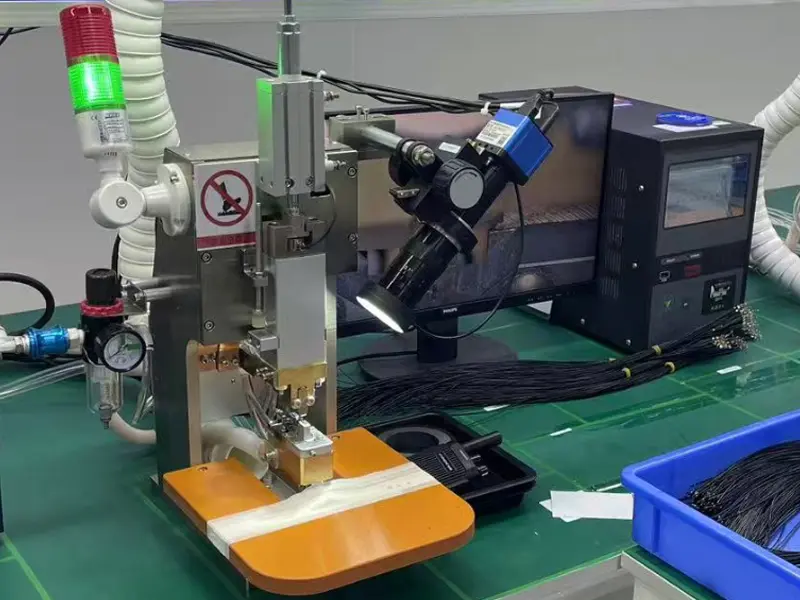

LCD Inverter DC Resistance Spot Welder JW-PULSE-3000
Model No. JW-PULSE-3000Price on request343 views
The JW-PULSE-3000 is a precision LCD inverter DC resistance spot welding power supply designed for high-quality, high-speed welding of delicate and non-ferrous materials. With its 4kHz inverter technology, 3000A maximum DC output, and intelligent MCU control, it offers 80x faster response than conventional AC welders. The system supports 20 programmable welding presets, three-stage heating profiles, and soft current ramp control for superior weld consistency and extended electrode life. RS-232 communication (optional) enables seamless integration with automated production lines.
Technical Specifications:
Key Selling Points:
• DC pulsating output with minimal ripple — no zero-crossing gaps, superior heat concentration
• MCU-based real-time monitoring of current, voltage, and power
• Soft-switching inverter bridge for reduced EMI and switching losses
• Three-stage heating with configurable current ramp-up/ramp-down
• 20 programmable parameter sets for rapid job changeover
• 240x128 LCD multi-parameter display
• EEPROM non-volatile memory — no battery required
• 4 kHz inverter frequency — 0.25ms control cycle (80x faster than AC)
• Comprehensive fault diagnostics: current anomaly, over-voltage, over-temperature
• Optional RS-232 for automation integration
Recommended Applications:
• Precision electronics assembly and PCB component welding

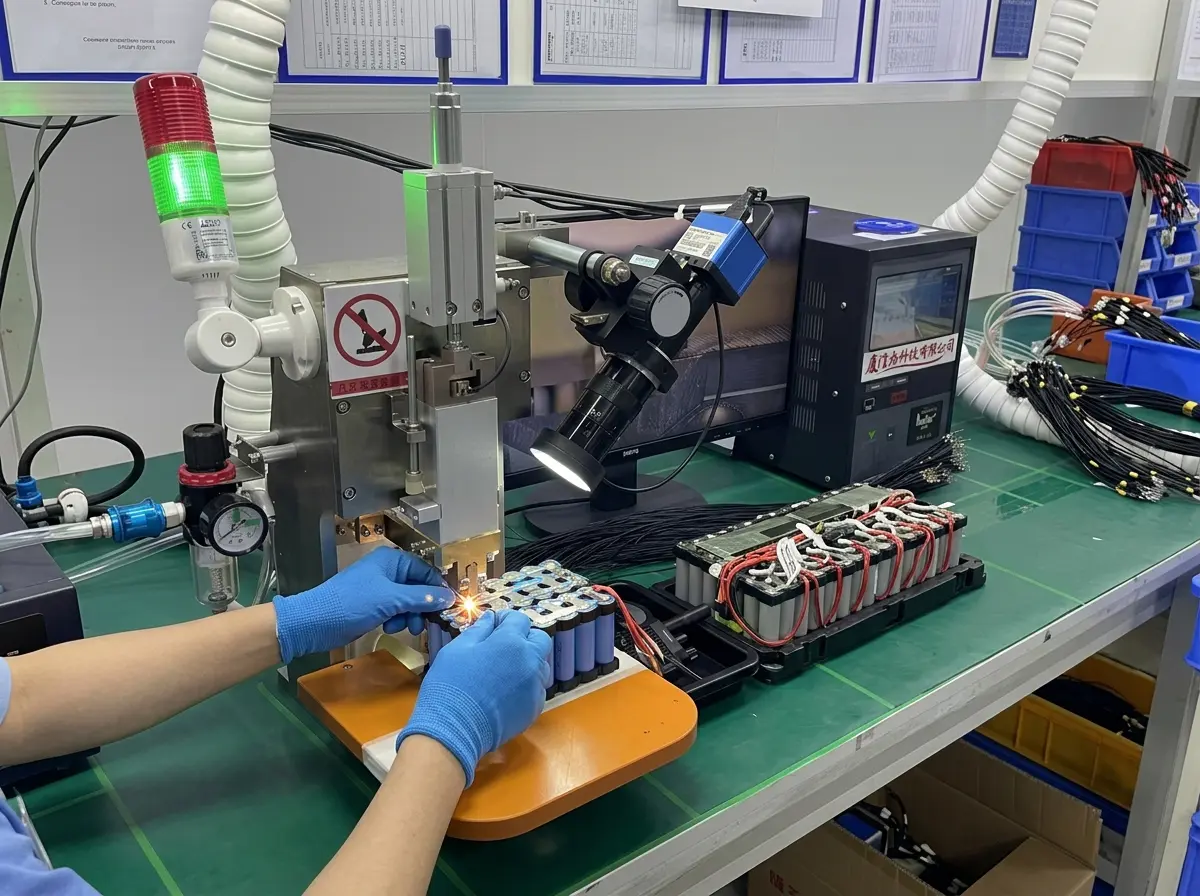

• Battery tab welding (lithium-ion, NiMH, NiCd cells)
• Non-ferrous metal spot welding (copper, aluminum, nickel)
• Wire harness and connector attachment
• Thin-sheet metal fabrication
• Automotive sensor and relay welding
Technical Specifications:
| Model | JW-PULSE-3000 |
| Input Voltage | 220V AC |
| Rated Power | 10 kVA |
| Max Output Current | 3000A DC |
| Control Mode | Constant Current / Voltage / Power / Fixed Pulse Width |
| Duty Cycle | 10% |
| Inverter Frequency | 4 kHz |
| Welding Cycle Periods | 11 |
| Welding Pulse Count | 3 |
| Current Ramp Control | Yes (Up/Down) |
| Stored Programs | 20 Sets |
| Display | 240 x 128 LCD |
| Communication | RS-232 (Optional) |
| Dimensions (L x W x H) | 435 x 185 x 320 mm |
| Weight | 22 / 24 kg |
Key Selling Points:
• DC pulsating output with minimal ripple — no zero-crossing gaps, superior heat concentration
• MCU-based real-time monitoring of current, voltage, and power
• Soft-switching inverter bridge for reduced EMI and switching losses
• Three-stage heating with configurable current ramp-up/ramp-down
• 20 programmable parameter sets for rapid job changeover
• 240x128 LCD multi-parameter display
• EEPROM non-volatile memory — no battery required
• 4 kHz inverter frequency — 0.25ms control cycle (80x faster than AC)
• Comprehensive fault diagnostics: current anomaly, over-voltage, over-temperature
• Optional RS-232 for automation integration
Recommended Applications:
• Precision electronics assembly and PCB component welding
• Battery tab welding (lithium-ion, NiMH, NiCd cells)
• Non-ferrous metal spot welding (copper, aluminum, nickel)
• Wire harness and connector attachment
• Thin-sheet metal fabrication
• Automotive sensor and relay welding
JW-PULSE 3000 — LCD Inverter DC Resistance Spot Welder
